Canon EOS C200B EF Cinema Camera

$160.00

7 Day

Rental

Arrival Date

Return Date

Pricing Chart

Shipping Rates

Interested in purchasing?

Includes

Canon EOS C200B EF
BP-A30 battery
Canon Mic Mount v2
CG-A20 charger
CA-A10 AC adapter
CA-CP200B AC adapter

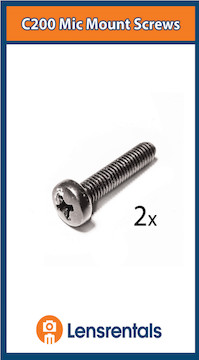

Mic mount hardware

Resources

Diagrams

Manual

Memory Card Compatibility List

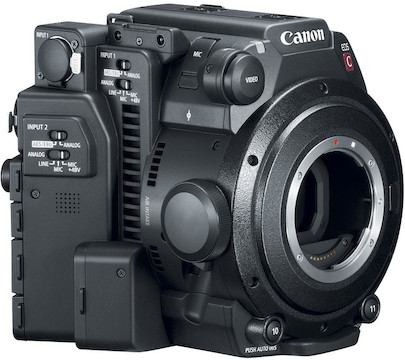

Canon EOS C200B EF Cinema Camera

The Canon C200B is a professional-grade digital cinema camera in Canon’s Cinema EOS lineup. It’s essentially a modified version of the EOS C200 EF that’s designed for gimbal use. Key features include:

8.85MP 4K DCI Super 35 CMOS sensor
12-bit/10-bit 4K RAW or 4:2:0 8-bit in 4K UHD/2K
Internal 4K RAW using Cfast or 4K UHD/HD using dual SDXC
C200 with a minimalist design for gimbals, drones, and jibs

LR's Take

In General

This box-like camera is essentially a C200 without the EVF making it easier to balance for gimbal work, but the regular C200 may work perfectly for you as is. We recommend calling us to determine w...

Q & A

Which external recorders will work with this camera?

At the moment, we can only recommend the Shogun Inferno. This is because when trying to record 4K at 60p, this camera won’t output the menu over HDMI.
The only work-around that we know of is to use the SDI to make your adjustments, and then switch back over to HDMI.
Other recorders will work if you use the C200 at 24p.

Are there any known third-party lens-compatibility issues with this camera?

If you have any questions or concerns regarding lens compatibility with this camera, please contact us at support@lensrentals.com | 901-754-9100.

Is this camera compatible with light-duty gimbals like the M5?

While a combination of skill, compact lenses, and/or extension arms may make it possible to accurately balance the C200 on gimbals designed for DSLR and Mirrorless systems, we only recommend flying this camera on larger gimbals like the Movi Pro.

Does this camera output 4K via SDI?

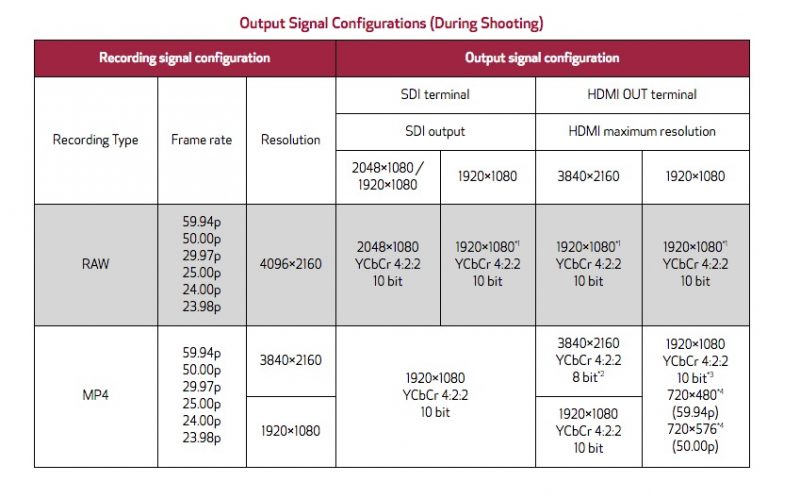

No. The C200 is not capable of outputting 4K video over SDI. Currently 4K output is limited to HDMI. For full output specs, click “diagrams” in the resources section of this page.

Can I change this camera’s codec?

You can’t change this camera’s codec. It’ll only record in RAW onto CFast cards, and in MP4 onto SD cards.

Is this the standard Canon EOS C200 Cinema Camera?

If you’re not shooting exclusively with a gimbal stabilizer, you’re probably looking for the Canon EOS C200 EF Cinema Camera.

Specifications

Brand	Canon
Camcorder Type	Cinema
Camera Type	Camcorder
Imaging	Sensor Type: CMOS Size: 24.6 × 13.8 Effective Pixels: 8.85 MP Maximum Resolution 4096 × 2160 Crop Factor Approximately x1.5 Bit Depth Raw: 10-bit/12-bit MP4/XF-AVC: 4:2:0 8-bit External 4:2:2 10-bit (additional recording device required) ISO Dynamic Range: Approximately 13 stops Default Sensitivity Range: 160-25,600 Expanded Sensitivity Range: 100-102,400 Native ISO: 800
Inputs/Outputs	Audio Inputs 2x XLR 3-pin MIC 3.5mm mini-jack Monaural mic Audio Output Headphone out 3.5mm mini-jack Video Outputs 3G/HD-SDI BNC HDMI Additional Inputs/Outputs USB: mini-B Remote: 2.5mm sub-mini jack Ethernet Video terminal (Canon unit control) Camera grip connection terminal (Canon proprietary)
Item Type	Camera and Cinema Cameras
Monitoring	Viewfinder None LCD Panel Not included Internal Microphone Monaural
Mount	Canon EF
Physical	Dimensions (WxHxD) 5.7” x 5.7” x 5.4” Weight Approximately 2.9 lbs. Accessory Mounts: Tripod:¼-20 & ⅜-16 Additional: ¼-20 compatible modular attachment points
Power Supply	AC Adapter CA-A10 Battery Type: BP-A30 (included)/BP-A60 (available as a separate rental item) Operating Time: Approximately 125 min (BP-A30)/270 min. (BP-A60) Recharge Time: Approximately 170 min. (BP-A30)/300 min. (BP-A60)
Recommended For	Pro Video
Recording	Media 1x Cfast 2.0 VPG-130 (RAW only) 2x SDXC (MP4/XF-AVC) Formats Video: RAW, MPEG-4 AVC/H.264 Audio: Linear PCM, MPEG-4 AAC-LC File: CRM, MP4, MXF Modes 1 Gbps (RAW): 4096×2160 10-bit (50p/59.94p)/12-bit (23.98p/24p/25p/29.97p) 160 Mbps (MXF): 3840×2160 (23.98p/24p/25p/29.97p/59.94p/50i) 45 Mbps (MXF): 1920×1080 (23.98p/24p/25p/29.97p/50p/59.94p/50i/59.94i) 150 Mbps (MP4): 3840×2160 (23.98p/24p/25p/29.97p/50p/59.94p) 35 Mbps (MP4): 1920×1080 (23.98p/24p/25p/29.97p/50p/59.94p) Approximate Record Times 1 Gbps: 0.12 Min/GB 160 Mbps: 0.82 Min/GB 150 Mbps: 0.86 Min/GB 45 Mbps: 2.93 Min/GB 35 Mbps: 3.79 Min/GB Special Recording Modes Slow Motion Recording (1920×1080 up to 120P) Pre-Recording Frame Recording Interval Recording

See All

Includes

Canon EOS C200B EF
BP-A30 battery
Canon Mic Mount v2
CG-A20 charger
CA-A10 AC adapter
CA-CP200B AC adapter
Mic mount hardware

Specifications

Brand	Canon
Camcorder Type	Cinema
Camera Type	Camcorder
Imaging	Sensor Type: CMOS Size: 24.6 × 13.8 Effective Pixels: 8.85 MP Maximum Resolution 4096 × 2160 Crop Factor Approximately x1.5 Bit Depth Raw: 10-bit/12-bit MP4/XF-AVC: 4:2:0 8-bit External 4:2:2 10-bit (additional recording device required) ISO Dynamic Range: Approximately 13 stops Default Sensitivity Range: 160-25,600 Expanded Sensitivity Range: 100-102,400 Native ISO: 800
Inputs/Outputs	Audio Inputs 2x XLR 3-pin MIC 3.5mm mini-jack Monaural mic Audio Output Headphone out 3.5mm mini-jack Video Outputs 3G/HD-SDI BNC HDMI Additional Inputs/Outputs USB: mini-B Remote: 2.5mm sub-mini jack Ethernet Video terminal (Canon unit control) Camera grip connection terminal (Canon proprietary)
Item Type	Camera and Cinema Cameras
Monitoring	Viewfinder None LCD Panel Not included Internal Microphone Monaural
Mount	Canon EF
Physical	Dimensions (WxHxD) 5.7” x 5.7” x 5.4” Weight Approximately 2.9 lbs. Accessory Mounts: Tripod:¼-20 & ⅜-16 Additional: ¼-20 compatible modular attachment points
Power Supply	AC Adapter CA-A10 Battery Type: BP-A30 (included)/BP-A60 (available as a separate rental item) Operating Time: Approximately 125 min (BP-A30)/270 min. (BP-A60) Recharge Time: Approximately 170 min. (BP-A30)/300 min. (BP-A60)
Recommended For	Pro Video
Recording	Media 1x Cfast 2.0 VPG-130 (RAW only) 2x SDXC (MP4/XF-AVC) Formats Video: RAW, MPEG-4 AVC/H.264 Audio: Linear PCM, MPEG-4 AAC-LC File: CRM, MP4, MXF Modes 1 Gbps (RAW): 4096×2160 10-bit (50p/59.94p)/12-bit (23.98p/24p/25p/29.97p) 160 Mbps (MXF): 3840×2160 (23.98p/24p/25p/29.97p/59.94p/50i) 45 Mbps (MXF): 1920×1080 (23.98p/24p/25p/29.97p/50p/59.94p/50i/59.94i) 150 Mbps (MP4): 3840×2160 (23.98p/24p/25p/29.97p/50p/59.94p) 35 Mbps (MP4): 1920×1080 (23.98p/24p/25p/29.97p/50p/59.94p) Approximate Record Times 1 Gbps: 0.12 Min/GB 160 Mbps: 0.82 Min/GB 150 Mbps: 0.86 Min/GB 45 Mbps: 2.93 Min/GB 35 Mbps: 3.79 Min/GB Special Recording Modes Slow Motion Recording (1920×1080 up to 120P) Pre-Recording Frame Recording Interval Recording

See All

Resources

Diagrams

Manual

Memory Card Compatibility List

Reviews

See Reviews

Rental Period	Lenscap+	Rental Price	Total Price	Price Per Day (Approx.)
3 days	$21.00	$112.00	$133.00	$44.33
4 days	$23.00	$120.00	$143.00	$35.75
7 days	$30.00	$160.00	$190.00	$27.14
10 days	$41.00	$216.00	$257.00	$25.70
14 days	$53.00	$280.00	$333.00	$23.79
21 days	$71.00	$376.00	$447.00	$21.29
30 days	$89.00	$472.00	$561.00	$18.70
45 days	$116.00	$616.00	$732.00	$16.27
60 days	$135.00	$720.00	$855.00	$14.25
90 days	$174.00	$928.00	$1102.00	$12.24

Rental Period	Lenscap	Rental Price	Total Price	Price Per Day (Approx.)
3 days	$14.00	$112.00	$126.00	$42.00
4 days	$15.00	$120.00	$135.00	$33.75
7 days	$20.00	$160.00	$180.00	$25.71
10 days	$27.00	$216.00	$243.00	$24.30
14 days	$35.00	$280.00	$315.00	$22.50
21 days	$47.00	$376.00	$423.00	$20.14
30 days	$59.00	$472.00	$531.00	$17.70
45 days	$77.00	$616.00	$693.00	$15.40
60 days	$90.00	$720.00	$810.00	$13.50
90 days	$116.00	$928.00	$1044.00	$11.60

Rental Period	Rental Price	Price Per Day (Approx.)
3 days	$112.00	$37.33
4 days	$120.00	$30.00
7 days	$160.00	$22.86
10 days	$216.00	$21.60
14 days	$280.00	$20.00
21 days	$376.00	$17.90
30 days	$472.00	$15.73
45 days	$616.00	$13.69
60 days	$720.00	$12.00
90 days	$928.00	$10.31
