The Panasonic AG-AF100A HD interchangeable-lens camcorder provides all the tools you want in a professional camera: manual video and audio control, variable frame rates, HD-SDI and HDMI output, XLR inputs, timecode, internal ND filter, waveform and vectorscope display, and a large EVF. But it images on a large, 4/3-type image sensor. At 17mm X 13mm it’s 4 times larger than the 2/3" chips found in cameras costing more than twice as much. And it’s designed from the start to use interchangeable SLR lenses. So in theory it provides the best of both worlds: the large sensor of an SLR with all of the tools and connectivity of a pro video camera.
The AG-AF100A series has inherited and further advanced the acclaimed functions of the VariCam, which is widely used in producing movies, TV programs and TV commercials. The new Variable Frame Rate (VFR) function supports full-HD (1920 × 1080) progressive mode. Armed with a 20-step undercrank (lower frame rate)/overcrank (higher frame rate) function, the AG-AF100 series is capable of producing cinematic images such as a 1/2.5x slow-motion effect and 2x fast motion effect when played in 24p mode. The AG-AF100A also offers uncompressed 4:2:2 8-bit via the HD-SDI port. The camcorder features two SDXC memory card slots allowing ample storage space via SDXC memory cards (not included). Other notable features are zebra and color bar options to aid in shooting, and built-in 1/4, 1/16, and 1/64 ND filtration.

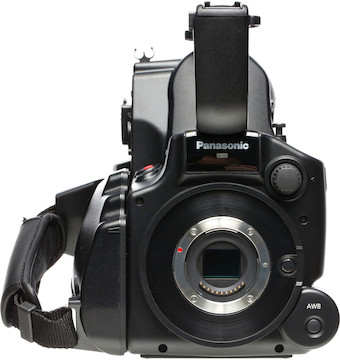

Any Micro 4/3 mount lens will mount directly to the camera. Only “Panasonic” brand Micro 4/3 lenses will autofocus. The key word is Micro.
If you want to use a different lens than a Micro 4/3 lens you will need an adapter. We stock Micro 4/3 adapters that will allow you to mount Olympus standard 4/3, Leica M, Canon, and Nikon lenses to the camera.
A note about Olympus 4/3 lenses with the AF-100A We recently tested two copies of the same lens on the AF-100. One allowed iris control through the camera, one did not. “The lens that doesn’t have iris control must need a firmware update” was our first thought, until we performed the firmware update and were still unable to get the lens to communicate with the camcorder. The point being; we can’t guarantee any Olympus 4/3 lens will communicate with the AF-100. Furthermore, with the wide array of lenses available for use on the AF-100, we wouldn’t recommend Olympus 4/3 lenses anyway. (This only applies to 4/3 lenses, Olympus micro 4/3 lenses will work fine.)
- Native Lens Mount
- Micro 4/3
- (1) 4/3 (17 X 13mm) sensor
- Recording Media
- SD/SDHC/SDXC cards, Class 6 or better recommended
- Record Time (approximate per 1GB)
- 5.6 min (PH mode) to 22 min. (HE mode)
- Recording Format
- AVCHD Compliant (MPEG-4 AVC/H.264) @ 21Mbps (max)
- 1920×1080, 1280x 720, 720x 480.
- Frame Rates
- 12p, 15p, 18p, 20p, 21p, 22p, 24p, 25p, 26p, 27p, 28p, 30p, 32p, 34p, 36p, 40p, 44p, 48p, 54p, 60p
- Battery Life (approximate)
- 3 hrs.
- 2.9 pounds
- BNC (x1 Output)
- HDMI Type A (x1 Output)
- RCA (x1 Output)
- XLR +48V (x2 Input)
- Audio L/R
- RCAx2 (x1 Output)
- 3.5mm Mini Jack (x1 Output)
- Type B Mini v2.0 (x1)
- Super Mini Jack (x1 Input)
- Camera (NO LENS IS INCLUDED)
- Battery (CGA-E/625)
- Battery Charger w/ cord
- DC Power Cable
LensRentals.com offers rentals ranging in length from 1 to 90 days. The shopping cart will automatically update the quoted price as you adjust the length of your rental. Our most common rental periods are shown below:
|Rental Period||Lenscap+||Rental Price||Total Price||Approximate Day Rate|
|Rental Period||Lenscap||Rental Price||Total Price||Approximate Day Rate|
|Rental Period||Rental Price||Approximate Day Rate|
LensRentals.com ships via the appropriate FedEx service necessary to have your rental arrive on the date selected. Return shipping is included in the shipping price, and we include a prepaid return label with your order - all you need to do is bring it to a FedEx drop-off location when your rental is complete. If you prefer UPS shipping, you can select it during the checkout process for about 10% more.
Shipping round trip to
- FedEx 2Day
- Calculating Shipping
- FedEx Standard Overnight
- Calculating Shipping
The shopping cart can automatically quote shipping, even for multi-item and oversize orders. Shipping multiple items together offers a significant savings over shipping them individually.
