Atomos Sumo19M 19-inch HDR Monitor w/ V-Mount

$195.00

7 Day

Rental

Available Tomorrow

Renting this item will adjust your rental dates.

Arrival Date

Return Date

Pricing Chart

Shipping Rates

Interested in purchasing?

Includes

Atomos Sumo19M Monitor
BattWing mounting bracket
(2) V-Mount battery plates

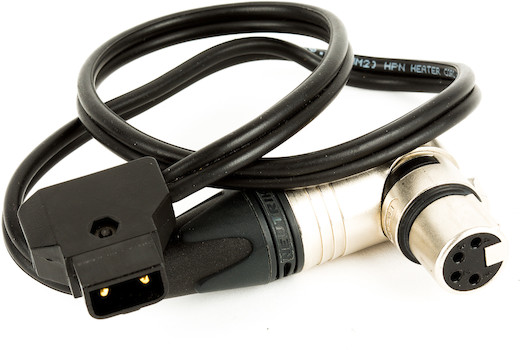

(2) 20" D-Tap to XLR4 cables

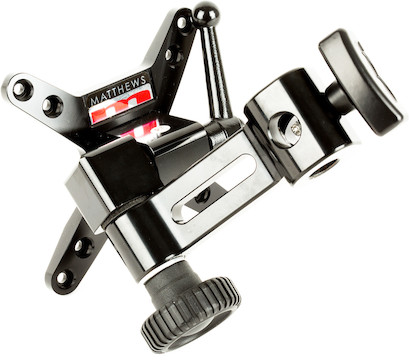

Matthews monitor mount
(2) Desktop feet

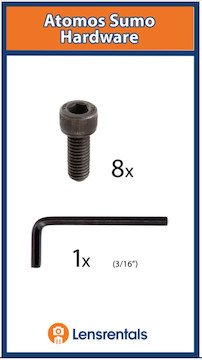

Hardware kit

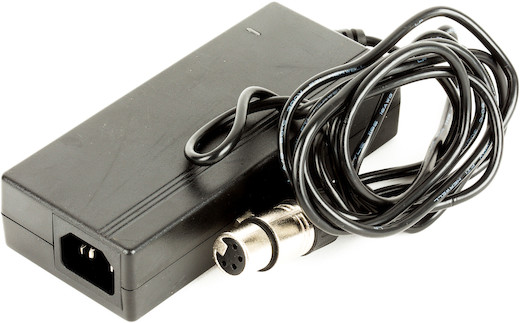

AC Power supply
Atomos 19" Sunhood
Hard case w/custom insert

*Batteries not included!

Resources

User Manual

Tech Guide

Atomos Sumo19M 19-inch HDR Monitor w/ V-Mount

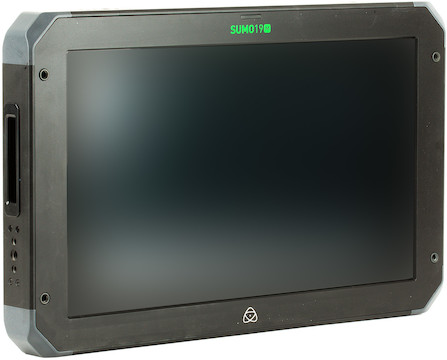

The Atomos Sumo19M 19-inch HDR Monitor is a large format, HDR-capable, v-mount ready production monitor. Alternatively, we also rent the Sumo 19 Monitor Recorder. Key features include:

HDR Mode with 10-stop dynamic range
10-bit, 1920 × 1080 touchscreen display
4K HDMI and 12G-SDI inputs/outputs
V-Mount ready

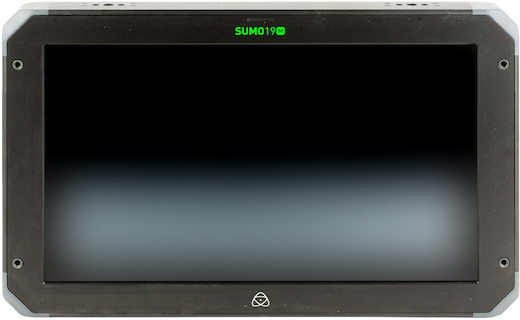

AtomHDR Display. The Atomos Sumo’s 19-inch 1920 × 1080 LCD monitor features a wide 10-stop dynamic range and a 10-bit signal processor, making it capable of mapping log footage, PQ, and HLG video feeds from popular cameras, game consoles, and TV manufacturers into vibrant HDR in real time. It produces bright, vivid images, even when outputting to a larger HDR/REC. 709 display, and it’s compatible with many popular editing programs and grading suites.

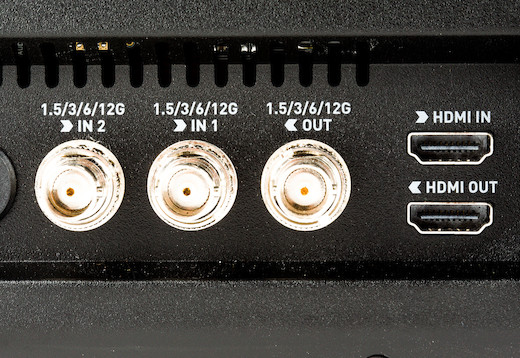

HDMI and SDI Interfaces. The Sumo19M offers full-size HDMI and SDI input and output ports, so that you can easily connect and convert among any combination of HDMI 2.0 and SDI (Quad 3G/6G/12G). This monitor accepts up to 4K at up to 60 fps, or HD at up to 240 fps over HDMI or the dual SDI inputs. The user interface boasts dedicated input-selection buttons that let you quickly make A/B comparisons between sources, and you get simultaneous HDMI and SDI output for routing to other monitors, recorders, or switchers.

Daylight-Viewable Screen. By taking advantage its full 1200 cd/m² brightness, you can use the Sumo19M in the brightest of outdoor environments without requiring a hood. However, if the need arises we include one with the rental.

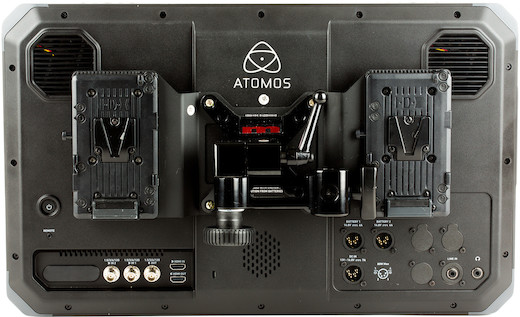

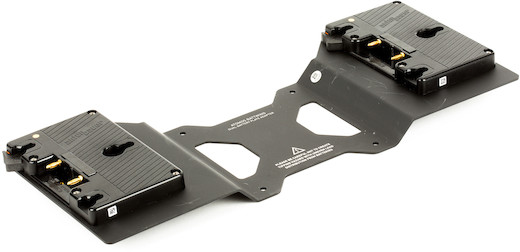

V-Mount. This version of the Atomos Sumo19M includes two Anton Bauer V-Mount battery plates. To help keep cost down and give you the most flexibility, we don’t include any V-Mount batteries or chargers with the rental. However, we do have a variety to choose from that are available to rent separately.

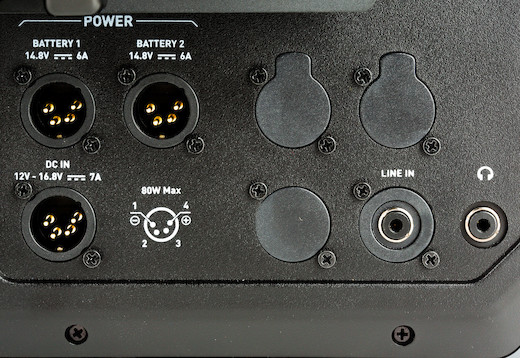

Constant Power. You get two 4-pin XLR inputs for power, so that the Sumo19M can automatically switch power sources if one stops providing power. You can also use the separate power bracket to use hot-swappable V-Mount batteries in the field.

Versatile Use. The Sumo19M is essentially a jack-of-all trades, whether that’s out in the field on a DIT cart, setup as a 1st AC monitor / Director’s monitor, or in the studio for the editing workflow. Whatever your needs, there’s a good chance it will excel. We include the standard desktop feet for tabletop use, as well as a Matthews VESA Monitor Mount for use on a C-stand (not included).

Q & A

What do I use to hold this big monitor?

We offer a few solutions for this issue. The first one is a mobile work station we’ve put together for shoots where you’re going to be moving around frequently on set and don’t want to continuously need to pick up and move a heavy monitor and stand combo. The Inovativ Voyager 36 EVO Equipment Cart Premium Kit gives you everything you need to make this happen.
Alternatively, if you’re going to be stationary most of the time, check out our Avenger 7.3ft Turtle Base C-Stand Twin Kit or the Kupo 6.7-foot Low Mighty Combo Stand for a rock-solid platform on which to mount this monitor.
If you have questions or need help with your setup, please contact us and one of our production experts can get you pointed in the right direction.

Does this rental include HDMI or SDI cables?

This rental doesn’t include any HDMI or SDI cables. You can find our cables here. If you’re unsure about which cord is right for your application, please contact us for verification.

This thing previews multiple simultaneous video inputs, right?

No! As far as we know Atomos has no plans to bring multi-input support to the 19M. If you need that feature, checkout the Sumo.

Does this monitor offer recording capabilities?

No! The Atomos Sumo19M is just a monitor. If you need recording capability, you’ll want the Atomos Sumo 19-inch HDR Monitor Recorder w/ V-Mount.

Do you offer a version of this monitor with Gold Mount compatibility?

Yes! For more information, please click here.

How is this monitor powered?

This version of the Atomos Sumo19M includes two Anton Bauer V-Mount battery plates. To help keep cost down and give you the most flexibility, we do not include any V-Mount batteries or chargers with the rental. However, we do have a variety to choose from that are available to rent separately.
If you don’t need battery power, a standard AC power adapter is included with every Sumo19M rental.

Specifications

Brand	Atomos
Display	Screen Size 19” Resolution 1920 × 1200 Pixel Density 120 PPI Bit Depth 10-bit (8+2 FRC) Brightness 1200 nits
Inputs/Outputs	Audio Inputs 1x 3.5mm, line input Audio Outputs 1x 3.5mm, stereo headphone Video Inputs 1x HDMI 2x BNC, HD/3G/6G/12G-SDI Video Outputs 1x HDMI 1x BNC, HD/3G/6G/12G-SDI HDMI/SDI Input/Output Formats 4096 × 2160 24/25/30/50/60 3840 × 2160 24/25/30/50/60 1080p 24/25/30/50/60/100/120 1080i 50/60 720p: 50/60
Item Type	Monitoring and Production Monitors
LUT Support	3D LUT (.cube file format)
Monitoring Type	Monitor

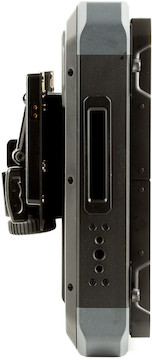

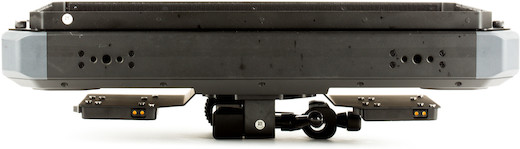

Physical	Measurements 12.2 × 19.8 × 2.5” (without stand), 13 × 19.8 × 7.1” (with stand) 11.8 lbs. (without stand), 13 lbs. (with stand) Accessory Mounts 1/4"-20: (4) top, (4) bottom, (2) side 3/8”-16:(2) top, (2) bottom, (1) side VESA mount on rear
Voltage	14.4 VDC

Includes

Atomos Sumo19M Monitor
BattWing mounting bracket
(2) V-Mount battery plates
(2) 20" D-Tap to XLR4 cables
Matthews monitor mount
(2) Desktop feet
Hardware kit
AC Power supply
Atomos 19" Sunhood
Hard case w/custom insert

*Batteries not included!

Specifications

Brand	Atomos
Display	Screen Size 19” Resolution 1920 × 1200 Pixel Density 120 PPI Bit Depth 10-bit (8+2 FRC) Brightness 1200 nits
Inputs/Outputs	Audio Inputs 1x 3.5mm, line input Audio Outputs 1x 3.5mm, stereo headphone Video Inputs 1x HDMI 2x BNC, HD/3G/6G/12G-SDI Video Outputs 1x HDMI 1x BNC, HD/3G/6G/12G-SDI HDMI/SDI Input/Output Formats 4096 × 2160 24/25/30/50/60 3840 × 2160 24/25/30/50/60 1080p 24/25/30/50/60/100/120 1080i 50/60 720p: 50/60
Item Type	Monitoring and Production Monitors
LUT Support	3D LUT (.cube file format)
Monitoring Type	Monitor
Physical	Measurements 12.2 × 19.8 × 2.5” (without stand), 13 × 19.8 × 7.1” (with stand) 11.8 lbs. (without stand), 13 lbs. (with stand) Accessory Mounts 1/4"-20: (4) top, (4) bottom, (2) side 3/8”-16:(2) top, (2) bottom, (1) side VESA mount on rear
Voltage	14.4 VDC

Resources

User Manual

Tech Guide

Reviews

See Reviews

Rental Period	Lenscap+	Rental Price	Total Price	Price Per Day (Approx.)
3 days	$27.00	$144.00	$171.00	$57.00
4 days	$29.00	$153.00	$182.00	$45.50
7 days	$39.00	$195.00	$234.00	$33.43
10 days	$53.00	$255.00	$308.00	$30.80
14 days	$68.00	$323.00	$391.00	$27.93
21 days	$92.00	$425.00	$517.00	$24.62
30 days	$115.00	$527.00	$642.00	$21.40
45 days	$150.00	$680.00	$830.00	$18.44
60 days	$176.00	$790.00	$966.00	$16.10
90 days	$226.00	$1011.00	$1237.00	$13.74

Rental Period	Lenscap	Rental Price	Total Price	Price Per Day (Approx.)
3 days	$18.00	$144.00	$162.00	$54.00
4 days	$20.00	$153.00	$173.00	$43.25
7 days	$26.00	$195.00	$221.00	$31.57
10 days	$35.00	$255.00	$290.00	$29.00
14 days	$46.00	$323.00	$369.00	$26.36
21 days	$61.00	$425.00	$486.00	$23.14
30 days	$77.00	$527.00	$604.00	$20.13
45 days	$100.00	$680.00	$780.00	$17.33
60 days	$117.00	$790.00	$907.00	$15.12
90 days	$151.00	$1011.00	$1162.00	$12.91

Rental Period	Rental Price	Price Per Day (Approx.)
3 days	$144.00	$48.00
4 days	$153.00	$38.25
7 days	$195.00	$27.86
10 days	$255.00	$25.50
14 days	$323.00	$23.07
21 days	$425.00	$20.24
30 days	$527.00	$17.57
45 days	$680.00	$15.11
60 days	$790.00	$13.17
90 days	$1011.00	$11.23
