Atomos Sumo 19-inch HDR Monitor Recorder w/ V-Mount

$195.00
/
7 Day

Rental

Interested in purchasing?

Includes

  • Atomos Sumo Monitor/Recorder
  • (4) Drive Caddy
  • BattWing mounting bracket
  • (2) V-Mount battery plates
  • (2) 20" D-Tap to XLR4 cables
  • Matthews monitor mount
  • (2) Desktop feet

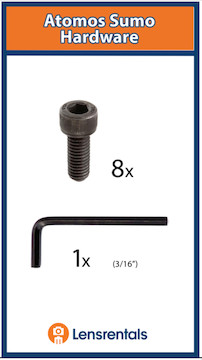

  • Hardware kit
  • AC Power supply
  • Atomos 19" Sunhood
  • Hard case w/custom insert

Atomos Sumo 19-inch HDR Monitor Recorder w/ V-Mount

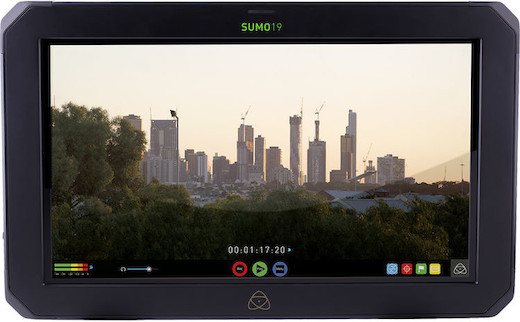

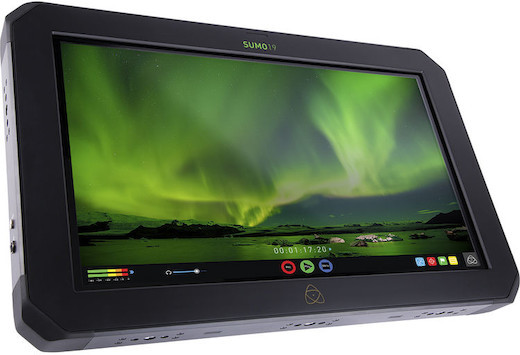

The Atomos Sumo 19-inch HDR is a large, 19” touchscreen production monitor with an integrated single channel 4K recorder or 4x ISO HD recorder and switcher. This version comes ready to accept V-Mount batteries (not included). Key features include:

  • 19” 1920 × 1200 touchscreen HDR display

  • Records single channel 4K up to 60 fps or 1080 up to 240 fps

  • Switches and records up to 4x HD ISO SDI inputs and program out

  • Sun hood, stand mount adapter, desktop feet, and battery plate included

Read More

Q & A

  • Does the Atomos Sumo support switching?
    • Yes! Sumo recorders running firmware version 9.2 or newer are capable of switching and recording up to four 1080p60 SDI inputs as well as recording your program output for a live edit. Please note, all camera inputs must have the same resolution and frame rate and there is little to no support for transitions and effects.

  • What do I use to hold this big monitor?
    • We offer a few solutions for this issue. The first one is a mobile work station we’ve put together for shoots where you’re going to be moving around frequently on set and don’t want to continuously need to pick up and move a heavy monitor and stand combo. The Inovativ Scout 37 EVO Equipment Cart Premium Kit gives you everything you need to make this happen.

    • Alternatively, if you’re going to be stationary most of the time, check out our Avenger 7.3ft Turtle Base C-Stand Twin Kit or the Kupo 6.7-foot Low Mighty Combo Stand for a rock-solid platform on which to mount this monitor.

    • If you have questions or need help with your setup, please contact us and one of our production experts can get you pointed in the right direction.

  • Does this rental include HDMI or SDI cables?
    • This rental doesn’t include any HDMI or SDI cables. You can find our cables here. If you’re unsure about which cord is right for your application, please contact us for verification.

  • Need Gold Mount battery capability?
  • How is this powered?
    • This version of the Atomos Sumo includes two V-Mount battery plates. To help keep costs down and give you the most flexibility, we don’t include any V-Mount batteries or chargers with the rental. However, we do have a variety to choose from that are available to rent separately.

    • If you don’t need battery power, a standard AC power adapter is included with every Sumo rental.

  • Does this rental include an SSD?
    • This rental doesn’t include an SSD, but they’re available as separate rental items. You can see some options under Recommended on the left-hand side of this page.

    • This rental includes four empty Atomos Master Caddy II units for populating with a 2.5-inch SSD drive of your choice.

  • Specifications

    Audio Type

    Switching

    Brand

    Atomos

    Display

    Screen Size

    • 19”
    Resolution
    • 1920 × 1200
    Pixel Density
    • 120 PPI
    Bit Depth
    • 10-bit (8+2 FRC)
    Brightness
    • 1200 nits

    Dynamic Range

    > 90 dB

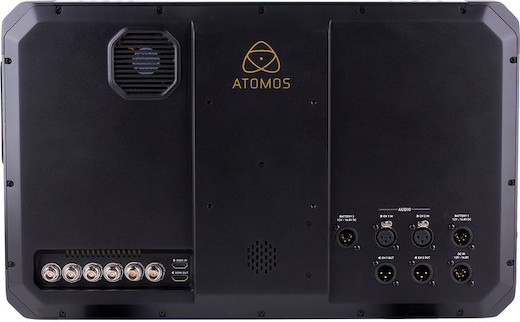

    Inputs/Outputs

    Audio Inputs

    • (2) XLR, balanced analog audio with 48 V phantom power
    Audio Output
    • (1) 3.5 mm, stereo headphone
    Video Outputs
    • (1) HDMI Type A, v2.0
    • (1) BNC, HD/3G/6G/12G-SDI
    Additional Inputs/Outputs
    • (1) HDMI Type A, v2.0
    • (3) BNC, HD/3G-SDI
    • (1) BNC, HD/3G/6G/12G-SDI
    HDMI/SDI Input/Output Formats
    • 4096 × 2160 24/25/30/50/60
    • 3840 × 2160 24/25/30/50/60
    • 1080p 24/25/30/50/60/100/120
    • 1080i 50/60
    • 720p: 50/60

    Item Type

    Monitoring, Recorder, Switcher, Recorders, and Production Monitors

    LUT Support

    3D LUT (.cube file format)

    Memory Type

    4K: 2.5" SSD; HD High Frame Rate (50/60/120p): 2.5" SSD; 2.5" HDD (7200 rpm and up) for 1080p 50/60; HD (30p and less): 2.5" SSD; 2.5" HDD (5400 rpm and up)

    See All

    Includes

    • Atomos Sumo Monitor/Recorder
    • (4) Drive Caddy
    • BattWing mounting bracket
    • (2) V-Mount battery plates
    • (2) 20" D-Tap to XLR4 cables
    • Matthews monitor mount
    • (2) Desktop feet
    • Hardware kit
    • AC Power supply
    • Atomos 19" Sunhood
    • Hard case w/custom insert

    Specifications

    Audio Type

    Switching

    Brand

    Atomos

    Display

    Screen Size

    • 19”
    Resolution
    • 1920 × 1200
    Pixel Density
    • 120 PPI
    Bit Depth
    • 10-bit (8+2 FRC)
    Brightness
    • 1200 nits

    Dynamic Range

    > 90 dB

    Inputs/Outputs

    Audio Inputs

    • (2) XLR, balanced analog audio with 48 V phantom power
    Audio Output
    • (1) 3.5 mm, stereo headphone
    Video Outputs
    • (1) HDMI Type A, v2.0
    • (1) BNC, HD/3G/6G/12G-SDI
    Additional Inputs/Outputs
    • (1) HDMI Type A, v2.0
    • (3) BNC, HD/3G-SDI
    • (1) BNC, HD/3G/6G/12G-SDI
    HDMI/SDI Input/Output Formats
    • 4096 × 2160 24/25/30/50/60
    • 3840 × 2160 24/25/30/50/60
    • 1080p 24/25/30/50/60/100/120
    • 1080i 50/60
    • 720p: 50/60

    Item Type

    Monitoring, Recorder, Switcher, Recorders, and Production Monitors

    LUT Support

    3D LUT (.cube file format)

    Memory Type

    4K: 2.5" SSD; HD High Frame Rate (50/60/120p): 2.5" SSD; 2.5" HDD (7200 rpm and up) for 1080p 50/60; HD (30p and less): 2.5" SSD; 2.5" HDD (5400 rpm and up)

    See All

    Reviews

    See Reviews
