Sharpness Tests of the Sigma 14mm f/1.8 DG HSM Art

We’ve had a number of fun, new lenses to test this summer and one I was pretty eager to get to was the Sigma 14mm f/1.8 Art, for a couple of reasons. First of all, it’s a 14mm lens that has a wider aperture than f/2.8, and that’s certainly interesting. Second, it’s a new Sigma Art prime lens, and those have been spectacular. So I begged and threatened and got the first ten copies for some bench testing before they went in stock.

As always, these are optical bench tests, so take them for what they’re worth. It is not a lens review because I don’t review lenses. That’s what photographers do. I test them, because, well, I’m a tester. Test results should tell you if the lens is worth consideration and further investigation, not that you should run out and buy it. I don’t make any suggestions about what you should run out and buy because I have no idea how you shoot or what’s important to you. But if the resolution is important to you, then read on.

As always, these are the results of 10 tested copies; each tested at four rotations with 84 data points.  For those who don’t speak MTF, the easy version is higher is better, and dotted and solid lines of the same color close together are better.

MTF Tests

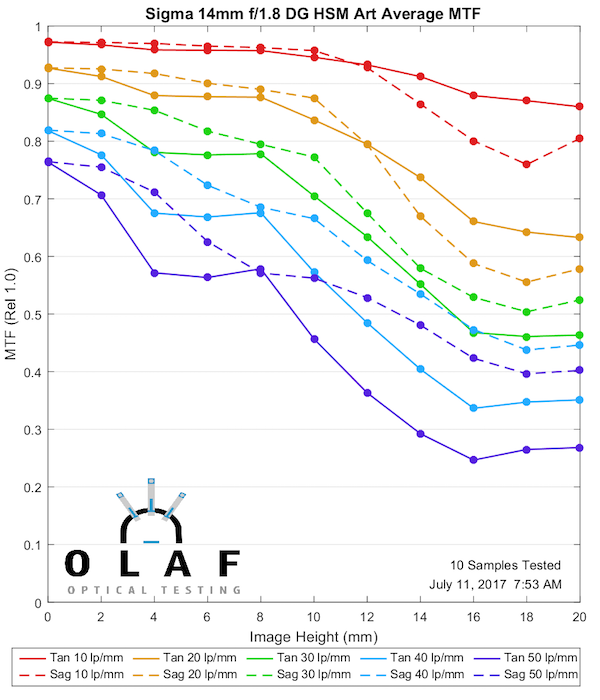

I was curious about how well the Sigma 14mm f/1.8 Art lens would perform at f/1.8. Sigma has an excellent track record with the Art Primes, but there are good reasons other manufacturers are limiting themselves to f/2.8 apertures at wide angles. But the performance wide open is impressive — this is sharp even wide open, even at high resolutions (blue and purple lines), and even at the edges.

Olaf Optical Testing, 2017

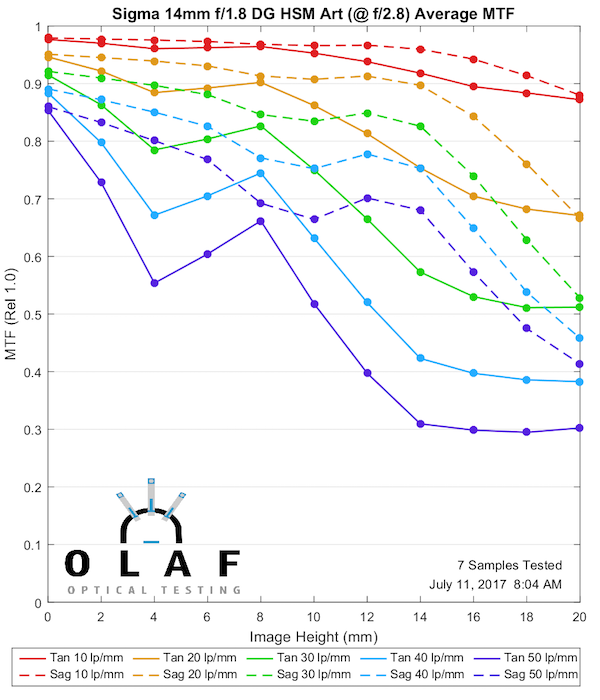

As most of you know, I usually don’t test stopped down, but I did this time. Partly because I am aware, despite my begging and pleading, that Fanboys LOVE to take the wider aperture MTF and compare it to the narrower aperture MTF of a competitor’s lens. That’s especially true in this case where the competitors don’t reach f/1.8. So here is a set of Sigma’s at f/2.8. (I only tested the first seven at f/2.8, because, as William Gibson said, time be mos’ precious, mon).

Olaf Optical Testing, 2017



Two things you’ll notice. First, this lens is getting scary good in the center at f/2.8.

The second is Roger’s 12th Law: Stopping down doesn’t make everything better everywhere. (OK, actually this is because some aberrations improve a lot, some a little, and some not at all when you stop down. But since most of y’all hate math, I just decided to skip the math stuff.) This is true of all lenses; you just don’t see it often because I don’t do stop-down tests often.

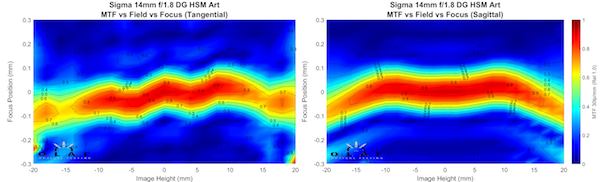

As long as we’re testing things, I probably should show you the field of focus, since that gets, well, interesting on wide-angle lenses sometimes. This isn’t sometimes; this is a very flat field with just a slight curve. A lovely, fairly flat, boring field of focus curve.

Olaf Optical Testing, 2017



Some Comparisons

I’m making the comparisons at f/2.8 to try to even the playing field as much as possible.

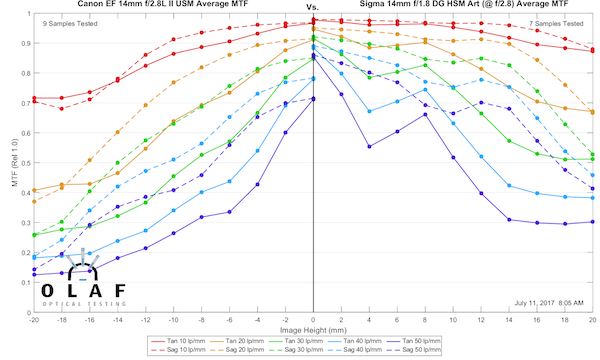

Sigma 14mm f/1.8 Art vs Canon 14mm f/2.8 L

The obvious comparison is to the Canon 14mm f/2.8 L lens since they’re both 14mm primes and all. The Canon is a significantly older design, and that shows, the Sigma is clearly better everywhere.



Olaf Optical Testing, 2017

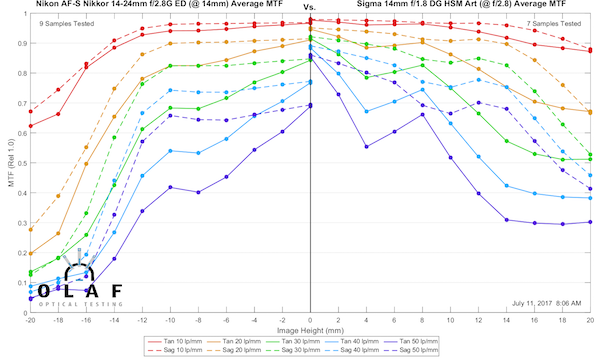

Sigma 14mm f/1.8 Art vs Nikon 14-24mm f/2.8

The Nikon has been the gold standard of wide-angle zooms for a long time, so this is a good comparison. We’d expect the Sigma to be better, it’s a much newer design and a prime lens, and that is indeed the case. The Nikon is still a very impressive zoom, though.

Olaf Optical Testing, 2017

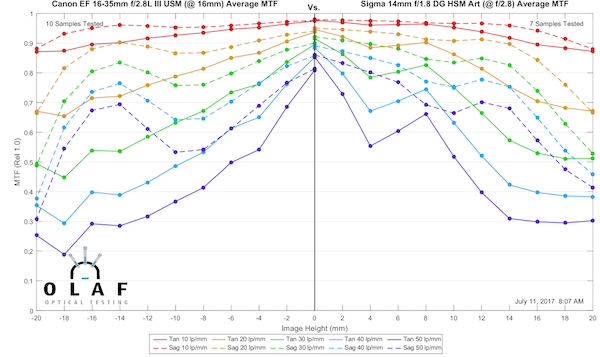

Sigma 14mm f/1.8 Art vs Canon 16-35 f/2.8 Mk III at 16mm

I won’t bore you with lots of zoom comparisons, and this one isn’t really fair; 14mm is a lot wider than 16mm and zooms aren’t supposed to be as good as primes. But the Canon is the current wide-angle zoom champion, as good as it gets at 16mm, so I thought it was worth a look. I think this is so close that sample variation would be larger than this average difference everywhere except right in the center where the Sigma is better at high frequencies. So, Canon shooters can choose between the zoom that is amazing at f/2.8. Or, the prime that is a wider angle and wider aperture f/1.8. Horses for courses. Choices are good. All that stuff.



Olaf Optical Testing, 2017



So This Changes Everything, Right?

Nope. Let’s face it, there hasn’t been an impressive 14mm prime for SLRs for a while, and I haven’t heard the natives banging on the castle doors demanding one. But for some people this is going to be a really fun lens. I consider it reasonably priced for what it is; a unique and excellent lens that hasn’t been made before. I shot real-estate for a brief moment in time, and I would have killed for this lens then. And I like playing with ultra-wide images in general, so I’m kind of excited about it. It won’t be a huge fraction of my images, but it will be a tool I didn’t really have before.

A lot of people will never shoot 14mm and will never notice this lens exists. But for those who do, the Sigma 14mm f/1.8 Art Lens is probably going to be a fascinating lens indeed.



Roger Cicala and Aaron Closz

Lensrentals.com

July, 2017



Addendum: A couple of requested comparisons

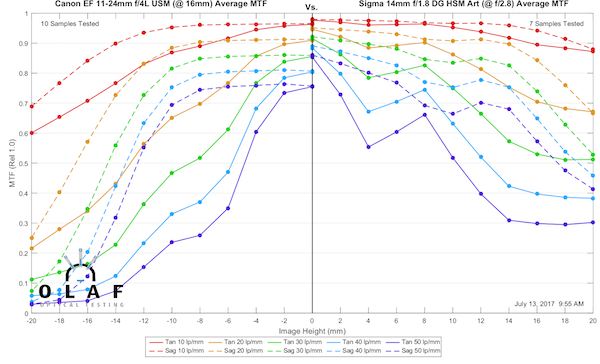

Sigma 14mm f/2.8 Art  to Canon 11-24mm f/4 L at 16mm

Olaf Optical Testing, 2017

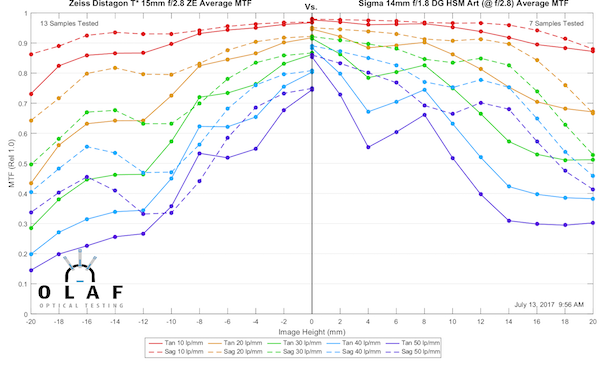

Sigma 14mm f/2.8 Art to Zeiss 15mm

Olaf Optical Testing, 2017

Author: Roger Cicala

I’m Roger and I am the founder of Lensrentals.com. Hailed as one of the optic nerds here, I enjoy shooting collimated light through 30X microscope objectives in my spare time. When I do take real pictures I like using something different: a Medium format, or Pentax K1, or a Sony RX1R.

Posted in Equipment
  • Mako

    How is the FujiFilm 14 ? APS so I guess it’s no comparison ?

  • Don Farra

    Roger thank you once again for a interesting evaluation. I was considering this particular lens for Astrophotography and wanted your opinion on it for that application, especially in regards to coma.

  • DSS

    I’d like to see this comparison as well, when possible.

  • Physicsonboard

    Will this take a speedbooster for m4/3?

  • Saad

    so… is it time to sell the 14-24/2.8 and get this one?

  • Andrew Chew

    The Sigma might be sharper than the Zeiss but the astigmatism is quite fantastic.

  • Well, if you using the Royal Coma of astrophotographers (coma, higher order sphericals and comas, and astigmatism smearing the corner stars) the MTF kind of suggests there will be some, but not awful. Coma as a pure optical aberration I can’t tell.

  • David Hussey

    It is certainly appropriate comparisons to make because the zooms in question here are legitimate options for anyone who might be contemplating the purchase of this lens. With bags-o-money I might discount ever purchasing a zoom and employing someone to lug around my gear and hot swap lenses for me ….. but unfortunately I’ve no bags-o-money :((

  • Steven Kovick

    how does it perform for coma distortion as many who want a fast wide are looking at doing night photography with it.

  • Bob Thane

    Crazy impressive, thanks for the tests Roger. Honestly a lot better than I expected (and you guys were faster to test this than I expected too, hat’s off).

  • Your turn, Rokinon / Irix… If you can deliver something even comparable, at a way cheaper price and la ighter weight, I’ll buy that instead.

  • Brandon Dube

    The lens-camera sensor sees the optical distortion, it’s just not what imatest or DxO measure, which is SMPTE TV distortion.

  • HD10

    Any plans on carrying Irix? It would be interesting to see how the lighter weight Irix 11mm f/4 and 15mm f/2.4 performs wide open.

  • Teper

    Thanks Roger, thats fantastic.. I’m sold.. Thats also much less distortion that the Sigma 12-24 Art, I think.

  • Sean T

    Some of us understand that. Not nearly enough, but some of us.

  • For those who have asked, comparisons with the Zeiss 15mm and Canon 11-24mm lenses are added as addendums.

  • That’s a good comparison I should have made already. I’ve got the ZE 15mm which is optically the same as the Milvus, I’ll put that up in a minute.

  • It really wasn’t bad: 1.25%. Now remember we’re measuring optically, not by what the lens-camera sensor sees. But that’s really low distortion for a wide angle lens.

  • Teper

    Any comments on the Sigmas distortion Rodger?

  • Daniel

    I currently have one of your Milvus (Zeiss) 14mm @2.8, mostly because this wasn’t available when I needed it to ship.

    Can you show any comparisons between the Zeiss and the Sigma 14mm?

    Thanks!

  • ?ukasz Moszczy?ski

    Some day please compare Sigma 14 f/1.8 (at f/2.8) to Samyang 14 f/2.8 and Samyang 14 f/2.4.

  • Maureen

    Thanks. Im intrigued so will be curious what you find. By the way, I was referring only to the 14mm L prime, not the zoom, since generally the primes are sharper. Im most curious if the newer technology in the Sigma is sharper than the Canon 14 mm prime. Any 14 mm lens is less often shot at its widest aperture because of the type of photography it is designed for, so a comparison at f/16 would be very telling. Until now, I haven’t seen a Sigma that is crisper than a Canon L lens at all aperatures. Maybe this is the one?

  • I’ll post what I have tomorrow but I didn’t test the Canon at 14mm, just 11mm and 16mm.

  • I don’t have any f/8 data. The Canon has been the gold standard for that kind of shooting, but the Sigma at 14mm should at least hold it’s own. I’ll post comparison MTFs tomorrow, but the Sigma at f/2.8 is sharper than the Canon at f/4 at either 11 or 16mm, which is where I have data. The Canon may be as good at f/8, but I can’t imagine it being better. On the other hand the Sigma doesn’t zoom well. 🙂

  • Nope, don’t have any to compare I’m afraid.

  • Hugo Nascimento

    Can you compare also with the recent irix brand? Thank you

  • yuchang

    what i really like to see is the canon 11-24mm at 14mm vs the sigma at 14mm f4 Yes the 11-24 is f4 but its two super modern ultrawide designs against each other. Although right now…the Sigma is going to be the king of astrophotography by the looks of things.
