How a Ballhead Works

Published April 21, 2013

This will probably be of limited interest to most of you, but we like to know how things work, not just how well they work. Since we haven’t had any lenses or cameras to take apart lately, we thought we’d take a couple of pictures when we disassembled a ballhead in case any of you were interested. Our demonstration partner today was a Benro B1 ballhead that had a stripped tension adjustment knob, but all ballheads work basically the same way.

Unlike most photography gear, ballheads are elegantly simple. They have only a few parts. There’s the ball itself, of course, and the external case. Between the ball and the top of the case is a form fitting bearing. The bearing material (not visible in photo) is a firm plastic that has low friction, but it distorts a bit with pressure, exerting more friction at higher pressures. Many balls, like this one, have an opening in the bottom.

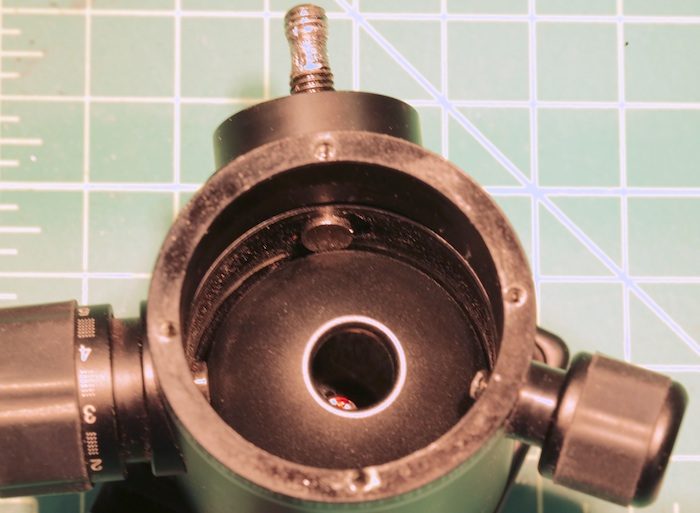

Ball-in-case, seen from below with base and internal parts removed.


You can see the three knobs of this ballhead. The one on the lower right is the friction knob for the panning (or rotating) baseplate. The left knob and top knob are the lock and drag controls, which pretty much do the same thing (which is why some ballheads only have one friction/locking knob).

You may barely notice that the upper knob is attached to a push rod with a 30-degree angle, while the left knob has a flat push rod. (In this picture the ball has dropped back towards the push rods. Assembled it’s about 5mm further forward, away from the base.)

A plastic bearing cup fits beneath the ball. Like the upper bearing, it’s nearly frictionless with no pressure is applied, but grips quite tightly when pressure is applied. Unlike pan-tilt heads, ballheads don’t need internal lubricants.

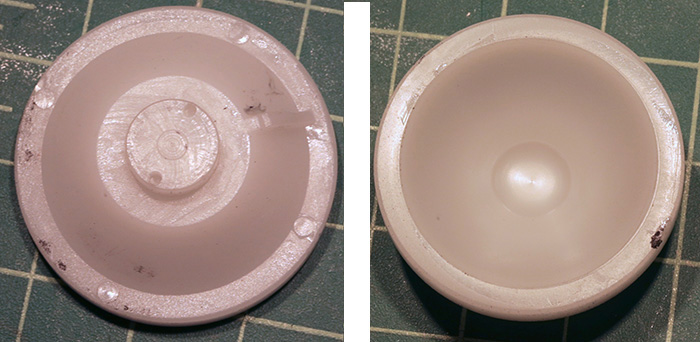

Internal and external views of the plastic bearing cup that fits over the ball.

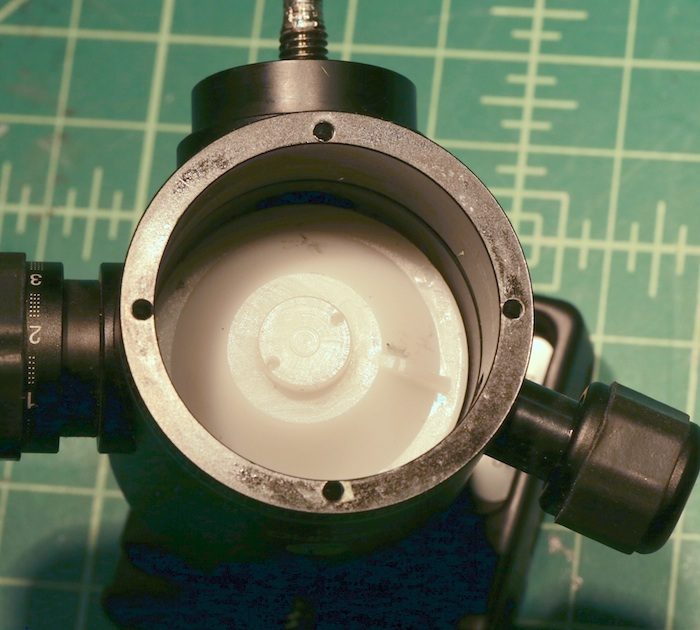

Bearing placed under ball.


The next piece is a conical plastic compression ring that fits over the bearing and provides the magic tightening of the ballhead. Notice there’s a partial-thickness groove cut in the cone, which fits over the ridge in the bearing cup, holding things in proper alignment.

On the opposite side there is a gap in the ring. When you turn the friction or locking knob, this opening is compressed. Since the ring is cone shaped, compressing the opening forces the bearing plate more tightly against the ball, increasing friction and resistance. Like I said, simple and elegant.

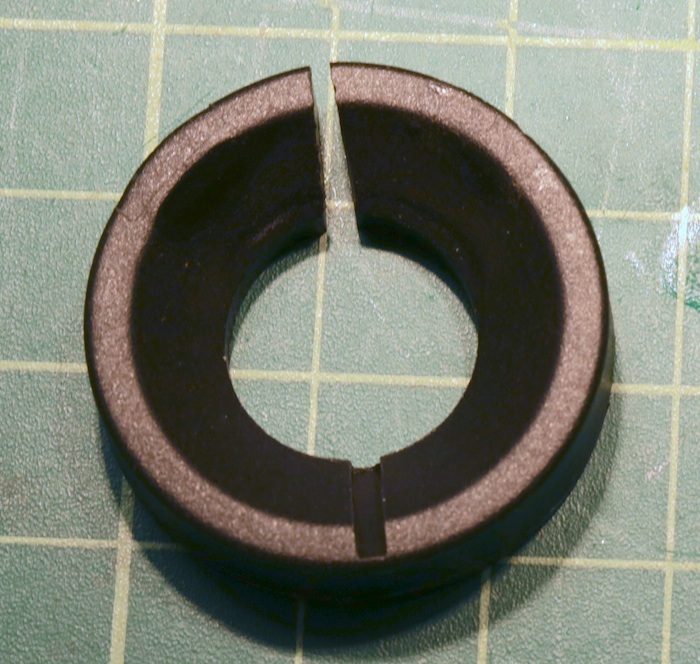

The cone shaped compression ring.

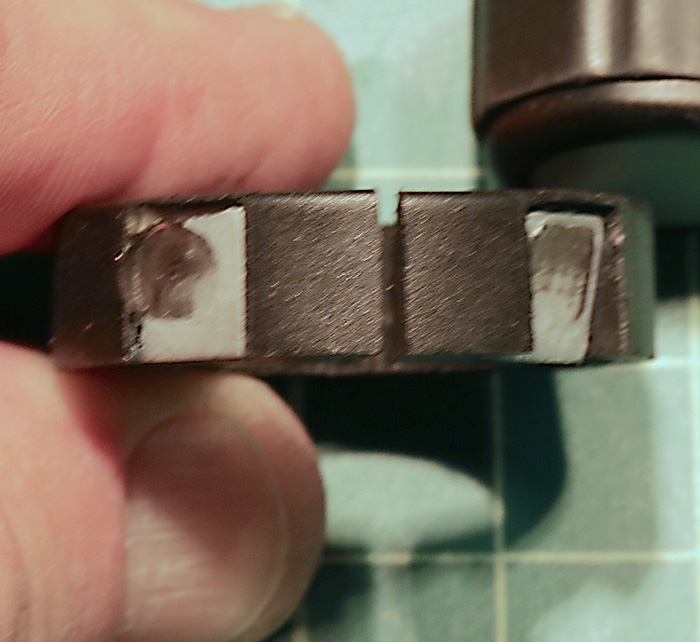

Side view of the compression ring showing the two plates where the locking and friction knob rods make contact. Despite the blur (it’s not camera shake, it’s 4 cups of coffee hand shake) you can tell one is flat, the other tilted about 30 degrees. You can also see some wear in this  two-year old ring where the rods make contact.

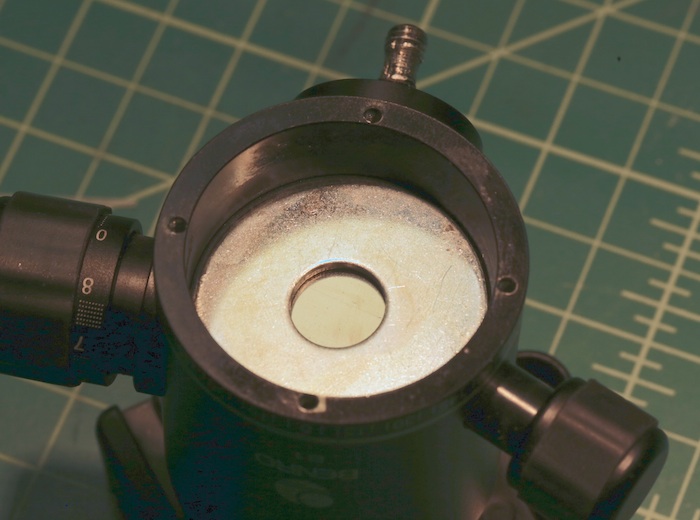

Of course, the ballhead needs a very sturdy base under the conical plate, so that the pressure from the adjustment knobs all goes up to the friction plate and ball. In this case there’s a 1mm thick steel plate with a 1mm thick steel washer beneath that, held in place with an equally thick e-clip. The remaining space is taken up by the rotating (panning) base plate, which is attached by 4 screws (you can see the screw holes in the bottom of the case).



Takeaway Message

Ballheads are pretty simple things. Taking one apart shows why, when properly taken care of, they seem to last for ever.

The difference between the best ones and the less-than-best ones isn’t (as far as I’ve been able to tell) any secret new technology. Rather it would be in the materials used for construction. The best heads have aspherical balls and use higher cost materials for the friction plates, conical plates, screws, and housing.

For moderate weight (say a camera and 70-200 f/2.8 lens) used occasionally (a couple of weekends a month) the difference isn’t huge, especially with a new-out-of-the-box ballhead. With heavier weights and heavier usage, more durable bearings and particularly screw stems should improve reliability and lifespan. When we see a ballhead die, 90% of the time it’s because a friction knob’s threads are stripped or the rod bent.


Roger Cicala


April, 2013

Author: Roger Cicala

I’m Roger and I am the founder of Lensrentals.com. Hailed as one of the optic nerds here, I enjoy shooting collimated light through 30X microscope objectives in my spare time. When I do take real pictures I like using something different: a Medium format, or Pentax K1, or a Sony RX1R.

Posted in Teardowns and Disassembly
  • Joachim / CH

    Sometimes I’m shocked.

    These people run a world class lens rental service, together with tons of other stuff.

    And as illustration they use – let me guess – a demolished iPhone, a USB cam from the Pawn shop, a Holga?

    :)) Do you just want to encourage us saying “hand it over, we do some pictures to recognize things on it” or do you want to make the copying job of the chinese manufacturer a tiny bit more difficult? In that case: Extremely well done! :)))

  • Thanks for taking the time to (literally) “break it down” for us. FWIW, the Acratech Ultimate Ballhead has an even simpler design: an external clamp that grips only the “equator” of the ball. The clamp has two screws; one adjusts the static tension on the ball, the other tightens the ball in place. The ball and clamp assembly is mounted onto a pan base with a separate tightening screw. Although not the most compact design, the Acratech Ultimate is lightweight, rugged, does not shift when tightened, and is easy to maintain.

  • Roger Cicala

    They are easily repairable when you can buy the parts. Manfrotto and Gitzo not only sell the parts, they’ve got the part diagrams online which helps with disassembling and knowing what you need. For the Chinese manufacturers parts are more difficult to obtain.

  • Tim Ball

    asad, the elliptical or aspherical ball, patented by Arca Swiss,but apparently now copied widely, helps to keep friction constant as the force on the ball increases when the camera/lens is tilted away from centre. With a perfectly spherical ball the only answer is to re-tension the head, with an ellipse the tension on the ball increases naturally as it is moved off centre.

  • jubi

    I striped up a Gitzo ballhead.
    A total different story – no plastic involved, very fine craftsmanship, and when i removed the e-clip 20ish balls rolled over the entire house (some bearing mechanism). When i put them in place – uups there where one too much (i guess was something to do with the tension knob (who had to be kept in tension by one of the balls), because now that particular knob it doesn’t work anymore – that will give the pleasure to do it again. Anyway – i found nothing needed to be wiped or lubricated.

  • When we see a ballhead die, 90% of the time it’s because a friction knob’s threads are stripped or the rod bent.

    These sound pretty easily repairable—does anyone out there specialize in tripod repair? For tripods that cost hundreds of dollars, a $50 – $100 repair could definitely be worth it.

  • asad

    Why…would an aspherical ball be a benefit in a ballhead?
