Cine Lens Comparison: 35mm Full-Frame Primes

Good day! And welcome to our first Cine lens MTF comparison. If you aren’t familiar with what we do here, I suggest you take a glance at our previous post on why we’ve started testing Cine lenses. For those of you who haven’t been here before, let’s be clear about what this is not. It is not a lens review. There are a zillion important things you need to know about cine lenses that we don’t discuss. What we do is optical and variation testing.

Today’s Contestants:

We’re going to look at 35mm focal length, full-frame Cinema primes. We had sufficient copies of five lenses which meet that criteria. I know the price is never an issue for cinematographers, but I’m listing them by price anyway.

Zeiss CP.2 35mm T2.1$3990
Canon CN-E 35mm T1.5$3950
Sigma 35mm T1.5 FF$3499
Rokinon Xeen 35mm T1.5$1895
Schneider Xenon 35mm T2.1$3360

We have three T1.5 aperture lenses and two that are T2.1. It’s important to remember that when looking at the MTF tests because the smaller aperture is a big MTF advantage; we would expect a T2.1 lens to have better resolution than a T1.5 lens. We also have one lens that costs a lot less than the others. It will be interesting to see if you pay the penalty in resolution or variation for that lower price.

Cine Lens Test and Comparison

Average MTF Curves

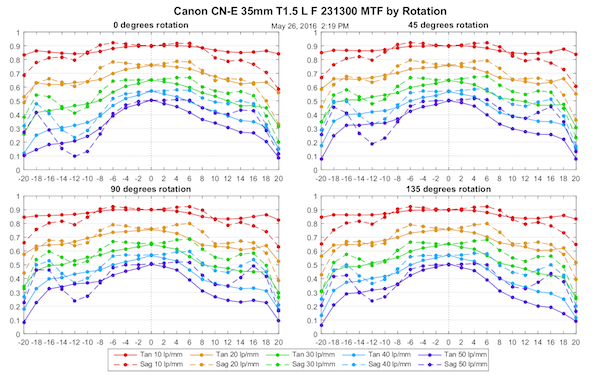

We test multiple copies of each lens, with each tested from edge-to-edge at four rotations, so that get a picture of how each lens behaves in all quadrants. This graph shows what the results look like for a single copy of a lens.

Olaf Optical Testing, 2017



This doesn’t look much like the MTF curves you’re used to seeing from the manufacturer that goes from center to one edge and pretend all lenses will look the same. So we average all that data from 10 copies to give a similar, but real-world, MTF to compare these lenses overall.

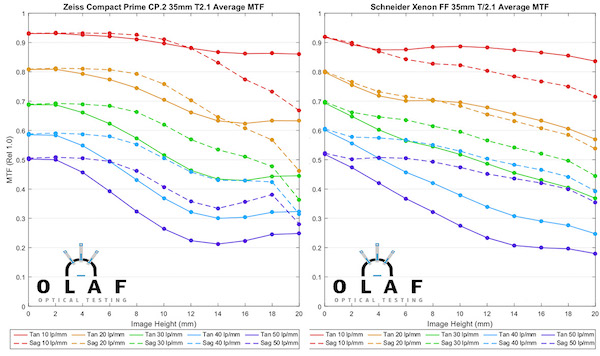

We’ll look at the T 2.1 lenses first; the Zeiss CP.2 35mm T2.1 and Schneider Xenon 35mm T 2.1. Right at the center, their MTF is almost identical. In the middle half of the image, the Zeiss maintains that MTF while the Schneider steadily falls off, but in the outer 1/3 things are pretty even again.

Olaf Optical Testing, 2017



We’ll compare the two more expensive 35mm T1.5 lenses next, the Canon CN-E35mm T1.5 L F and the Sigma Cine35mm FF T1.5. If you’re surprised that the Sigma has higher resolution, remember that it is a very recent lens design. The Canon CN-E is based on the Canon 35mm f/1.4 L photo lens that was released 20 years ago. The Sigma resolves at T 1.5 almost as well as the Zeiss does at T2.1. The recent design does have advantages.

Olaf Optical Testing, 2017

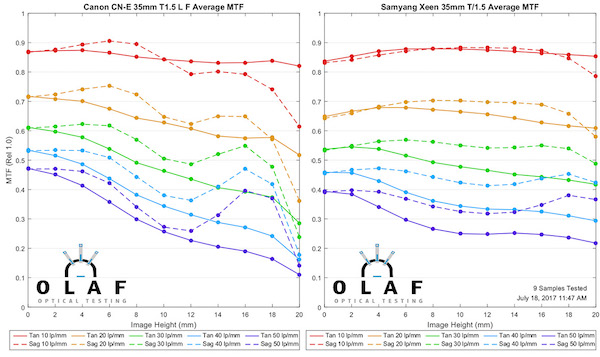

To keep the Rokinon Xeen 35mm T1.5 from being lonely, I’ll repost the Canon results beside it. The Xeen MTF in the center is the lowest of all these lenses, but its resolution stays high across the frame. In the outer 1/3, it’s the best of all.

Fanboys love to declare winners and losers, but what I see five tools with different strengths and weaknesses as far as MTF curves show. Although I will say, the Sigma has a whole damn lot of strengths as far as MTF goes.

Olaf Optical Testing, 2017

MTF Full-Field Plots

The MTF graphs give a ton of information but aren’t very intuitive. These plots show what the MTF looks like, on average, if we map it as it would be across the field of view of the lens. Each map is of one frequency on the MTF graphs above, with the sagittal and tangential curves averaged together. I’m going to skip over 10 lp/mm; as all these lenses are almost identical there.

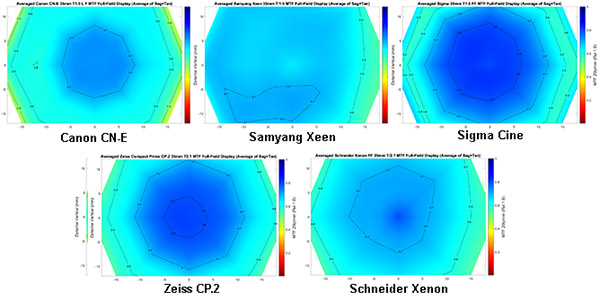

20 lp/mm

I’ve arranged the T1.5 lenses in the top row, T2.1 lenses in the second. Even at this relatively low frequency, you will see some difference in these lenses, with the Sigma and Zeiss a bit better. Again, these are at widest aperture, so the Sigma’s performance at T1.5 is very impressive.

Olaf Optical Testing, 2017

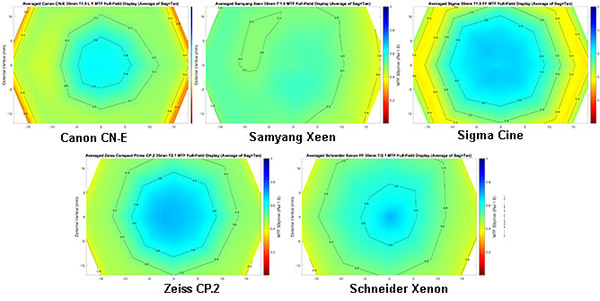

30 lp/mm

This higher frequency is going to be of little importance to anyone shooting 1080p or less, but can be substantial for higher resolution video. How important is going to depend on what you’re shooting and what look you are creating, of course.

Olaf Optical Testing, 2017

I find it very interesting how different the MTF’s look at this higher frequency, compared to the lower. The Sigma still maintains excellent center sharpness but falls off more at the edges now into the yellow ‘borderline MTF’ zone. (It would be an excellent choice when you want a sharp center image with softer edges, not so much if you want an even look across the field). The Zeiss also maintains excellent center sharpness but at this frequency has better (and smoother) edge performance.  You may notice the Samyang looks a bit asymmetrical, even in this average-of-all-samples plot. We’ll get into that when we discuss variation.

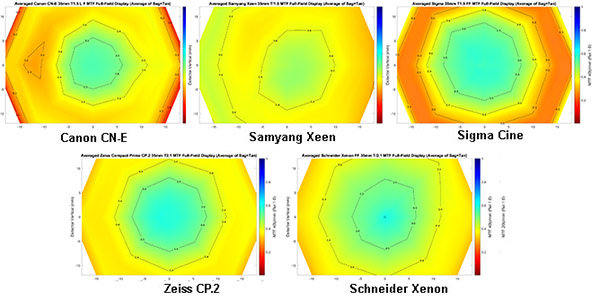

40 lp/mm

There is not a lot of difference change in pattern at 40 lp/mm compared to 30 lp/mm. All of the lenses have lower resolution away from the center now, as we would expect, but the change is more dramatic for some.

Olaf Optical Testing, 2017

I encourage you to scroll back up to the 20lp/mm graphs to compare how, from a resolution standpoint, these lenses have different strengths and weaknesses depending upon the frequency you are considering. At lower frequencies, there’s no real argument that the Sigma and Zeiss have better resolution, but at higher frequencies, it’s not that simple. Which lens is best will really depend on what you are shooting and the look you want to achieve.

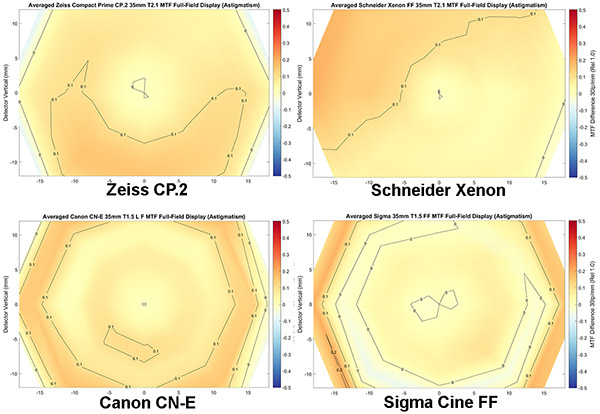

Full Field MTF Astigmatism Plots

The graphs above show the average of sagittal and tangential MTF, which gives us an idea of overall resolution. In the actual MTF data in the first graphs, though, you may have noted that sometimes the sag and tan lines were widely separated. This is generalized as astigmatism, but other factors, such as lateral chromatic aberration, can contribute to it. Nevertheless, a lens with that kind of separation gives a different look than you would get from a lens with little separation. We can graph the MTF’s astigmatism, just like we did the resolution above, and I’ve done that for 4 of the lenses.

Olaf Optical Testing, 2017



There’s not a lot of astigmatism in any of these lenses. If you look carefully, though, you see that the two T 2.1 Cine lenses on top have a fairly random pattern, while the two T1.5 photo-derived Cine lenses on the bottom show a bit more variation in a very mild ‘bulls-eye’ pattern. I’ll go ahead and answer your questions. First, this pattern is a bit more common in photo lenses and wide aperture lenses, but it is not a general rule you can live by. Second, the Xeen isn’t shown because the copy-to-copy variation made the graph weirdly random.

MTF vs. Field vs. Focus (Field of Focus) Plots

These graphs are useful in several ways. The most obvious are they show how the field of best focus curves across the field of view. It’s also useful when looking at MTF curves that fall-off, or show astigmatism in the outer edges. If the field curvature is also severe in that area, then field curvature explains some of the MTF results.

These are done at 30 line pairs / mm and at f/4 (which minimizes the effect of aberrations and shows a more accurate curve). If they were done at different apertures or frequencies, the depth of field would be greater or smaller. They are also examples of a single lens, not the average of 10 copies, so you will see some of the mild field tilts that cause some of the copy-to-copy variation in lenses at higher frequencies.

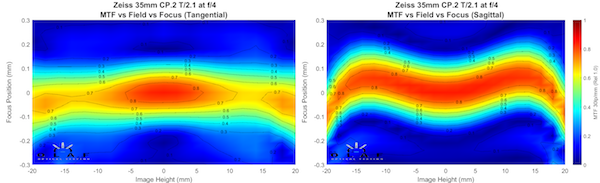

Zeiss CP.2 35mm T2.1

This curve is very typical for Zeiss lenses; a very mild curve of the tangential field and a stronger mustache curve of the sagittal field.

Olaf Optical Testing, 2017

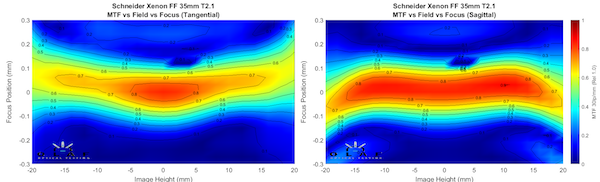

Schneider Xeen 35mm T2.1

Notice how the sagittal and tangential fields curve in opposite directions near the edge of the image, but otherwise overlay nicely.

Olaf Optical Testing, 2017

Canon CN-E35mm T1.5 L F

The Canon field curvature is rather similar to the Zeiss seen above, but the tangential field is flatter and fades a bit more at the edges.

Olaf Optical Testing, 2017

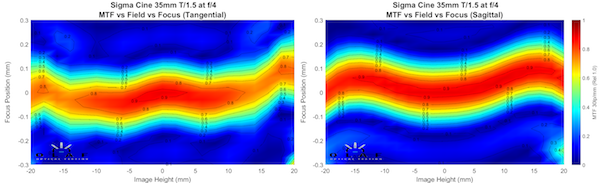

Sigma Cine 35mm FF

This copy of the Sigma shows a mild field tilt, but overall the curve shows a slight mustache in the sagittal field, with a mild U curve in the tangential.

Olaf Optical Testing, 2017

Rokinon Xeen 35mm T1.5

This Xeen copy also shows a mild field tilt, more pronounced in the tangential field. You can also see it is slightly decentered.

Olaf Optical Testing, 2017



None of these lenses show a dramatic field curvature that you’d need to take into account when filming.

Averages are So Average

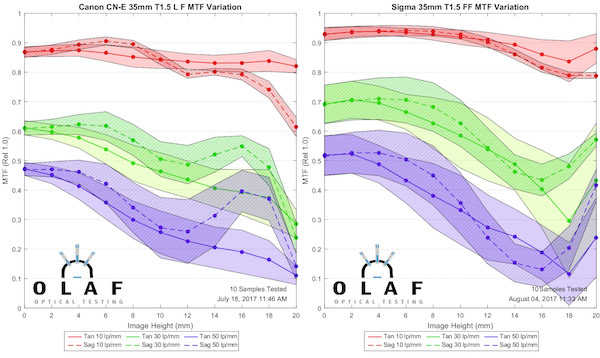

Let’s look at the variation range for each lens. This is the ‘spread’ of MTF results in the ten copies of each lens tested; the area in the graphs represents + and – 1 standard deviation. To keep the graph from getting too crowded, we just plot 10, 30, and 50 line pairs for these. First the T2.1 lenses.

One thing you will notice is there is very little variation at 10 line pairs/mm (red area), but quite a bit more at the higher frequencies (green is 30 lp/mm and purple 50 lp/mm).

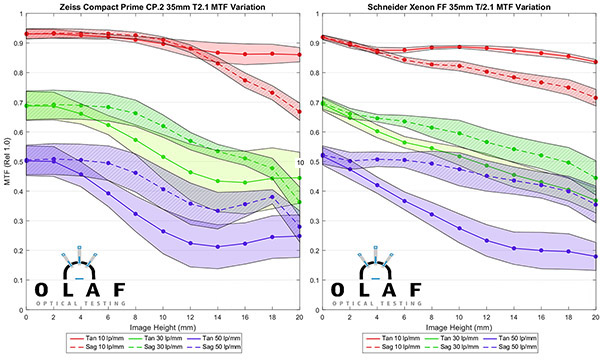

Here are the two T2.1 lenses. Both are good, but the Schneider is exceptionally consistent.

Olaf Optical Testing, 2017

Next, the T1.5 lenses. Experience with hundreds of photo has taught us that wider aperture lenses tend to have more variation. The Canon is surprisingly excellent, comparable to the T2.1 lenses. The Sigma has a little more variation. The Samyang has even more, particularly at higher frequencies.



Olaf Optical Testing, 2017

Olaf Optical Testing, 2017

There are a couple of important examples made here about how this kind of testing translates to real-world images. First, look at the red, low-frequency areas. Four of the lenses have very little variation, while the Samyang has quite a bit more. Shooting at 1080p, this is what you would see; almost any copy of the first four lenses will appear excellent unless it has major optical issues.

But we do get complaints sometimes that a given copy of the Samyang lenses isn’t as sharp as expected, or appears to have some tilt. They are amazing values for the money, but at that price, it’s not reasonable to expect the consistency as a lens costing twice as much.

Full-field Variations

These are just examples of a few copies to give you an idea of what that variation looks like lens-by-lens.

To keep the length reasonable, I’m not going to give examples of every lens we tested. I’ll use the Zeiss CP.2, which had little variance and the Samyang Xeen, which had the most.  I’ll show the first nine copies I tested of each lens. Why 9? Because nine fits in the stupid little boxes I have to work with, that’s why nine.

Zeiss CP.2 at 10 lp/mm

These are just thumbnails, but you can probably tell that two copies in the second row have a small area of very slightly lower MTF along one edge. It’s really minor, though, and I’m comfortable it could not be detected in low-resolution video.

Olaf Optical Testing, 2017

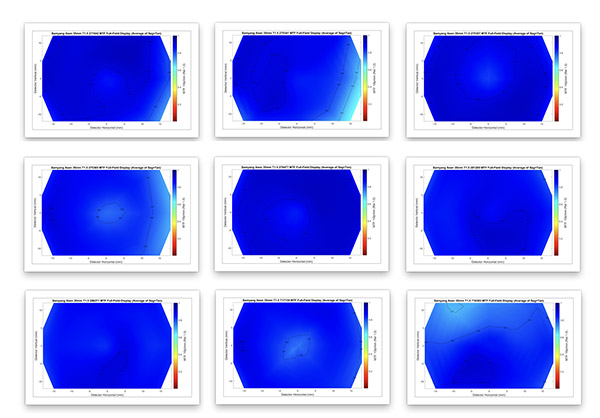

Samyang Xeen at 10 lp/mm

Things are only slightly different with the Xeen at 10 lp/mm. A couple have slightly lower MTF in small areas, a bit more than the Zeiss, but nothing you’d probably notice.

Olaf Optical Testing, 2017

Next, we’ll look at 30 lp/mm frequency, which would be more appropriate if you’re shooting high-resolution video.

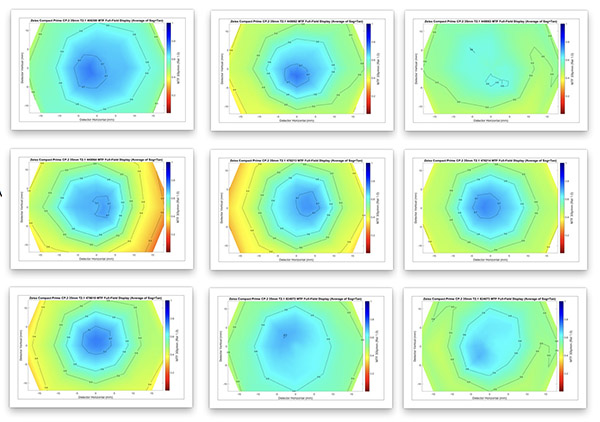

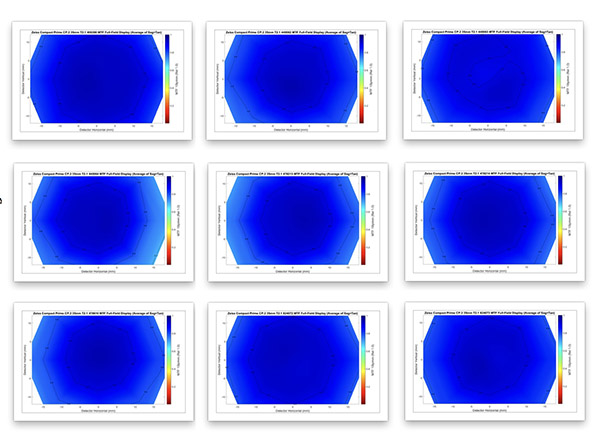

Zeiss CP.2 at 30 lp/mm

These are the same lenses, in the same order, as the thumbnails above. The same two edges that were ‘difficult to notice’ weak at low frequencies now show the yellow (MTF < 0.4) and orange (MTF < 0.3) that means you may notice this.  To repeat, you might notice this if you’re shooting 6k or 8k, but you wouldn’t at 1080p. We also see the lens at the upper right doesn’t ever get dark blue in the center. If you had several of these lenses, and you made careful comparison on high-resolution video you might be able to tell this one wasn’t quite as sharp in the center as the other copies, but it wouldn’t be immediately obvious.

Olaf Optical Testing, 2017

Samyang Xeen at 30 lp/mm

There’s some more obvious randomness here, and several of these copies, all of which appeared fine at low frequencies, are obviously not quite right testing at higher frequencies. One thing I want to point out, particularly: notice how the blue ‘sharpness center’ is pretty much in the center of each Zeiss lens. Now see where you consider the sharpness center to be located on the Xeens.

Olaf Optical Testing, 2017



So What Did We Learn Today?

Well, first, I hope I learn a lot from your comments. This is the first Cine lens MTF comparison I’ve done, and I’ve shown some things I don’t always put in photo lens comparisons. There maybe more things I should include that I haven’t and I’m open to suggestions. Try to be reasonable with your suggestions, please. For example, the testing for this post is roughly 50 hours of work. Doing all of the lenses at every aperture would take another 60 to 70 hours, and I don’t have that kind of free time.

My takeaway message is that there are differences in Cine lens MTF that are utterly meaningless if you’re shooting at 1080p, but that may be deal-breakers when shooting at 6k or 8k. How much of a difference will they make at 4k? We can argue the theory a lot, but basically, it’s going to depend on what you’re shooting, at what aperture, with what kind of recording, how your audience is viewing it, and what kind of look you are trying to achieve.

As always, these are just MTF and resolution tests. There’s a lot more that goes into choosing a Cine lens than that. But as more and more people are shooting high-res video for audiences who aren’t looking at the footage on their phone or tablet, it is going to become quite important.

In practical terms, if you rent a Xeen for your 1080p shoot, you’ll certainly be happy with it. Even if it’s for your 4k shoot, you’ll probably find it acceptable. (Don’t mistake me, I don’t think ‘probably’ is an acceptable level of confidence.) But if you rent a pair of them, I expect you’ll notice the footage from the two lenses looks a little different.

For those who were expecting a summary that says ‘what’s the best 35mm full frame cinema prime lens’, that’s not what I’m trying to accomplish. I’m hoping to give you some information that helps you pick which lens will be the best for what you want to do. If you need the sharpest center and T1.5, I’m going to recommend the Sigma. If you want good edge-to-edge sharpness, the Zeiss or Schneider would be my first thoughts. If you want to spend all your budget on an 8k camera and then rent the least expensive lens you can put in front of it, then I’ll suggest you rethink your priorities.



Roger Cicala and Aaron Closz

Lensrentals.com

August, 2017
