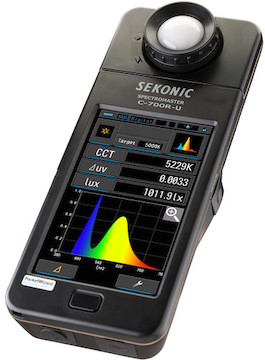

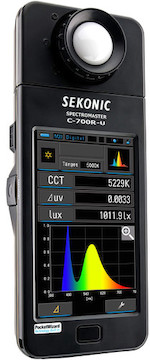

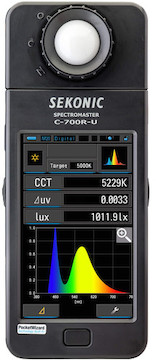

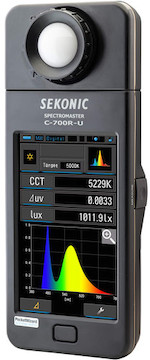

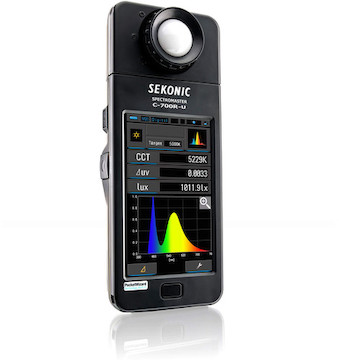

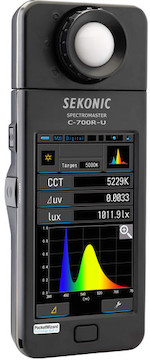

Sekonic C-700R-U SpectroMaster Color Meter

Includes

C-700R-U color meter
Strap
Soft case

Resources

Sekonic C-700R-U SpectroMaster Color Meter

While we no longer rent this product, here’s a link to our current selections.

Supports multiple light sources
Built-in PocketWizard
Wide color temperature and light-output range
4.3-inch touchscreen

The Sekonic C-700R-U SpectroMaster Color Meter is a full-spectrum color meter designed for motion and still-image capture. Key features include:

Multiple Light Sources. The Sekonic C-700R SpectroMaster Color Meter measures LED, HMI, Fluorescent, Tungsten, Natural Light and Flash in 1 nanometer (nm) output wavelength increments from 380 to 780 nm.

Built-in PocketWizard. The C-700R-U is the world’s first stand-alone spectrometer that measures the flash light with wireless triggering via the built-in PocketWizard receiver at distances up to 100 feet.

Wide Measurement Range. This color meter offers a wide correlated color temperature range of 1,600 to 40,000K and illuminance range of 1 to 200,000 lux in ambient/constant lighting or 20 to 20,480 lux/sec when measuring flash. This range provides the flexibility and accuracy to measure any light source in any demanding studio or on-location production, whether film or digital.

User-Friendly Design. With a 270° swivel head, dark calibration without cap, and a large 4.3-inch color touch panel LCD, the C-700R is user-friendly to even new users of advanced color meters.

Multiple Display Options. The large touchscreen LCD gives users multiple display options. The main screen offers quick selection of many of the C-700R’s functions, the text screen displays user selected measurement values with real-time updates after each measurement, the CRI screen displays standard color reference values (including R1 thru 15), and the spectrum screen displays the spectral energy distribution of a source in real time.

Supported Measurements. This color meter supports Kelvin (K), Illuminance (lux), LB/CC Filters (for camera lens or lighting filters), LB/CC Index and CRI (Ra, R1 thru. R15).

Stored Data. You can store up to 99 data inputs in memory.

Tethered Control. The free C-700 Series Utility software provides easy setting adjustment and measurement results in figures and graphs with the ability to save files, all from the computer.

Power. The C-700R uses two AA batteries (not included).

Q & A

Are batteries included with this rental?

The Sekonic C-700R SpectroMaster Color Meter is powered by two AA batteries, which aren’t included with this rental. Panasonic Eneloop Pro AA Ni-MH 2550mAh 4-pack and Nitecore New i4 Intellicharger are available as separate rental items.

Does this rental include a physical copy of the Sekonic software?

Copyright regulations prevent us from including a physical copy of the Sekonic software with this rental; however, you may download the software here.

Will this light meter wirelessly trigger my PocketWizard devices?

This device will wirelessly trigger any PocketWizard device using legacy firmware. Unfortunately, as of April 2020, this device will not function with any PocketWizard radio device using the new E-Release firmware.

Specifications

Brand	Sekonic
Environmental	Operating Temperature 14 to 104°F Storage Temperature 14 to 140°F
General	Battery 2x AA Wireless Connectivity None Radio System PocketWizard Dimensions 2.87 × 7.2 × 1″ (without Dome) 2.87 × 7.2 × 1.57″ (with Dome) Weight 0.5 lb.
Item Type	Lighting and Metering
Lighting Type	Light Meters
Metering	Meter Type Ambient Flash Spectrometer Flash Metering Radio Light Readings CRI (Color Rendering Index) Measuring Range Ambient: 1 to 200,000 Lux / 0.1 to 18,600 fc Flash: 20 to 20,500 Lux / 1.86 to 1900 fc Illuminance Range 1 to 200,000 Lux / 0.1 to 140,000 fc Spectral Wavelength Range 380 to 780 nm
Mfr. Model Number	401-703
Physical	Receptor Element CMOS Display 4.3" Color Touchscreen LCD System Connection USB 2.0 Port Memory Card Slots None Tripod Mounting Thread None
