Sony FE 16-35 f/4 & Sony FE 24-70mm f/4 Zoom MTF and Variance

Many of you who have followed along as we beta-test our Sony FE lens testing have been asking where the FE 16-35mm f/4 ZA OSS and the FE 24-70mm f/4  ZA OSS test results are. Well, the answer is they are here.

But your other question, why has it taken so long, has a more complex answer. Testing FE lenses are much more difficult than testing standard photo lenses. The electronic focusing mechanisms required us to make some major modifications to our testing bench. The baffles in FE mounts clips some data on the edges, making the testing process more difficult. FE lenses, having a short backfocus distance are more sensitive to the amount of optical glass in the imaging pathway. And, most recently, distortion curves and copy variation among some of these lenses made us question our results and testing methods, sending us back to redo a lot of data and taking up a couple of months of our time.

The end of all that is in sight, and we found, after a lot of internal retesting and questioning that the original results we got for these two lenses several months ago are valid and we’re publishing them now. During this process, we’ve also changed our variation graphs somewhat so they’re going to look a little different this time. That’s simply because these are new and better. We’ll be changing all of our other lenses to the new graphs eventually. (Don’t worry, I’ll have a follow-up article next week, putting the results of all the FE lenses in one place using the same graphs.)

Finally, no, we still aren’t quite done determining a ‘variation’ or ‘consistency’ number formula that we’re completely happy with, so there won’t be numbers for a while longer. You’ll also notice the FE variation graphs are different than what we’re using for other lenses. So first, let’s get a good look at what the two new zooms look like on the optical bench.

Remember when we test FE lenses we get some clipped data because of the baffle in the lens so while data from the center to 14mm is an average of 8 measurements for each lens, the data at 18 and 20mm is generally 4 measurements per lens. It sometimes makes the curves look a bit odd at the edge, and we encourage you to not get overly analytical about the 20mm data.

FE 16-35 f/4 ZA OSS

MTF

We have some nice comparison lenses to use here: the Canon 16-35mm f/4 IS and the Nikon 16-35mm f/4 VR. Below are the MTF curves for each at 16mm, 24mm, and 35mm. As usual, Zach has done his magic so you can enlarge the graphs to see them better.

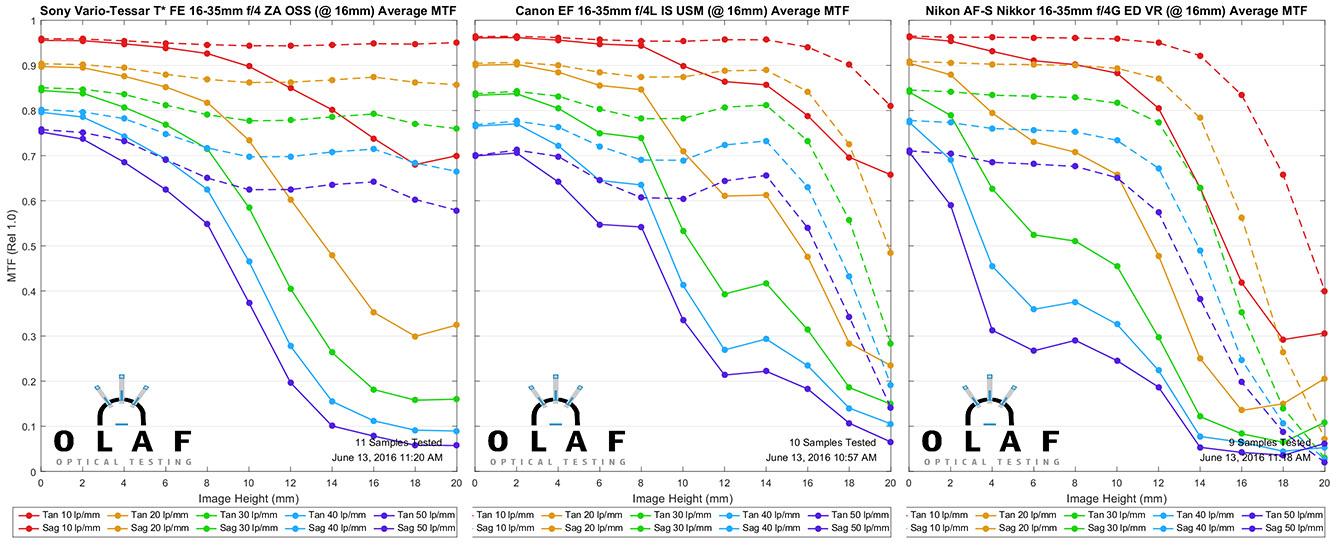

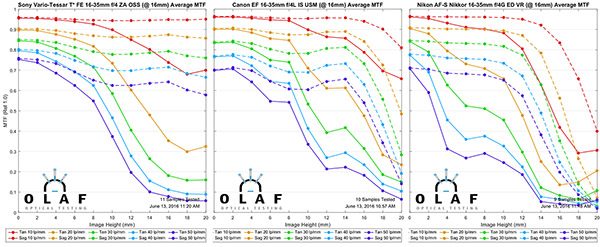

At 16mm, all 3 lenses are good in the center, with the Sony being better than the other two at higher frequencies. The Nikon develops ‘astigmatism-like’ patterns fairly close to center while the Canon and Sony hold together well till about halfway to the edge of the image. In the corners the Sony, while quite astigmatic, maintains sharpness quite well.

OlafOpticalTesting, 2016

OlafOpticalTesting, 2016

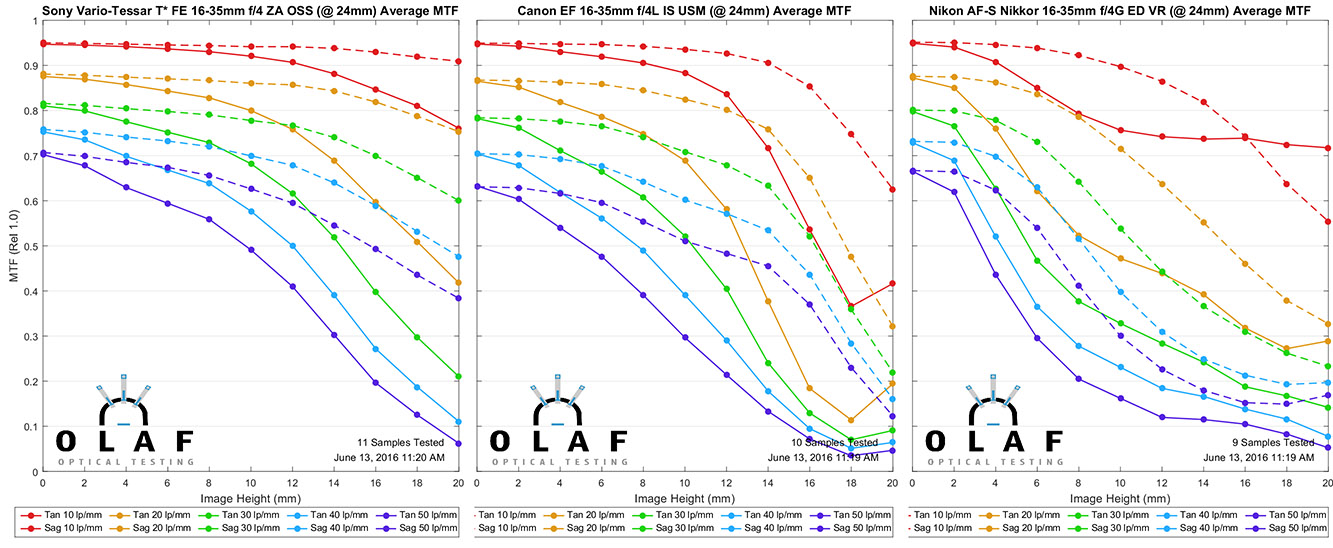

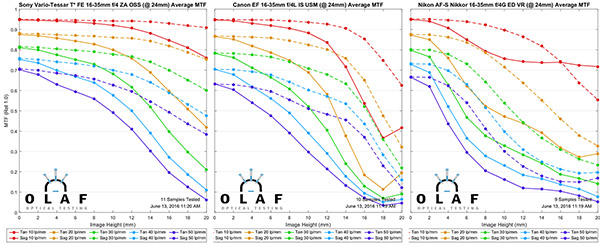

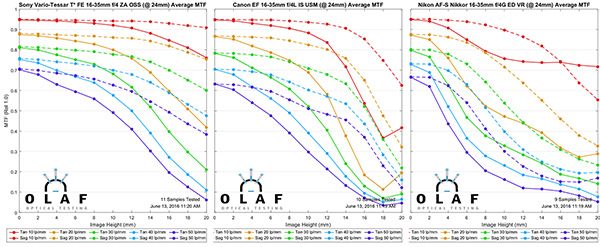

At 24mm things repeat somewhat, although here the Nikon is doing better at this focal length and is in some ways better than the Canon here. There is an odd ‘bounce-back’ in the Canon MTF at 20mm. It looks like an artifact, but it’s repeatable and consistent copy-to-copy, so I really don’t know that we can accept those 20mm (edge) readings at face value; the MTF graph may be a bit better than the real world. But again, the Sony appears to be slightly the best of the three.

OlafOpticalTesting, 2016

OlafOpticalTesting, 2016

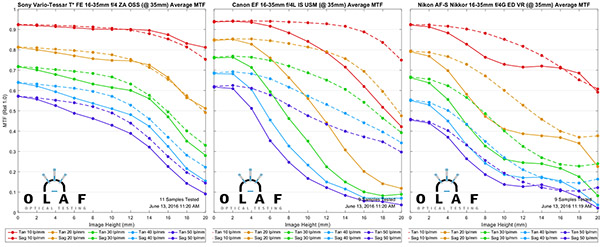

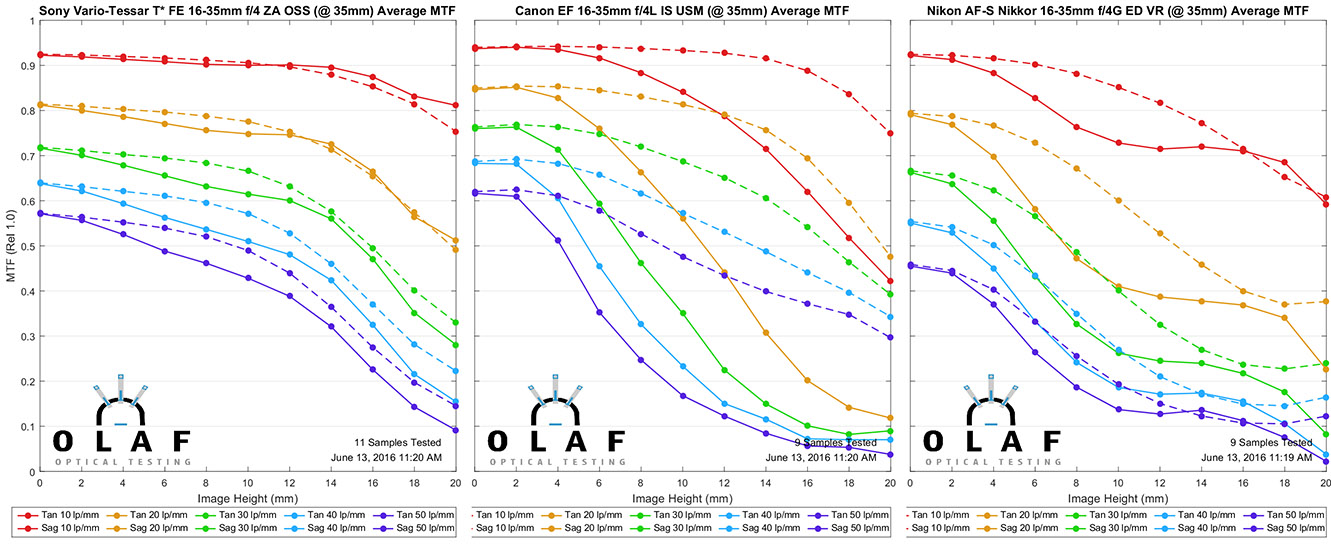

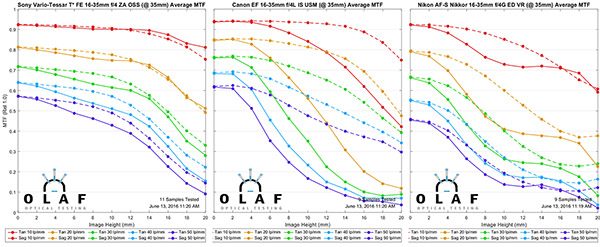

At 35mm, the Canon is at it’s best. The Nikon and Sony aren’t quite as good here, although I want to be clear, these are all really good performances for wide zoom lenses.

OlafOpticalTesting, 2016

OlafOpticalTesting, 2016



Overall we’d have to say the Sony has the best MTF at the 16mm, particularly at higher frequencies, while the Canon is a bit better at 35mm. The Nikon is at its best at 16mm but doesn’t hold up quite as well at longer zoom ranges. The Sony, as all Sony shooters have come to expect, is more expensive than the other two, although not hugely more. In this case, though, it’s at least as good, and in some areas better, than the others. It’s a really good lens.

Variation

I like to tell you my expectations pre-testing. In this case, I thought that wide-angle zooms tend to vary a lot, and Sony FE lenses tend to vary a lot, so I thought the Sony FE 16-35 f/4 would, duh, have a lot of copy-to-copy variation.

Before we get to the graphs, let me repeat that these are different than what we’ve used in the past. In the old graphs, we doubled the Y axis so we could show all 5 frequencies we measured. Now we’re leaving the Y axis from 1 to 1, just like the MTF graph and showing you 3 frequencies: 10, 30, and 50 line pairs/ mm. We think this gives a more intuitive picture of what the MTF of a given copy should look like. The lines in the center are MTF lines and should look the same as the MTF graphs, while the colored area is the range we expect typical copies to fall in.

Again, I want to emphasize we’ve tweaked the formula for our variation curves a bit so you’ll find some slight differences between the variation curves for the Canon and Nikon 16-35 f/4 lenses and our previously published curves. The lenses are the same, our math and graphing are a little different. (Again, you can learn how to read MTF charts here as well as Variance Charts here)

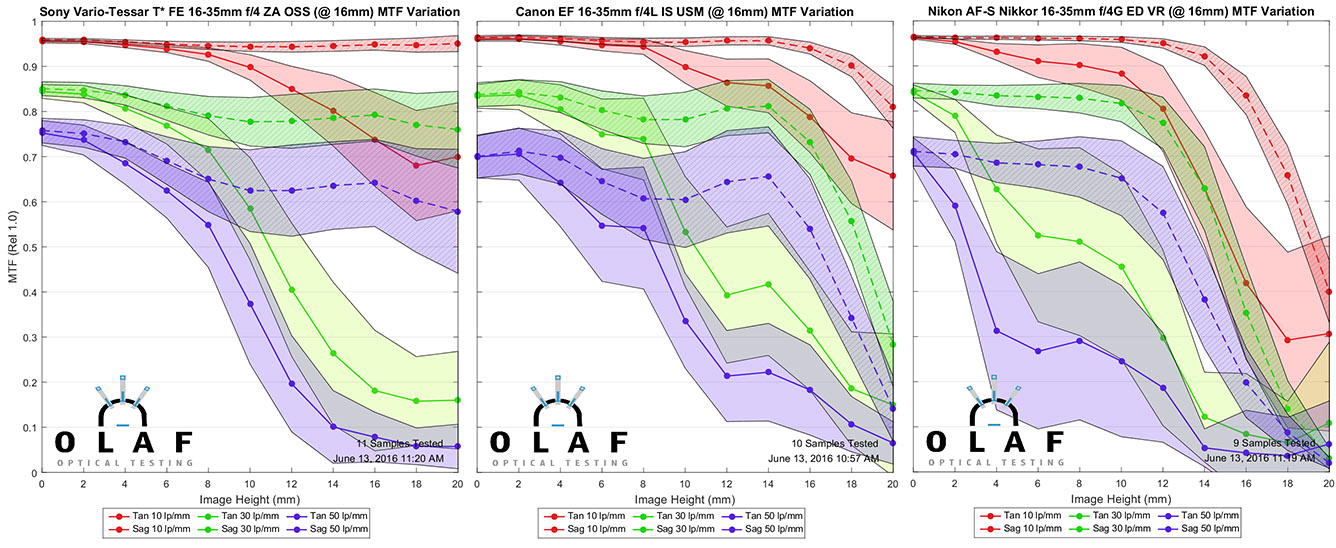

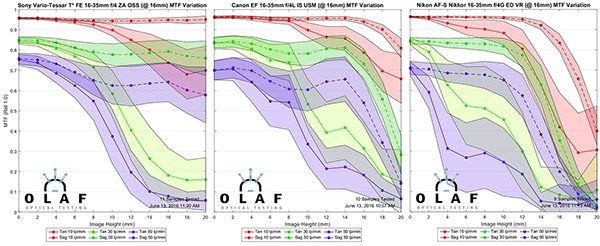

16mm variation

16varsml

OlafOpticalTesting, 2016

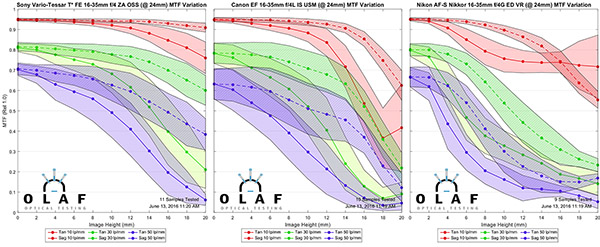

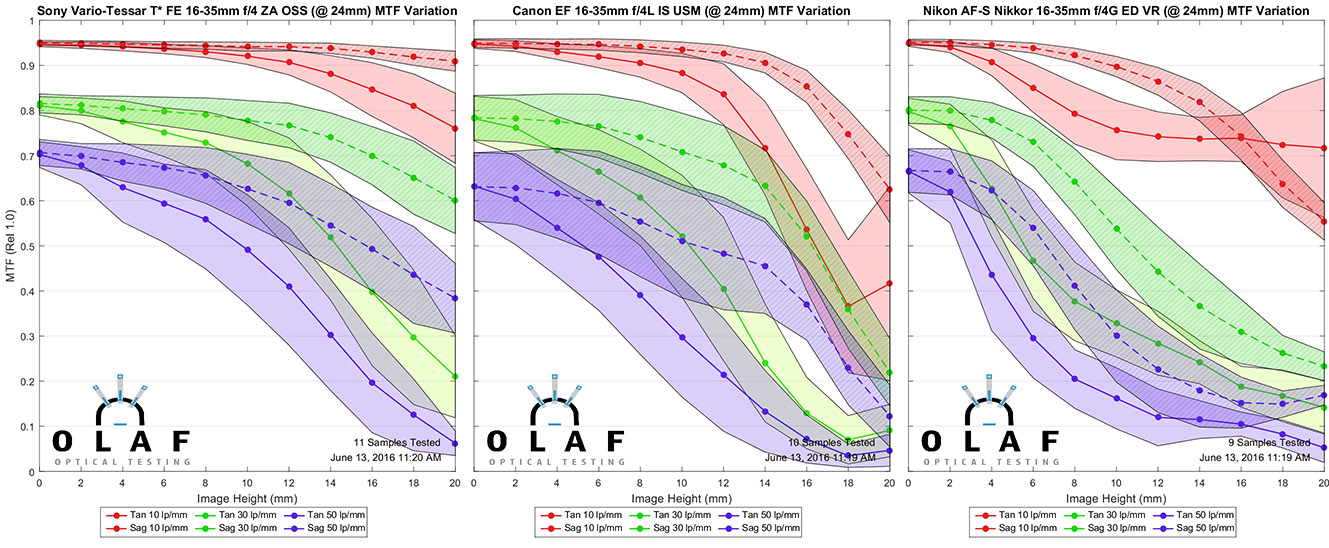

24mm variation

OlafOpticalTesting, 2016

OlafOpticalTesting, 2016

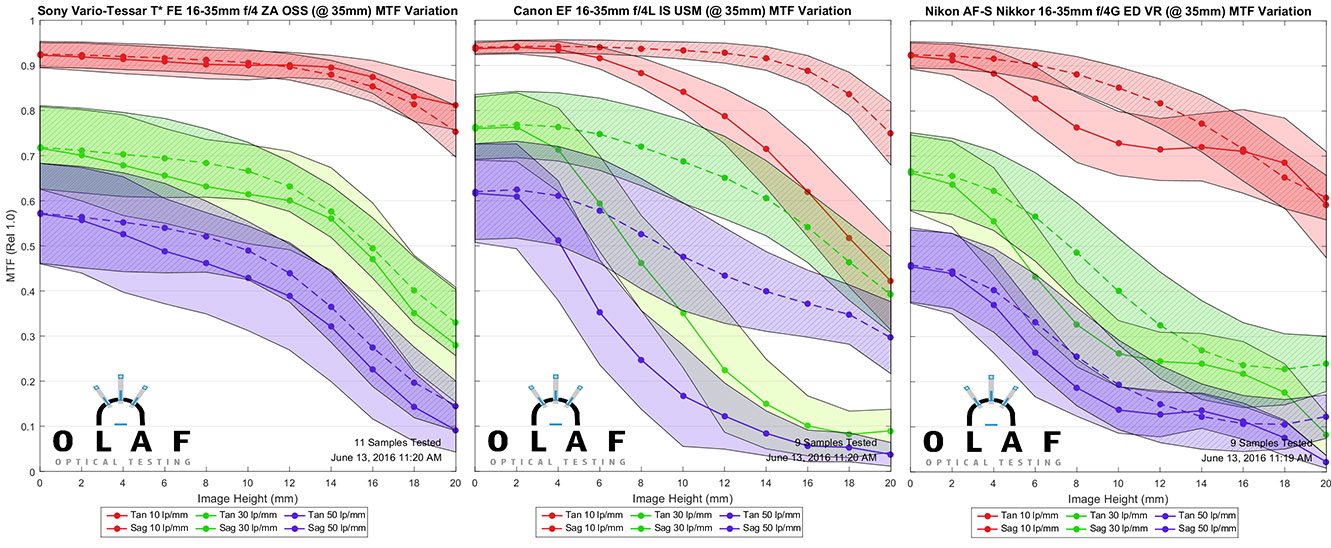

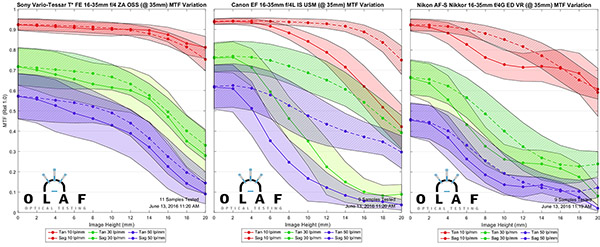

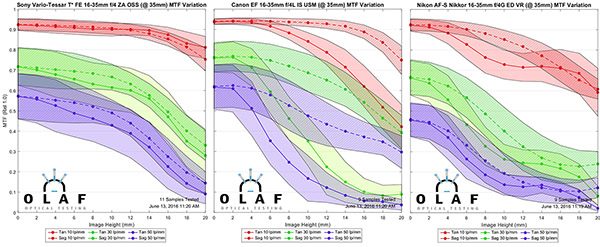

35mm variation

OlafOpticalTesting, 2016

OlafOpticalTesting, 2016



We know from previous testing that variation for the Canon and Nikon 16-35 f/4s are pretty good as zoom lenses go; not great, but good. The Sony 16-35 f/4 OSS has very similar to a bit less variation at the wide end and very similar to a bit worse variation on the long end. Overall, both from an MTF and a copy-to-copy variation standpoint, the Sony FE lens is as good as, and sometimes better than, the Canon and Nikon offerings.

FE 24-70mm f/4 ZA OSS

The 24-70 f/4 has been a very difficult lens for us to test for several reasons. One of the major reasons was distortion. The distortion figures we got testing it on the optical bench were quite different than what is reported for it. I don’t know exactly why, and I don’t intend to speculate here. But most importantly, there was some copy-to-copy variation in distortion which is rather unusual. We finally ended up testing by running a distortion curve for each copy at each focal length, testing the MTF, then repeating. It made the testing really lengthy and drawn out.

I mention it to be clear that testing this lens irritated me and I am therefore predisposed not to like it. I also point out that because of all this I am a bit uncertain with our testing methods with this lens. We’ve repeated measurements numerous times and I’m comfortable that the results are reproducible. But whenever something is weird and I don’t quite understand why, I’m always hesitant about publishing the results. But people keep asking, so here you go. Just keep in mind that there’s something about this lens I don’t understand so we may be missing something.

MTF

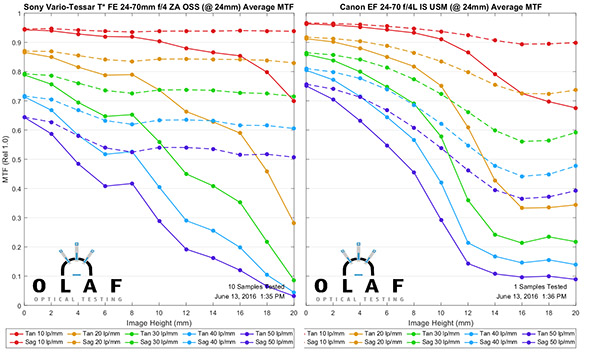

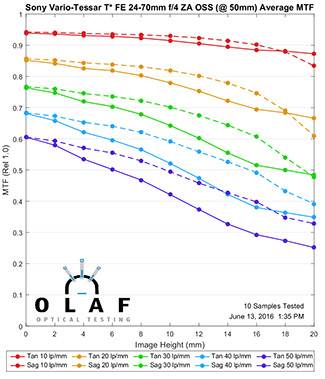

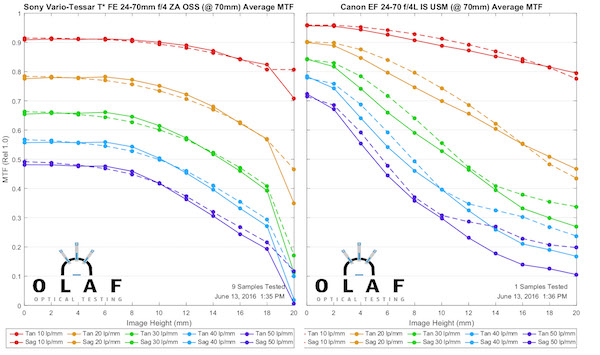

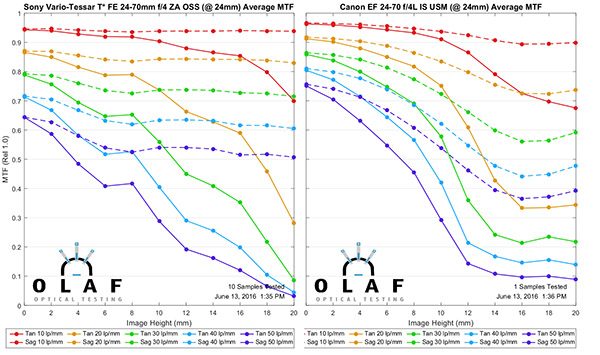

The logical comparison for the Sony 24-70 f/4 is the Canon 24-70 f/4 IS L lens. Unfortunately, I only have new-method results for the Canon at 24mm and 70mm, so you’ll have to cope with not having a 50mm comparison. But here’s the MTF curves for the Sony at three focal lengths, compared to the Canon at two.



OlafOpticalTesting, 2016

OlafOpticalTesting, 2016



OlafOpticalTesting, 2016

OlafOpticalTesting, 2016



OlafOpticalTesting, 2016

OlafOpticalTesting, 2016



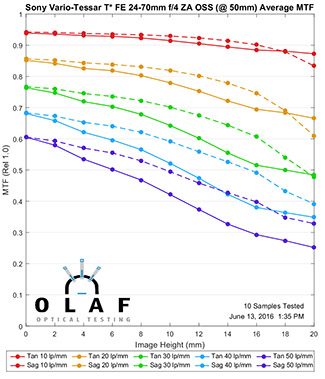

As you can see, the Canon is clearly better at the 70mm end, and better at the 24mm end. The Sony, however, is at it’s best at 50mm in the center of its zoom range, especially off axis where it maintains sharpness with very little astigmatism all the way to the edge of the field.

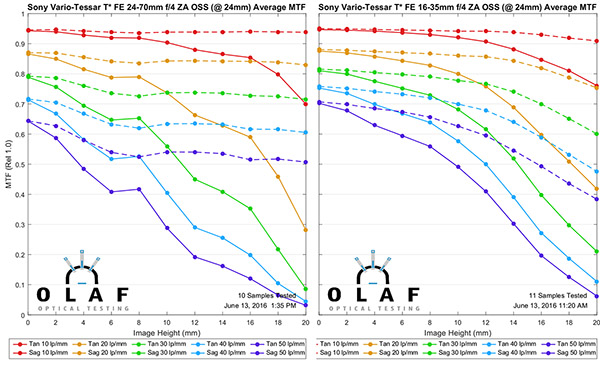

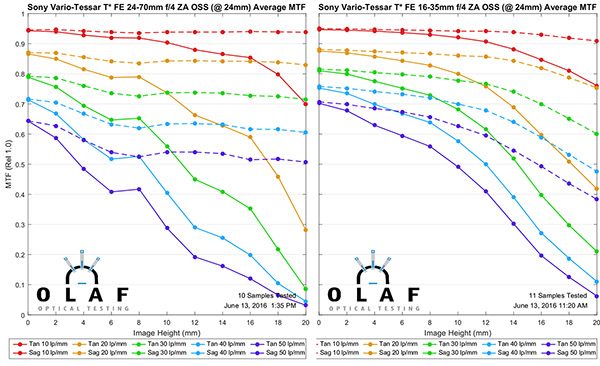

For a slightly different comparison, below are the Sony FE 16-35 f/4 and Sony FE 24-70 f/4 both measured at 24mm. The 16-35 f/4 is clearly better.

OlafOpticalTesting, 2016

OlafOpticalTesting, 2016

From an MTF point of view, the FE 24-70mm f/4 OSS is OK, but certainly not great.

Variance

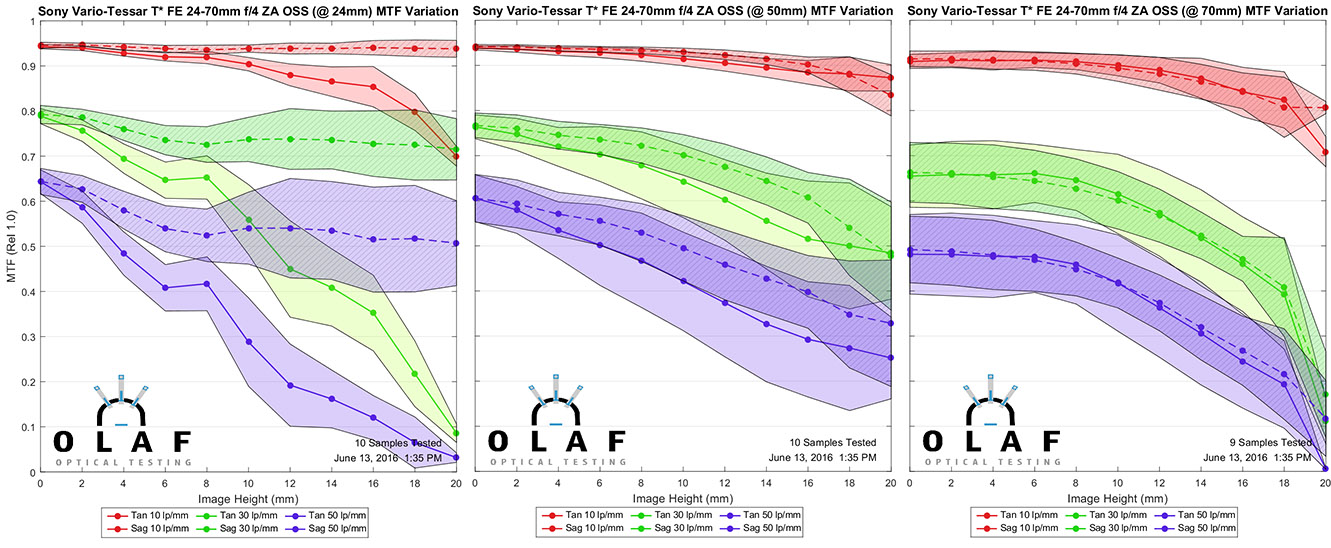

We’ll start with the variance curves for the Sony FE 24-70mm f/4 at the three different focal lengths we tested. It really is pretty good at 24mm and 50mm, but there is a bit of worrisome center variation at 70mm. (Center variation is associated with an overall sharpness difference, where off-axis variance often indicates more of a tilt.) For a zoom, though, this isn’t a bad performance, as we’ll see below.

OlafOpticalTesting, 2016

OlafOpticalTesting, 2016

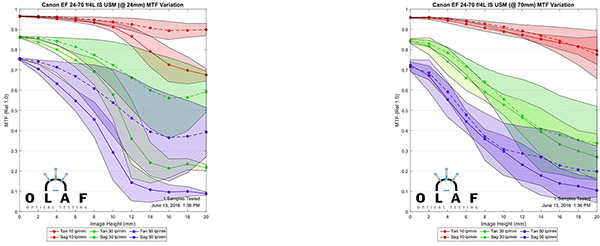

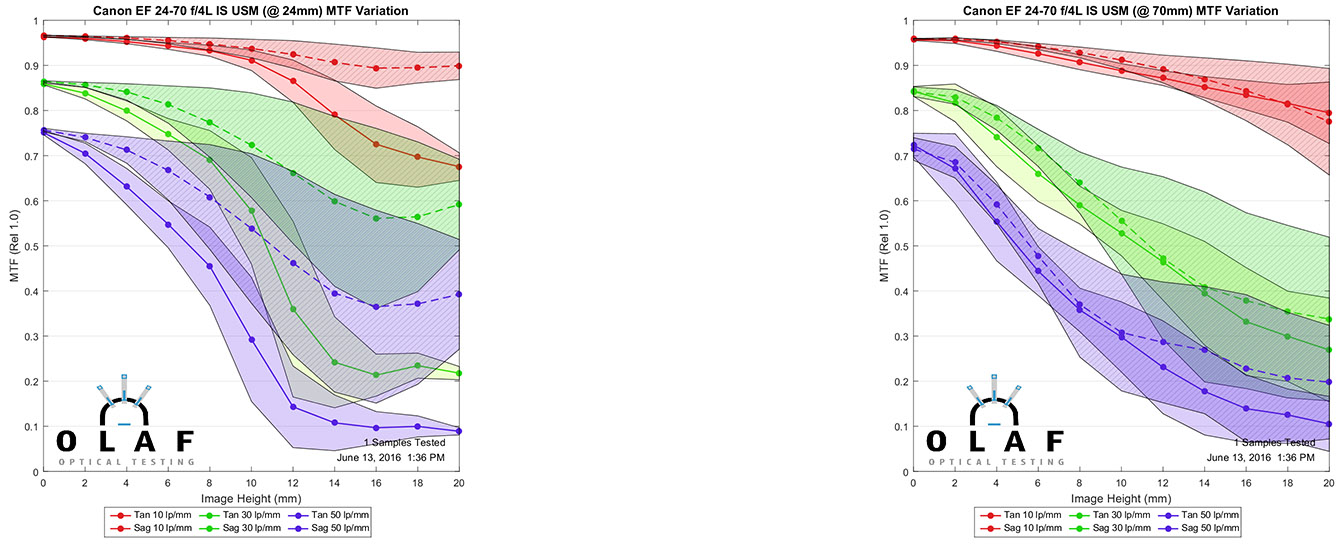

The Canon 24-70mm f/4 IS again only has curves at 24mm and 70mm. As you can see in the graphs below, off-axis it has more variance than the Sony, but doesn’t exhibit the center variance at 70mm that the Sony did.

OlafOpticalTesting, 2016

OlafOpticalTesting, 2016

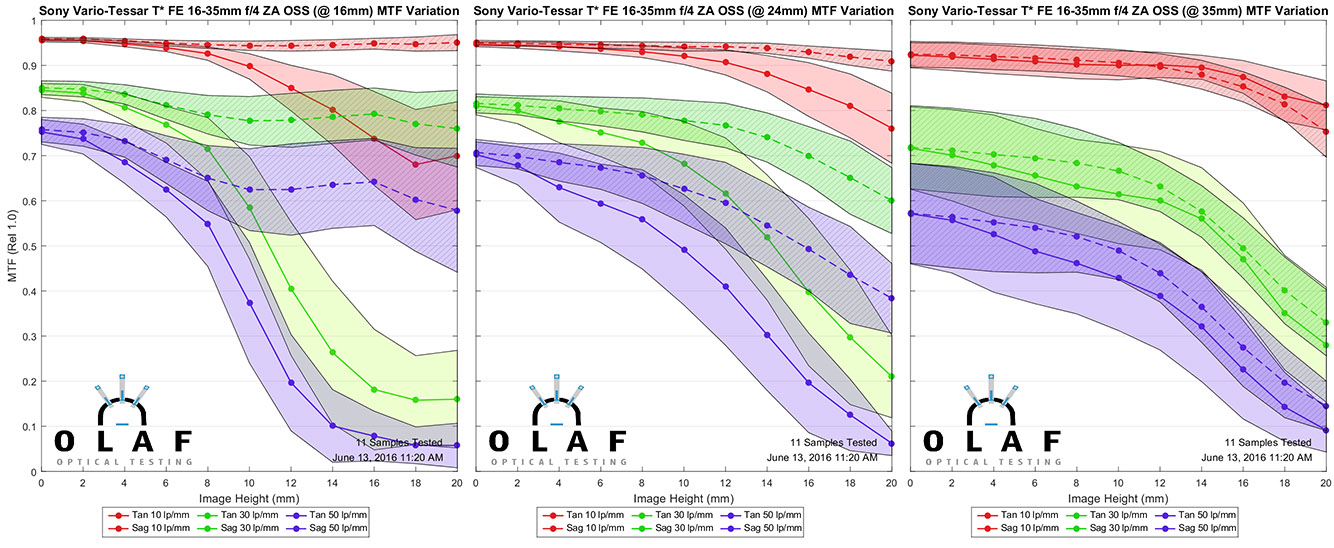

The Sony FE 16-35 f/4 we saw earlier looks similar too.

OlafOpticalTesting, 2016

OlafOpticalTesting, 2016

So the bottom line is while there is definitely some copy-to-copy variation among the Sony f/4 zooms, it doesn’t really appear worse than most zoom lenses.

Summary

I will say I’m pleasantly surprised. The Sony FE 24-70mm f/4, while not a great lens is adequate (note I didn’t say adequate for the price, I said adequate) and its copy-to-copy variation isn’t bad. The Sony FE 16-35mm f/4 actually is excellent for an ultra-wide zoom, and again, it seems to have decent sample variation. Would I buy them? Probably not the 24-70 f/4 unless I had no options, but I wouldn’t hesitate on the 16-35mm f/4.

I realize we’ve put out our Sony FE test results in bits and pieces, working through a lot of problems and figuring things out. That’s what this blog is about: trying to figure things out and showing them to you as we go along. But I also realize a lot of you want that information without having to Google 6 different articles to find the test results you’re looking for. So in the next week or so I’ll put out a summary article just showing all the FE MTF and variation charts in one place.



Roger Cicala, Aaron Closz, and Diego Martinez

Lensrentals.com

June, 2016

Author: Roger Cicala

I’m Roger and I am the founder of Lensrentals.com. Hailed as one of the optic nerds here, I enjoy shooting collimated light through 30X microscope objectives in my spare time. When I do take real pictures I like using something different: a Medium format, or Pentax K1, or a Sony RX1R.
