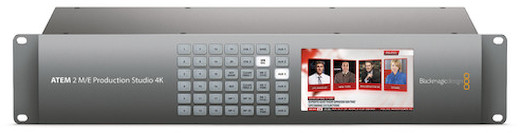

Blackmagic Design ATEM 2 M/E Production Studio 4K

Blackmagic Design ATEM 2 M/E Production Studio 4K

While we no longer rent this product, we do carry the Blackmagic Design ATEM 4 M/E Broadcast Studio 4K. You may also find alternatives in the Recommended section on the left-hand side of this page.

  • Ingests up to UHD 4K/29.97p or 1080/59.94p

  • Twenty 6G-SDI inputs & one HDMI input

  • Balanced XLR inputs and outputs for program and monitor feeds

  • Two independently operating switchers in one unit

Read More

Specifications

Brand

Blackmagic

Inputs/Outputs

Audio Inputs

  • Digital: SDI (x20), HDMI (1x)
  • Analog: XLR (2x), Stereo RCA
  • Other: XLR Timecode, XLR Talkback
Audio Outputs
  • Digital: 2-Channel on each SDI output
  • Analog: XLR Program (2x)
  • Other: XLR Timecode, XLR Talkback
Inputs
  • HDMI type-A (10-bit SD/HD/Ultra HD switchable) (1x)
  • 6G-SDI (10-bit SD/HD/UHD) (20x)
Outputs
  • HDMI: Program (1x), Multi-View (2x)
  • SDI: Program UHD (3x), Program HD (1x), Multi-View (2x)
Additional Inputs/Outputs
  • Ethernet (10/100/1000 BaseT)

Item Type

Switcher

Video Effects

Keying

  • Upstream Keyer (4x)
  • Downstream Keyer (2x)
  • Chroma Keyer (4x)
  • Linear/Luma Keyer (7x)
Media Pool
  • Media Players (2x)
  • Still Image Capacity: 32 with fill and key
  • Still Formats: PNG, TGA, BMP, GIF, JPEG, and TIFF
  • Maximum Clip Length: UHD – 180 frames, 1080p – 720 frames, 720p – 1600 frames
  • Video Formats: TGA sequence
  • Audio Formats: WAV, MP3, AIFF

Video Processing

Sampling/Precision

  • 4:2:2
  • 10-bit
Color Space
  • REC 601
  • REC 709
  • REC 2020
Formats
  • 2160p: 23.98/24/25/29.97
  • 1080p: 23.98/24/25/29.97/50/59.94
  • 1080i: 50/59.94
  • 720: 50/59.94
  • NTSC: 525/59.94 – 4:3/16:9
    PAL: 625/25 – 4:3/16:9
Processing Delay
  • 2 lines
Computer Input Support
  • HDMI input only
  • 720 × 480i 59.94 Hz
  • 720 × 576i 50 Hz
  • 1280 × 720 50/59.94 Hz
  • 1920 × 1080 50/59.94 Hz
  • 3840 × 2160 23.98/24/25/29.97 Hz
