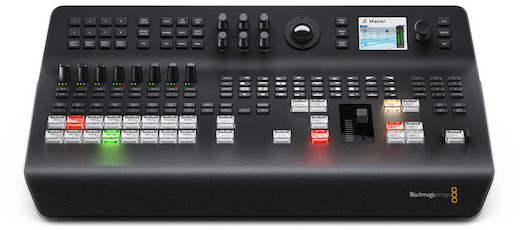

The Blackmagic Design ATEM Television Studio Pro 4K is an 8-input SDI only switcher with a built-in control surface capable of accepting signals up to UHD 4K/60p. Key features include:
8 channels of 12G-SDI input
Ingests up to UHD 4K/60p video
2-channel audio input via XLR
Integrated control surface
4K SDI Switcher. The Blackmagic Design ATEM Television Studio Pro 4K offers switching of 8 12G-SDI video signals at up to a resolution of UHD 4K/60p without having to match inputs.
Integrated Control Surface. This is an all-in-one unit with video inputs found of the rear of an integrated control surface. There are a variety of important functions made quickly available via dedicated buttons on the top of the switcher.
Built-In Effects. The switcher is preloaded with video transitions, effects, color grading, and chroma keying, and it features a dedicated DVE processor to make it happen smoothly. A few more of the options at your disposal include PiP, media playback, and live video scaling.
Inputs & Outputs. The stars of the show are 8 12G-SDI inputs with re-sync and a standards converter. Each input has a BNC output for tally and program returns to compatible blackmagic cameras. There is also an SDI PGM output and 8-channel multiview available via SDI and HDMI. Audio input is available via two XLR or one 1/4-inch mic input. Audio can be monitored with a 1/4-inch headphone output.
