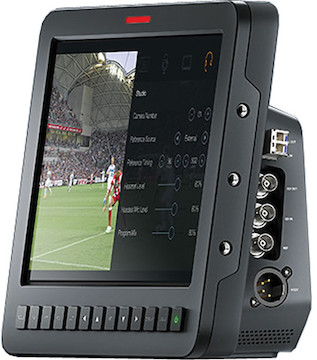

Blackmagic Design Studio Camera 4K 2

Resources

  • Manual
  • Blackmagic Design Studio Camera 4K 2

    The Blackmagic Design Studio Camera 4K 2 is a compact and lightweight Ultra HD designed for live production, and the predecessor to the BMD Studio Camera 4K Pro Key features include:

    • Compact, lightweight, and durable build

    • Can feed a 10-bit 4:2:2 signal to any 4K-capable recorder

    • Built-in talkback, illuminated tally, and 10-inch LCD

    • Active Micro 4/3 mount

    Read More

    Specifications

    Brand

    Blackmagic

    Camera Type

    Camcorder

    Imaging

    Sensor

    • Type: S16
    • Size 13.056 × 7.34mm
    Crop Factor
    • Approximately x2.88
    Dynamic Range
    • 11 Stops

    Inputs/Outputs

    Video Input

    • 1x 1.5G/3G/6G/12G SDI
    Video Output
    • 1x 1.5G/3G/6G/12G SDI
    Audio Inputs
    • 1x XLR Analog
    • Mic/Line switchable
    • 48+ Supported
    Additional Inputs/Outputs

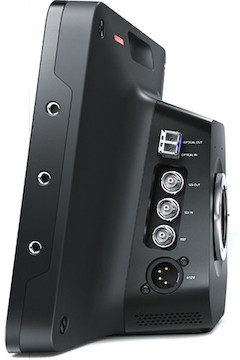

    • Remote: 1x 2.5mm LANC
    • Reference: Tri-Sync or Black Burst
    • Optical Fiber I/O (module by request)

    Item Type

    Camera

    Monitoring

    Display Screen

    • 10.1” TFT-LCD
    • 1920 × 1200
    Display Type
    • Fullscreen Live View
    • Fullscreen Program View
    Audio
    • Camera/Input
    • Fixed Wing Plug compatible for talkback/audio
    Tally
    • Front/Rear

    Mount

    Micro 4/3rds

    Physical

    Dimensions (W x D x H)

    • 10.05” x 4.47” x 7.66”
    Weight
    • 4.4 lbs.
    Accessory Mounts
    • Tripod: 2x ⅜” Tripod Mount
    • Other: 4x Top ¼”-20 UNC threaded mounting points, 6x Side ¼”-20 UNC threaded mounting points (3x left, 3x right)

    See All
