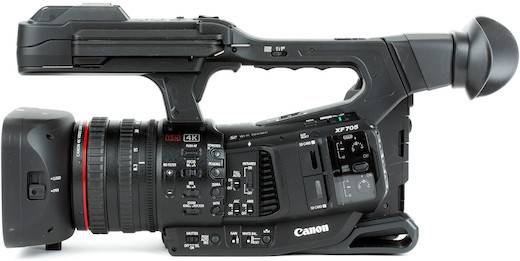

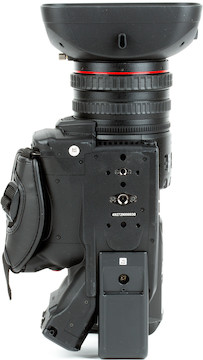

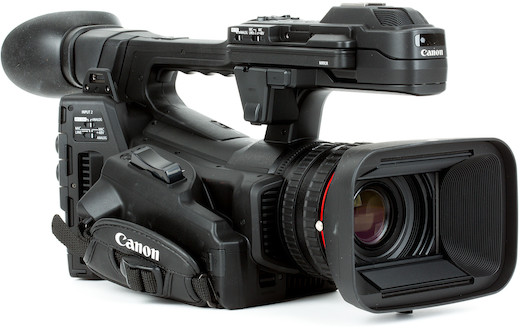

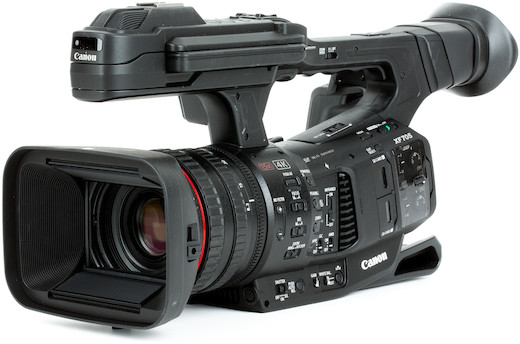

Canon XF705

Resources

  • Manual
  • Canon XF705


    The Canon XF705 is the flagship camcorder update to the Canon XF305. It has a 1", UHD 4K sensor capable of 60fps 4:2:2 10-bit recording to dual SD cards in a very efficient H.265 codec. Key features include:

    • 1-inch, 13.4 MP, UHD 4K, CMOS sensor

    • 25.5-382.5mm equivalent, f/2.8-4.5, 15x optical zoom lens

    • Records up to 4K/60fps, 4:2:2 10-bit, H.265 files to dual SD media slots

    • Dual pixel auto focus & built-in 3-stop motorized ND filters

    Read More

    Specifications

    Brand

    Canon

    Camcorder Type

    ENG-style

    Camera Type

    Camcorder

    Imaging

    Sensor

    • Type: 1.0-inch single-plate CMOS
    • Effective Pixels: 3840X2160
    Bit Depth
    • 4:2:2 10 bit (internally)

    Inputs/Outputs

    Audio Inputs

    • 2x XLR (1x – handle, 1x – rear I/O cluster)
    • 1x 3.5mm stereo mini-jack
    Audio Output
    • 3.5mm stereo mini-jack
    Video Output
    • 1x SDI
    • HDMI
    Additional Inputs/Outputs
    • Remote: 2.5mm LANC
    • Ethernet (RJ-45): 1000BASE-T Compatible
    • DC In: 24.0V DC (with supplied AC adapter)

    Item Type

    Camera

    Lens

    Canon 15x Optical Zoom

    • Servo/Manual
    • Control Rings: Focus, Zoom, Iris
    Effective Focal Length
    • 25.5 – 382.5mm
    Max Aperture
    • f/2.8-4.5
    Minimum Focusing Distance
    • 0.4" / 1.0 cm (wide angle)
    • 23.6"/ 59.9 cm (telephoto)
    Image Stabilization Modes
    • Dynamic IS
    • Powered IS
    • Standard IS
    • IS Off
    Filter Diameter
    • 58mm

    Monitoring

    Viewfinder

    • 0.46-inch OLED
    • Approximately 100% field of view
    LCD Panel
    • 4-inch LCD
    • Touchscreen operation
