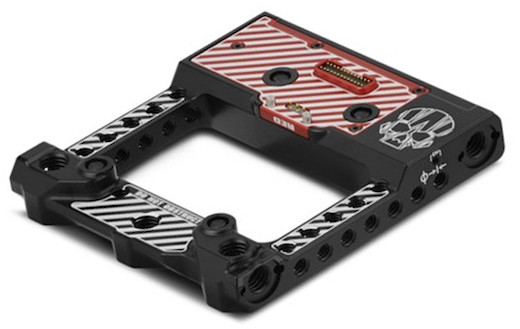

The RED DSMC2 Tactical Top Plate is a proprietary DSMC2 camera top plate that allows you to offset a cabled DSMC2 monitor and adds an unpowered 3-pin Fischer port with an array of 1/4"-20 & 3/8"-16 threaded mounting options. Key features include:
Great for mounting the RED Touch Ultra-Bright monitor on shoulder & gimbal rigs
Provides a plethora of 1/4"-20 & 3/8"-16 threaded mounting holes
Features a 3-pin POGO for smart handles, 3-pin Fischer port for start/stop, & 16-pin 1B port for monitors/evfs
Machined, 7075 aluminum construction
Monitor Offset. The RED DSMC2 Tactical Top Plate works great for mounting a RED DSMC2 Touch 7-inch Ultra-Brite LCD in a position viewable for shoulder mount and gimbal operators. If you plan on gimbal mounting that monitor, you’ll probably want the Wooden 36-inch LCD/EVF Cable as well.
Pass-Through I/O Ports. The top plate has a pass through for smart handles like the RED DSMC2 Top Handle. It also features an unpowered, 3-pin, Fischer port for connecting start/stop triggers and a 16-pin 1B LCD/EVF connector that allows for easy extension of RED Touch monitoring.
Accessory Threads. A RED top plate would not be complete without the swiss-cheese assortment of 1/4"-20 & 3/8"-16 threaded mounting holes. The 3/8"-16 holes feature ARRI standard spacing for guide pins and extra accessory security.
Compatibility. This top plate is only compatible with RED DSMC2 brains running firmware v7.0.0 or later. It is designed not to obstruct other first-party RED accessories, but if you are using third-party accessories, you could encounter issues with accessory overlap. If you have specific compatibility concerns, please contact us.
