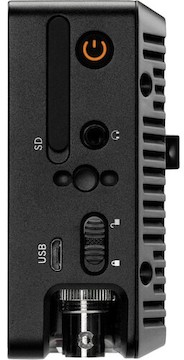

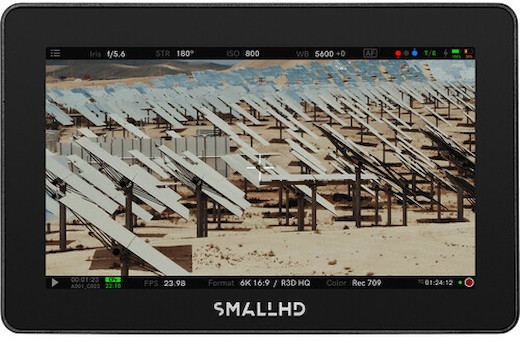

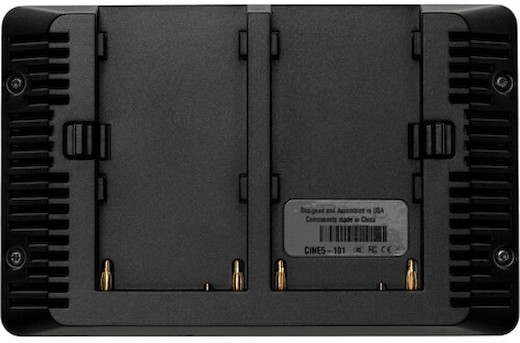

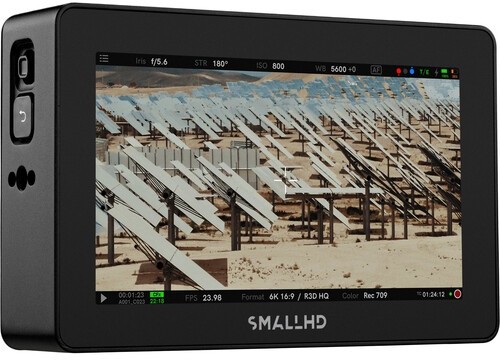

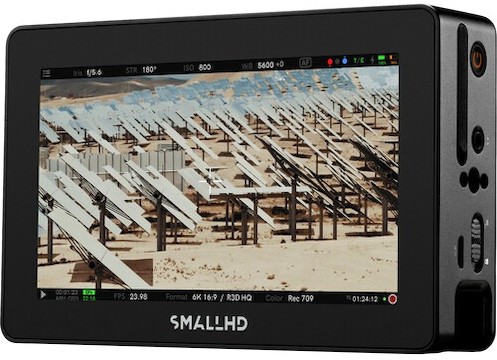

SmallHD CINE 5 Touchscreen On-Camera Monitor

Product images are stock photography and do not represent the contents of a purchase.

Product images are stock photography and do not represent the contents of a purchase.

SmallHD CINE 5 Touchscreen On-Camera Monitor

In case you need it:

The SmallHD CINE 5 Touchscreen On-Camera Monitor features a bright, LCD touchscreen for monitoring your camera. Key features include:

5-inch 1920 × 1080 touchscreen display
HDMI & 3G-SDI inputs & outputs
2-Pin locking power input
Lightweight design

Specifications

Brand	SmallHD
Display	Panel Type LCD Display Size 5.0" Resolution 1920 × 1080 Aspect Ratio 16:9 Touchscreen Yes Maximum Brightness 2000 cd/m2 Bit Depth / Color Support 10-Bit (1.07 Billion Colors) Pixels Per Inch (ppi) 40 ppi Color Gamut 100% DCI-P3 Image Controls Anamorphic De-Squeeze False Color Focus Peaking Histogram Pixel-to-Pixel Zoom RGB Parade Vectorscope Waveform Zebra Video I/O 1 x HDMI 2.0 Input 1 x HDMI 2.0 Loop Output 1 x BNC (3G-SDI) Input 1 x BNC (3G-SDI) Loop Output Embedded Audio HDMI: 8-Channel SDI: 8-Channel Audio I/O 1 × 1/8" / 3.5 mm Headphone Output Built-In Speaker None Power I/O 1 x LEMO 2-Pin (34 VDC) Input Other I/O 1 x LEMO 5-Pin 2.0 Output Media/Memory Card Slot None
Item Type	Monitoring & Recording
Monitoring & Recording Type	Monitor
Mounting	4 × 1/4"-20 Female
Physical	Material Aluminum Weight 14.7 oz
Video Format	HDMI (8/10/12/16-Bit 4:4:4/4:2:2 YCC) 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080i: 120/119.88/100/60/59.94/50 720p: 120/119.88/100/60/59.94/50/30/29.97/25/24/23.98 576p: 200/100/50 480p: 240/239.76/120/119.88/100/60/59.94 480i: 240/239.76/120/119.88/100/60/59.94 576i: 200/100/50 SDI (10-Bit 4:2:2 YCC) 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080PsF: 30/29.97/25/24/23.98 1080i: 120/119.88/100/60/59.94/50 720p: 60/59.94/50/30/29.97/25/24/23.98 576i: 50 480i: 59.94
Video Signal Conversion	SDI to HDMI UHD 4K: 30/29.97/25/24/23.98 1080p: 119.88/100/60/59.94/50/30/29.97/25/24/23.98 1080i: 120/119.88/100/60/59.94/50 720p: 240/239.76 HDMI to SDI 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080i: 120/119.88/100 720p: 60/59.94/50/30/29.97/25/24/23.98 480i: 59.94 576i: 50
