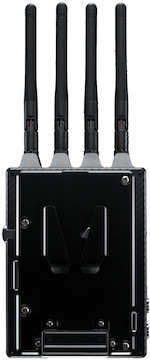

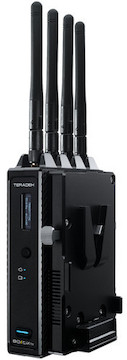

The Teradek Bolt 4K 750 12G-SDI/HDMI Transmitter (V-Mount) is a zero-delay wireless transmitter with HDMI and SDI inputs and outputs. It’s compatible with the entire Bolt 4K line. Key features include:
Transmit wireless UHD 4K60p video up to 750 feet
10-bit 4:2:2 video via 12G-SDI; 8-bit 4:4:4 video via HDMI
V-Mount pass-thru plates included
V-Mount batteries not included
Up to 4K60p Transmission. The Teradek Bolt 4K 750 12G-SDI/HDMI Transmitter lets you wirelessly transmit up to 4K60p lossless video to up to six receivers with zero delay from up to 750 feet along line of sight. It also supports HDR workflows, 10-bit 4:2:2 video via 12G-SDI, and 8-bit 4:4:4 via HDMI so you can monitor every shot in pristine detail.
Compatibility. The Bolt 4K 750 12G-SDI/HDMI Transmitter is cross-compatible with all Bolt 4K and Bolt 4K LT series devices over the 5 GHz signal spectrum.

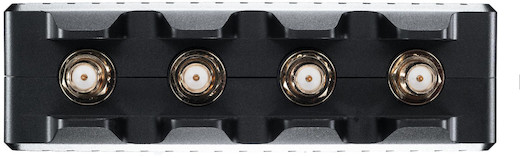

SDI & HDMI Input & Output. This transmitter accepts video via 12G-SDI or HDMI and can output SDI and HDMI with cross conversion between the two. An 12G-SDI loop-through connector allows passthrough of transmitter video to monitors and secondary wireless devices.

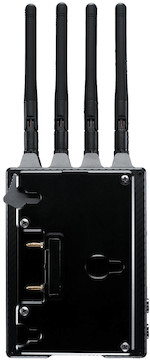

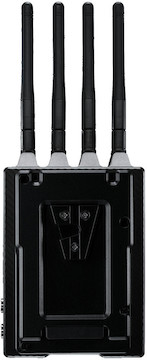

V-Mount Plates Included. This transmitter includes one D-Tap to 2-pin LEMO cable, one 18W 6-foot AC adapter, and male and female V-Mount plates. Please note that this rental does not include batteries, but they’re available here as separate rental items. If you prefer Gold Mount batteries, we rent the Teradek Bolt 4K 750 12G-SDI/HDMI Transmitter – Gold Mount.

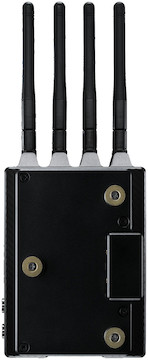

Additional Features. Built-in AES-256 encryption keeps your footage fully protected. The Teradek Bolt app for iOS and Android connects via Bluetooth and gives you a spectrum analyzer, channel-selection tools, and remote configuration. A bright OLED display makes it easy to always know your status, and there are 1/4"-20 and M3 mounting threads that let you mount this transmitter on a wide array of cameras, cages, and rigs.
