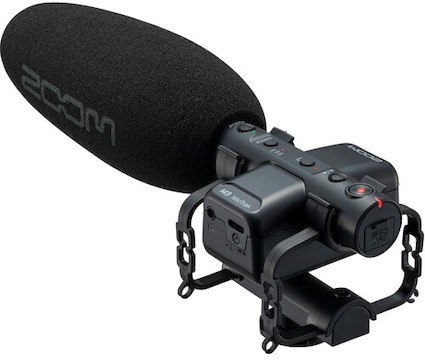

Zoom M3 MicTrak Stereo Shotgun Microphone and Recorder

Resources

  • Manual
  • Zoom M3 MicTrak Stereo Shotgun Microphone and Recorder


    The Zoom M3 MicTrak Stereo Shotgun Microphone and Recorder is a lightweight, four channel, combination shotgun microphone and recorder perfect for reporting and documentary audio. Key features include:

    • Bidirectional stereo shotgun microphone

    • 3.5mm headphone jack

    • AA battery or USB-C power

    • No gain adjustment needed

    Read More

    Specifications

    Audio Type

    Shotgun Mic

    Brand

    Zoom

    Connectivity Analog I/O
    • 1 × 1/8" / 3.5 mm TRS Female Headphone Output
    • 1 × 1/8" / 3.5 mm TRS Female Line Output
    Digital I/O
    • None
    Phantom Power
    • None
    Plug-In Power
    • No
    System Connection
    • 1 x USB-C (2.0)
    Audio Interface Capability
    • Stereo Only
    General

    Form Factor

    • Field Recorder
    Primary Use Applications
    • Audio-for-Video
    Number of Tracks
    • 4
    Number of Input Channels
    • 2
    Maximum Sampling Rate
    • 48 kHz / 32-Bit (PCM)
    Microphone
    • Built-In Supercardioid Shotgun, Mid/Side Configuration
    • Built-In Figure-8 Shotgun, Mid/Side Configuration
    Number of Microphone Preamps
    • 2 Preamps
    Built-In Speaker
    • No
    Display
    • None
    Memory Card Support
    • microSDHC (4 GB to 32 GB)
    • microSDXC (64 GB to 1 TB)
    Internal Storage
    • None
    Special Features
    • None

    Item Type

    Audio

    Performance

    Max Output Level

    • +1 dBu
    Headphone Output Power
    • 20 mW per Channel into 32 Ohms
    Microphone Sensitivity
    • -39 dB (Mid/Side-Bidirectional)
    Microphone Max SPL
    • 132 dB SPL
    • 122 dB SPL

    Physical

    Included Accessories

    • Audio/Mic Cable
    Windscreen

    Power

    Power Options

    • Battery
    • USB Bus Power
    • AC/DC Power Adapter
    Battery Type
    • 2 x AA (Not Included)
    Approximate Battery Life
    • WAV 48 kHz/32-Bit: 12 Hours (AA Alkaline)
    AC/DC Power Adapter
    • 5 VDC at 1 A (Not Included)
