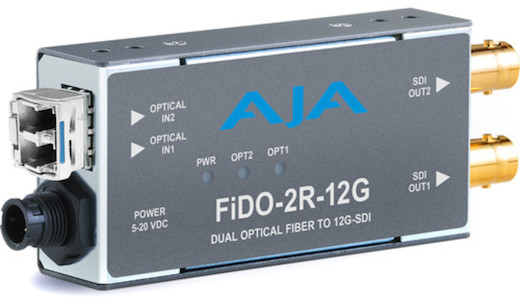

AJA 2-Channel Single-Mode LC Fiber to 12G-SDI Receiver

$100.00
/
7 Day

Rental

Interested in purchasing?

Includes

  • FiDo 2R 12G RX
  • 12G SFP module for RX
  • AC adapter

Resources

  • Manual
  • AJA 2-Channel Single-Mode LC Fiber to 12G-SDI Receiver

    The AJA 2-Channel Single-Mode LC Fiber to 12G-SDI Receiver is a stand-alone Fiber-to-SDI converter capable of ingesting two simplex / one duplex fiber input via LC connectors and converting it to two independent 12G-SDI out channels. Key features include:

    • 2 simplex / 1 duplex LC to 2 12G-SDI out channels

    • Supports UHD, HD, or SD video signals up to 60fps

    • Auto detection of 3G, 6G, or 12G-SDI w/ reclocking

    • SFP module and power supply included

    Read More

    Q & A

  • Can I use this with non-AJA SFP modules?
    • No. This device should only be used with SFP modules manufactured by AJA.

  • Specifications

    Brand

    AJA

    Dimensions

    4.6″ × 1.71 " x.85" (117 × 43.5 × 21.6mm)

    Inputs/Outputs

    Input

    • 2-channel Single Mode LC Fiber
    • SMPTE 297/259/292/424/2081/2082
    Output
    • 2-channel 12G-SDI BNC
    • SMPTE 259/292/424/2081/2082

    Item Type

    Monitoring

    Monitoring Type

    Accessories

    Performance

    Nominal Wavelength

    • 1260 nm – 1620 nm
    Optical Sensitivity
    • -9 dBm (min 12 Gbps)
    • -10 dBm (min 3 Gbps)
    Overload Power
    • -2 dBm (min)

    Power
    • 3.5W (max)
    • 5-20VDC power (AC adapter included)
    Video Formats

    Data Transfer Rate

    • 270 Mbps – 12 Gbps
    Reclocking Rates (Mbps)
    • 270, 1.483, 1.485, 2.967, 2.97, 5.934, 5.94, 11.868, 11.88
    • Auto-selected
    • Additional rates pass-through only

    See All

    Includes

    • FiDo 2R 12G RX
    • 12G SFP module for RX
    • AC adapter

    Specifications

    Brand

    AJA

    Dimensions

    4.6″ × 1.71 " x.85" (117 × 43.5 × 21.6mm)

    Inputs/Outputs

    Input

    • 2-channel Single Mode LC Fiber
    • SMPTE 297/259/292/424/2081/2082
    Output
    • 2-channel 12G-SDI BNC
    • SMPTE 259/292/424/2081/2082

    Item Type

    Monitoring

    Monitoring Type

    Accessories

    Performance

    Nominal Wavelength

    • 1260 nm – 1620 nm
    Optical Sensitivity
    • -9 dBm (min 12 Gbps)
    • -10 dBm (min 3 Gbps)
    Overload Power
    • -2 dBm (min)

    Power
    • 3.5W (max)
    • 5-20VDC power (AC adapter included)
    Video Formats

    Data Transfer Rate

    • 270 Mbps – 12 Gbps
    Reclocking Rates (Mbps)
    • 270, 1.483, 1.485, 2.967, 2.97, 5.934, 5.94, 11.868, 11.88
    • Auto-selected
    • Additional rates pass-through only

    See All
