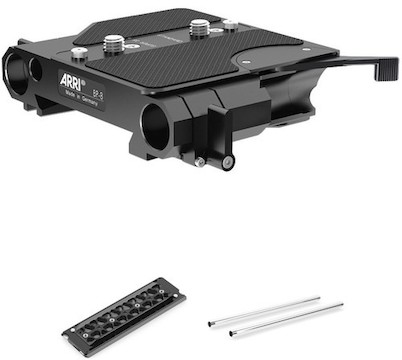

The ARRI ALEXA LF 19mm Studio Support Kit is a 19mm, studio spaced bridgeplate and dovetail system for select ARRI cameras like the ALEXA LF. Key features include:
19mm rod support for the ARRI ALEXA LF
Compatible with most heavy-duty fluid heads
12" dovetail with safety catch
Includes 18" rods, bridgeplate, and bridgeplate adapter
ARRI ALEXA Compatibility. This ARRI ALEXA LF 19mm Studio Support Kit is a first party support system designed for nearly all large-format ARRI ALEXA cameras, with the exception of the ALEXA Studio. This kit is not natively compatible with the ALEXA Mini or Mini LF.

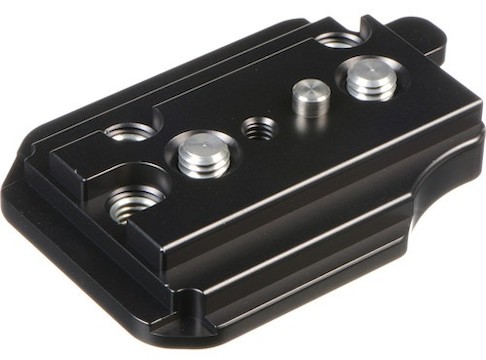

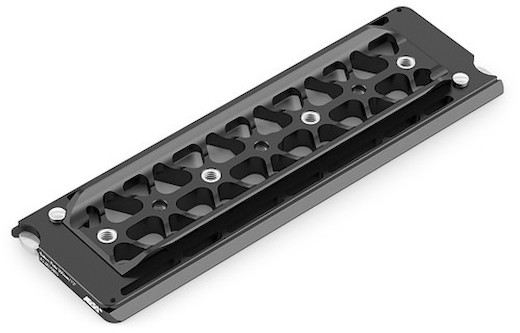

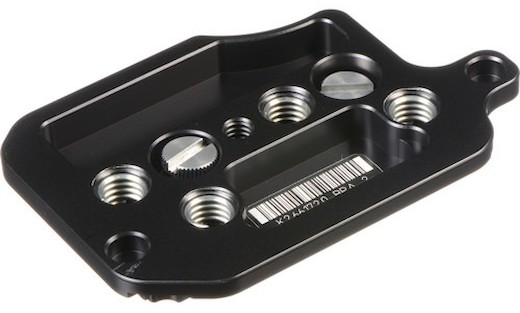

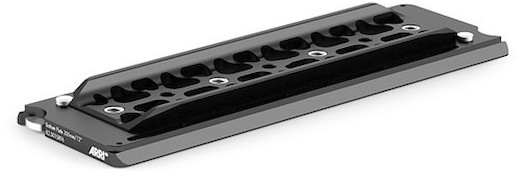

Big Rig Support. The dovetail attaches to most standard fluid heads using a row of 1/4"-20 and 3/8"-16 insets for optimal balance. The bridge plate adapts to the bottom curve of an ALEXA using the included BPA-2 adapter, and features 19mm rail clamps with standard studio spacing. Both plate and dovetail are equipped with safety latches so you can confidently build your rig.
Rods Included. We include a pair of Wooden Camera 19mm thick-walled aluminum rods that are 18 inches long. These rods allow you to mount matte boxes, lens control systems, manual follow focus gears, and more to your rig, and are long enough to accommodate large cinema zoom lenses, including the ARRI 45-135mm T2.8 Signature Zoom and 65-300mm T2.8 Signature Zoom.
