ARRI AMIRA Live Studio SMPTE Kit (PL)

$3846.00

7 Day

Rental

Arrival Date

Return Date

Pricing Chart

Shipping Rates

Interested in purchasing?

Includes

ARRI AMIRA Live with 1820-12G Fiber Camera Adapter
ARRI 1810U-12G SL Fiber Base Station
ARRI AMIRA PL LDS Lens Mount
ARRI VMM-1 Viewfinder Monitor w/ Quick Release Yoke
ARRI QRP-1 Quick Release Plate
ARRI WPA-1 Wedge Plate Adapter

Resources

VCT-14 Manual

VMM-1 Manual

ARRI Tools

ARRI AMIRA Live Studio SMPTE Kit (PL)

This ARRI AMIRA Live Studio SMPTE Kit (PL) is a ARRI based package we assembled that consists of the necessary accessories for live broadcasting with the ARRI AMIRA Live with 1820-12G Fiber Camera Adapter. Feel free to click any of the highlighted links below for additional information on each product. Looking for an EF version of this kit? You can find it here.

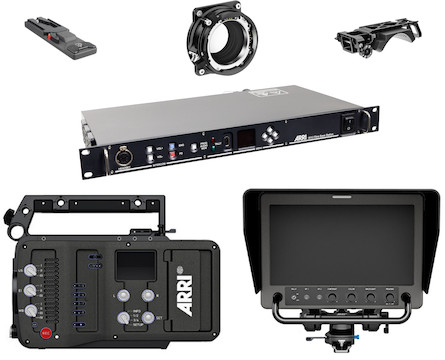

The ARRI AMIRA Live Studio SMPTE Kit (PL) includes:

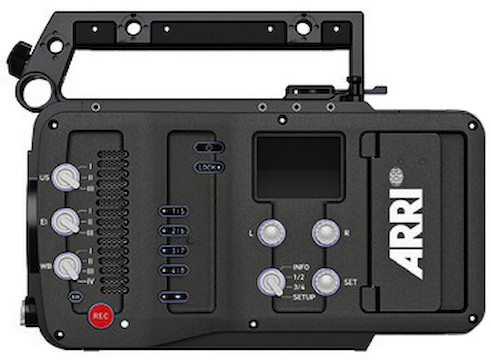

ARRI AMIRA Live with 1820-12G Fiber Camera Adapter

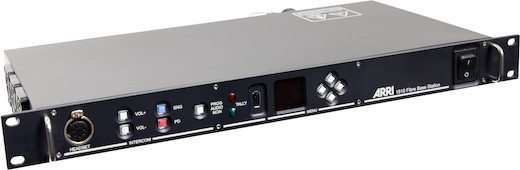

ARRI 1810U-12G SL Fiber Base Station
ARRI AMIRA PL LDS Lens Mount

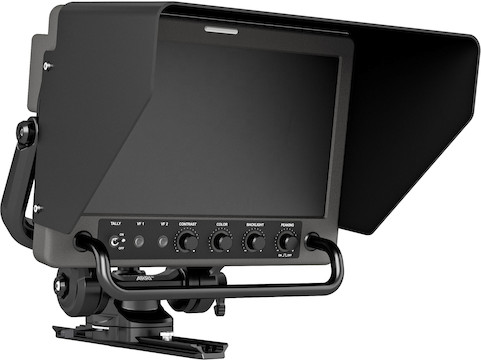

ARRI VMM-1 Viewfinder Monitor w/ Quick Release Yoke

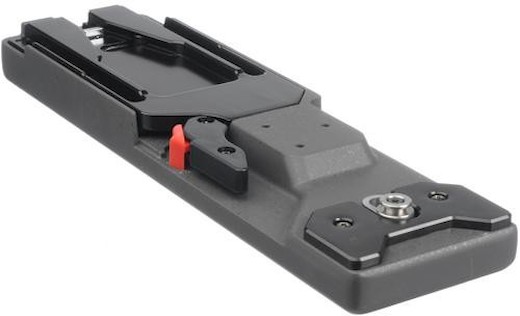

ARRI QRP-1 Quick Release Plate

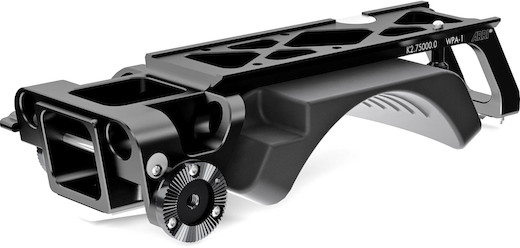

ARRI WPA-1 Wedge Plate Adapter

Q & A

What else will I need?

You’ll need a SMPTE 311M LEMO cable like the Camplex SMPTE 311M / 304M Hybrid Fiber Cable – 50 ft or Camplex SMPTE 311M / 304M Hybrid Fiber Cable – 250 ft to power the camera and facilitate data transfer.

Can I record onto the internal CFast 2.0 cards with AMIRA Live during a live production?

Yes, AMIRA Live supports all functions supported with the normal AMIRA. You can record locally to the recording media in parallel, also using a different frame rate or in Log C.

Specifications

Audio Recording	4-Channel 24-Bit 48 kHz LPCM Audio
Brand	ARRI
Camera Mount	PL
Camera Type	Cinema
Compatible Media	CFast
Dynamic Range	14 stops
Inputs/Outputs	Video 1 x D-Sub 24W7 Input/Output 2 x BNC (6G-SDI) Output Audio 2 x XLR 3-Pin Mic/Line (48 V Phantom Power) Input 1 × 1/8" / 3.5 mm TRS Stereo Headphone Output 1 x XLR 5-Pin Mic/Line (48 V Phantom Power) Input Power 1 x LEMO 8-Pin (10.5 to 34VDC) Input 1 x Fischer 3-Pin (24VDC) Output 1 x LEMO 2-Pin (12VDC) Output 1 x Hirose 4-Pin (12VDC) Output 1 x LEMO 6-Pin (24VDC) Output Other 1 x BNC (Timecode) Input/Output 1 x BNC (Return) Return Input/Output 1 x LEMO 6-Pin Control Input/Output 1 x Hirose 12-Pin Data 1 x RJ45 (Ethernet) Control/Data 2 x Unspecified USB (USB 2.0) Data
Internal Video Recording Modes	ARRIRAW 2880 × 1620 from 0.75 to 48.00 fps MPEG-2/ProRes 422/ProRes 422 HQ/ProRes 422LT/ProRes 4444/ProRes 4444XQ 3840 × 2160 from 0.75 to 59.94 fps 3200 × 1800 from 0.75 to 59.94 fps 2048 × 1152 from 0.75 to 200 fps 1920 × 1080 from 0.75 to 200 fps
Item Type	Camera
Maximum Video Resolution	4K
Memory Card Slot	Dual Slot: CFast (CFast 2.0)
Screen Type	Detachable
Sensor	26.4 × 14.85 mm (Super35) CMOS
Sensor Size	Super35
Shutter Type	Electronic rolling shutter
Stabilization	No
Viewfinder Type	None
Weather Sealing	Yes
Wireless Connectivity	Wi-Fi and Bluetooth

See All

Includes

ARRI AMIRA Live with 1820-12G Fiber Camera Adapter
ARRI 1810U-12G SL Fiber Base Station
ARRI AMIRA PL LDS Lens Mount
ARRI VMM-1 Viewfinder Monitor w/ Quick Release Yoke
ARRI QRP-1 Quick Release Plate
ARRI WPA-1 Wedge Plate Adapter

Specifications

Audio Recording	4-Channel 24-Bit 48 kHz LPCM Audio
Brand	ARRI
Camera Mount	PL
Camera Type	Cinema
Compatible Media	CFast
Dynamic Range	14 stops
Inputs/Outputs	Video 1 x D-Sub 24W7 Input/Output 2 x BNC (6G-SDI) Output Audio 2 x XLR 3-Pin Mic/Line (48 V Phantom Power) Input 1 × 1/8" / 3.5 mm TRS Stereo Headphone Output 1 x XLR 5-Pin Mic/Line (48 V Phantom Power) Input Power 1 x LEMO 8-Pin (10.5 to 34VDC) Input 1 x Fischer 3-Pin (24VDC) Output 1 x LEMO 2-Pin (12VDC) Output 1 x Hirose 4-Pin (12VDC) Output 1 x LEMO 6-Pin (24VDC) Output Other 1 x BNC (Timecode) Input/Output 1 x BNC (Return) Return Input/Output 1 x LEMO 6-Pin Control Input/Output 1 x Hirose 12-Pin Data 1 x RJ45 (Ethernet) Control/Data 2 x Unspecified USB (USB 2.0) Data
Internal Video Recording Modes	ARRIRAW 2880 × 1620 from 0.75 to 48.00 fps MPEG-2/ProRes 422/ProRes 422 HQ/ProRes 422LT/ProRes 4444/ProRes 4444XQ 3840 × 2160 from 0.75 to 59.94 fps 3200 × 1800 from 0.75 to 59.94 fps 2048 × 1152 from 0.75 to 200 fps 1920 × 1080 from 0.75 to 200 fps
Item Type	Camera
Maximum Video Resolution	4K
Memory Card Slot	Dual Slot: CFast (CFast 2.0)
Screen Type	Detachable
Sensor	26.4 × 14.85 mm (Super35) CMOS
Sensor Size	Super35
Shutter Type	Electronic rolling shutter
Stabilization	No
Viewfinder Type	None
Weather Sealing	Yes
Wireless Connectivity	Wi-Fi and Bluetooth

See All

Resources

VCT-14 Manual

VMM-1 Manual

ARRI Tools

Reviews

See Reviews

Lensrentals.com offers rentals ranging in length from 1 to 90 days. The shopping cart will automatically update the quoted price as you adjust the length of your rental. Our most common rental periods are shown below:

No Coverage

Lenscap

LenscapPlus

Rental Period	Lenscap+	Rental Price	Total Price	Price Per Day (Approx.)
3 days	$510.00	$2715.00	$3225.00	$1075.00
4 days	$547.00	$2903.00	$3450.00	$862.50
7 days	$729.00	$3846.00	$4575.00	$653.57
10 days	$984.00	$5166.00	$6150.00	$615.00
14 days	$1276.00	$6674.00	$7950.00	$567.86
21 days	$1713.00	$8937.00	$10650.00	$507.14
30 days	$2151.00	$11199.00	$13350.00	$445.00
45 days	$2807.00	$14593.00	$17400.00	$386.67
60 days	$3281.00	$17045.00	$20326.00	$338.77
90 days	$4228.00	$21947.00	$26175.00	$290.83

Rental Period	Lenscap	Rental Price	Total Price	Price Per Day (Approx.)
3 days	$442.00	$2715.00	$3157.00	$1052.33
4 days	$474.00	$2903.00	$3377.00	$844.25
7 days	$632.00	$3846.00	$4478.00	$639.71
10 days	$853.00	$5166.00	$6019.00	$601.90
14 days	$1106.00	$6674.00	$7780.00	$555.71
21 days	$1485.00	$8937.00	$10422.00	$496.29
30 days	$1864.00	$11199.00	$13063.00	$435.43
45 days	$2433.00	$14593.00	$17026.00	$378.36
60 days	$2844.00	$17045.00	$19889.00	$331.48
90 days	$3666.00	$21947.00	$25613.00	$284.59

Rental Period	Rental Price	Price Per Day (Approx.)
3 days	$2715.00	$905.00
4 days	$2903.00	$725.75
7 days	$3846.00	$549.43
10 days	$5166.00	$516.60
14 days	$6674.00	$476.71
21 days	$8937.00	$425.57
30 days	$11199.00	$373.30
45 days	$14593.00	$324.29
60 days	$17045.00	$284.08
90 days	$21947.00	$243.86
