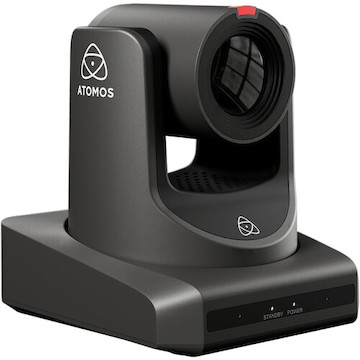

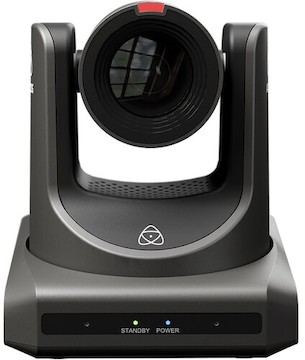

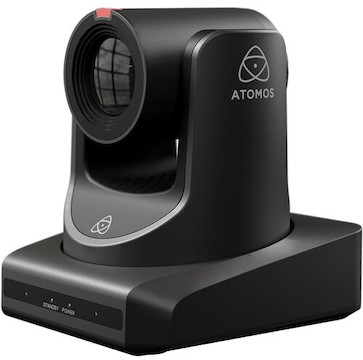

Atomos A-Eye HD-20X PTZ Camera with 20x Optical Zoom

$103.00
/
7 Day

Rental

Interested in purchasing?

Includes

  • Atomos A-Eye HD-20X PTZ
  • 72mm Push-On Cap
  • AC Adapter
  • Atomos IR Remote
  • USB 2.0 Type-A to Type-C Cable 6’
  • Case Insert
  • Case

Resources

  • Manual
  • Atomos A-Eye HD-20X PTZ Camera with 20x Optical Zoom

    The Atomos A-Eye HD-20X PTZ Camera with 20x Optical Zoom is a highly intelligent PTZ camera designed with AI tracking capabilities and a built-in 20x zoom lens.

    • HD resolutions up to 2K60

    • 1/2.8" UHD CMOS sensor

    • IP, HDMI, USB-A, and 3G-SDI outputs

    • Supports H.265/H.264/MJPEG compression

    Read More

    Q & A

  • Does this rental include any SDI, HDMI, or Ethernet cables?
    • No, this rental will not include anything other than a USB-C cable and the barrel AC adapter for power.

    • Check out our SDI, HDMI, and Ethernet cable inventory, or take a quick peek at the Recommended lists outlined for you on your desktop screen!

  • Specifications

    Brand

    Atomos

    Camera Mount

    None

    Camera Type

    PTZ

    Compatible Media

    External Storage

    Control

    Pan/Tilt

    • Tilt: 120° (-30 to 90°) at 1.7 to 100°/s
    • Pan: 340° (-170 to 170°) at 1.7 to 69.9°/s
    Tally Light
    • Yes
    Supported Control Protocols
    • IP
    • NDI|HX3
    • RS-232
    • RS-485
    • VISCA

    Imaging

    Image Sensor

    • 1/2.8"-Type CMOS
    Sensor Resolution
    • Effective: 2.07 Megapixel
    IR Cut Filter
    • No
    Focus Control
    • Autofocus
    • Manual Focus

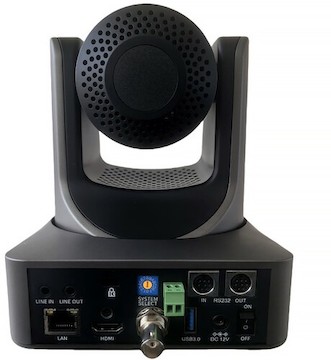

    Interface

    Video I/O

    • 1x HDMI 1.4 Output
    • 1x BNC (3G-SDI) Output
    • 1x RJ45 (NDI) Output
    • 1x USB-A 3.0 / 3.1/3.2 Gen 1 Output
    Audio I/O
    • 1x 1/8" / 3.5 mm TRS Stereo Line Input
    • 1x 1/8" / 3.5 mm TRS Stereo Line Output
    Other I/O
    • 1x D-Sub 8-Pin (RS-232) Control Input
    • 1x D-Sub 8-Pin (RS-232) Control Output
    • 1x Block 2-Pin (RS-485) Control Input/Output
    • 1x USB-A (USB 3.0)
    Built-In Microphone
    • Stereo
    Built-In Speaker
    • No

    Item Type

    Camera

    See All

    Includes

    • Atomos A-Eye HD-20X PTZ
    • 72mm Push-On Cap
    • AC Adapter
    • Atomos IR Remote
    • USB 2.0 Type-A to Type-C Cable 6’
    • Case Insert
    • Case

    Specifications

    Brand

    Atomos

    Camera Mount

    None

    Camera Type

    PTZ

    Compatible Media

    External Storage

    Control

    Pan/Tilt

    • Tilt: 120° (-30 to 90°) at 1.7 to 100°/s
    • Pan: 340° (-170 to 170°) at 1.7 to 69.9°/s
    Tally Light
    • Yes
    Supported Control Protocols
    • IP
    • NDI|HX3
    • RS-232
    • RS-485
    • VISCA

    Imaging

    Image Sensor

    • 1/2.8"-Type CMOS
    Sensor Resolution
    • Effective: 2.07 Megapixel
    IR Cut Filter
    • No
    Focus Control
    • Autofocus
    • Manual Focus

    Interface

    Video I/O

    • 1x HDMI 1.4 Output
    • 1x BNC (3G-SDI) Output
    • 1x RJ45 (NDI) Output
    • 1x USB-A 3.0 / 3.1/3.2 Gen 1 Output
    Audio I/O
    • 1x 1/8" / 3.5 mm TRS Stereo Line Input
    • 1x 1/8" / 3.5 mm TRS Stereo Line Output
    Other I/O
    • 1x D-Sub 8-Pin (RS-232) Control Input
    • 1x D-Sub 8-Pin (RS-232) Control Output
    • 1x Block 2-Pin (RS-485) Control Input/Output
    • 1x USB-A (USB 3.0)
    Built-In Microphone
    • Stereo
    Built-In Speaker
    • No

    Item Type

    Camera

    See All
