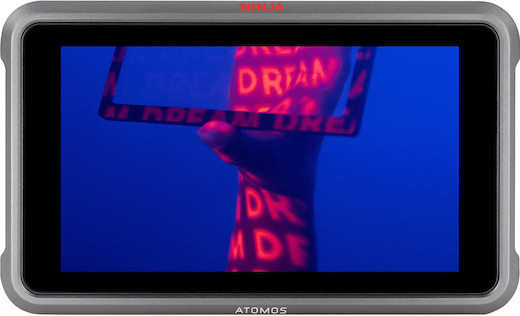

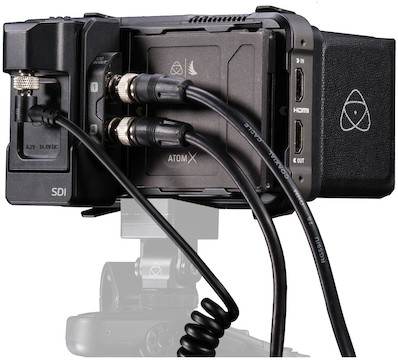

Atomos Ninja V+ 8K HDMI/SDI Monitor/Recorder Pro Kit

$162.00
/
7 Day

Rental

Available Wednesday

Renting this item will adjust your rental dates.

Interested in purchasing?

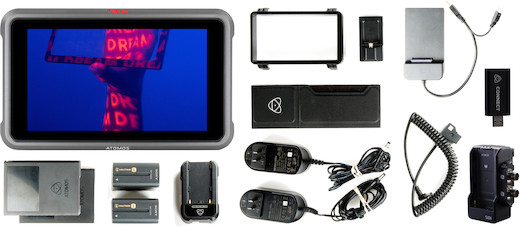

Includes

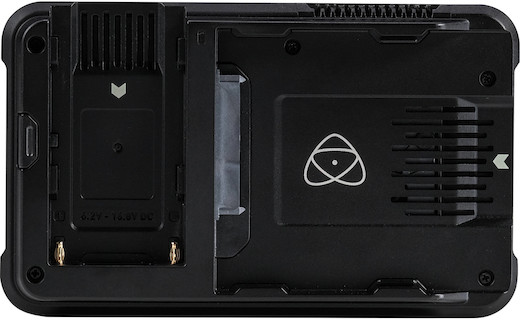

  • Ninja V+ recorder

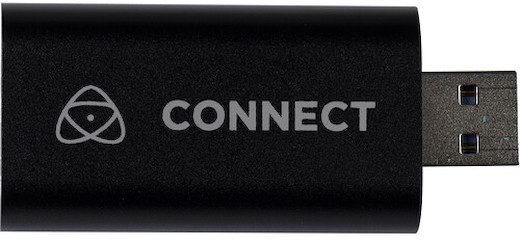

  • Atomos Connect 4K

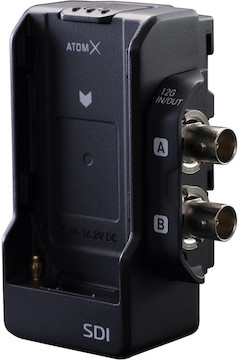

  • SDI module
  • OTG adapter cable

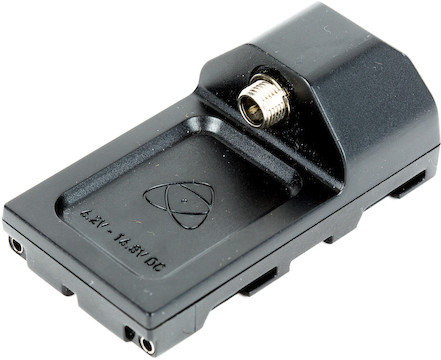

  • Battery eliminator

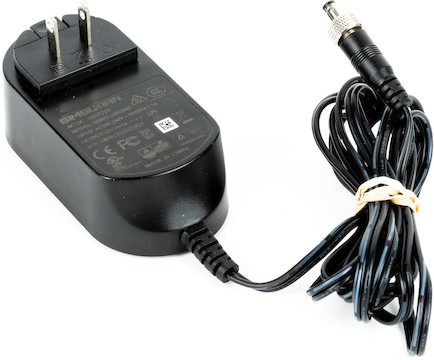

  • Locking AC adapter
  • (2) Hawk-Woods DV-F590 battery
  • Fast charger w/ AC adapter
  • USB 3.1 SSD Dock
  • D-Tap to DC cable

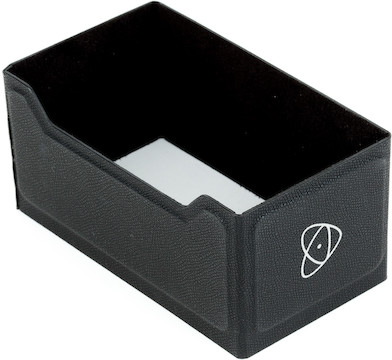

  • Sunhood w/ mounting bracket
  • (2) Master Caddy

Atomos Ninja V+ 8K HDMI/SDI Monitor/Recorder Pro Kit

The Atomos Ninja V+ 8K HDMI/SDI Monitor/Recorder Pro Kit is a compact, 5.2-inch, HDMI & 12G-SDI video recorder capable of capturing 8K RAW and DCI 4K ProRes up to 60 fps. This rental includes batteries & the Atomos Connect. Key features include:

  • 10-bit, 1000 cd/m², 1920 × 1080, touchscreen display

  • 10-bit, 4:2:2 ProRes & DNxHR recording

  • Includes dual Sony-NP-F-type batteries & a charger

  • Records to SSD media

Read More

Q & A

  • Does this rental include mounting hardware?
    • No. Since everyone’s mounting needs differ, we decided to make mounting a la carte. We have a wide variety of support gear to choose from, including monitor arms.

  • Are there any stipulations to RAW 8K/30p or 4K/120p recording?
    • RAW recording is highly dependent on specified cameras, cables, and SSDs. If you have any questions about compatibility between this recorder and a specific camera model, contact us and a tech will be happy to help you determine the best gear for your shoot.

    • For a full list of compatible SDI RAW cameras, look here.

  • Does this rental include batteries and a charger?
  • Does this rental include an SSD?
    • This rental doesn’t include an SSD, but they’re available as separate rental items. You can see some options under Recommended on the left-hand side of this page.

  • Does this rental include HDMI or SDI cables?
    • This rental doesn’t include any HDMI or SDI cables. You can find our cables here. If you’re unsure about which cord is right for your application, please contact us for verification.

  • Specifications

    Brand

    Atomos

    Inputs/Outputs

    Audio Inputs

    • 3.5mm stereo mini-jack
    Audio Input Controls
  • Mic/Line
  • Audio Output
    • 3.5mm stereo mini-jack
    Video Input
    • HDMI Type-A 2.0
    • 12G-SDI (with SDI module)
    Video Out
    • HDMI Type-A 2.0
    • 12G-SDI (with SDI module)
    Additional Inputs/Outputs
    • LANC

    Item Type

    Recorder

    Monitoring

    LCD Panel

    • 5” IPS LCD
    • Resolution: 1920 × 1080
    • Touchscreen
    • PPI: 423
    • Aspect Ratio: 16:9 native
    LUT Support
    • 3D LUT (.cube format)
    Anamorphic De-Squeeze
    • 2x, 1.5x, 1.33x, Panasonic 8:3

    Physical

    Dimensions

    • 5.9 × 3.6 × 1.2″
    Accessory Mounts
    • ¼-20 (center top and bottom)
    Weight
    • 12.7 oz
    Materials
    • Aluminium alloy chassis with ABS polycarbonate back plate

    Power Supply

    AC Adapter

    • Supplied
    Battery
    • Type: Sony L (Hawk-Woods battery supplied)
    • Operating Time: Approximately 1.5 hr
    Additional Battery Compatibility
    • Type: NP-F950

    Recording

    Formats

    • ProRes RAW / RAW HQ / 422HQ / 422 / 422LT, DNxHR HQX, DNxHR HQ / HQX / SQ / LB
    Modes
    • 8K RAW; 30
    • 4K RAW; 120/60/50/30/25/24
    • 4K DCI; 24/25/30/50/60/120p
    • 4K UHD; 24/25/30/50/60p
    • 1080p; 24/25/30/50/60/100/120
    • 1080i; 50/60i, 720p; 50/60p
    Media
    • SSD, Mini-SSD

    Includes

    • Ninja V+ recorder
    • Atomos Connect 4K
    • SDI module
    • OTG adapter cable
    • Battery eliminator
    • Locking AC adapter
    • (2) Hawk-Woods DV-F590 battery
    • Fast charger w/ AC adapter
    • USB 3.1 SSD Dock
    • D-Tap to DC cable
    • Sunhood w/ mounting bracket
    • (2) Master Caddy

    Specifications

    Brand

    Atomos

    Inputs/Outputs

    Audio Inputs

    • 3.5mm stereo mini-jack
    Audio Input Controls
  • Mic/Line
  • Audio Output
    • 3.5mm stereo mini-jack
    Video Input
    • HDMI Type-A 2.0
    • 12G-SDI (with SDI module)
    Video Out
    • HDMI Type-A 2.0
    • 12G-SDI (with SDI module)
    Additional Inputs/Outputs
    • LANC

    Item Type

    Recorder

    Monitoring

    LCD Panel

    • 5” IPS LCD
    • Resolution: 1920 × 1080
    • Touchscreen
    • PPI: 423
    • Aspect Ratio: 16:9 native
    LUT Support
    • 3D LUT (.cube format)
    Anamorphic De-Squeeze
    • 2x, 1.5x, 1.33x, Panasonic 8:3

    Physical

    Dimensions

    • 5.9 × 3.6 × 1.2″
    Accessory Mounts
    • ¼-20 (center top and bottom)
    Weight
    • 12.7 oz
    Materials
    • Aluminium alloy chassis with ABS polycarbonate back plate

    Power Supply

    AC Adapter

    • Supplied
    Battery
    • Type: Sony L (Hawk-Woods battery supplied)
    • Operating Time: Approximately 1.5 hr
    Additional Battery Compatibility
    • Type: NP-F950

    Recording

    Formats

    • ProRes RAW / RAW HQ / 422HQ / 422 / 422LT, DNxHR HQX, DNxHR HQ / HQX / SQ / LB
    Modes
    • 8K RAW; 30
    • 4K RAW; 120/60/50/30/25/24
    • 4K DCI; 24/25/30/50/60/120p
    • 4K UHD; 24/25/30/50/60p
    • 1080p; 24/25/30/50/60/100/120
    • 1080i; 50/60i, 720p; 50/60p
    Media
    • SSD, Mini-SSD
