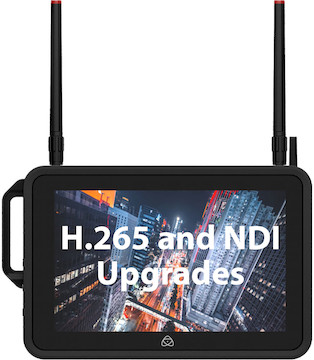

Atomos Shogun CONNECT 7" w/ H.265 and NDI Upgrades

$109.00
/
7 Day

Rental

Available 12/13/23

Renting this item will adjust your rental dates.
Pricing Chart
Shipping Rates

Interested in purchasing?

Includes

  • Shogun CONNECT 7 w/ NDI & H265
  • CamKix Black Case
  • AtomX SSDmini Handle Adapter
  • SSD Master Caddy III
  • RF Antenna for Connect 2.75-inch
  • (2) Wi-Fi Antenna for Connect 4.5-inch
  • AC Adapter

Resources

  • User Guide
  • Manual

    • Atomos Shogun CONNECT 7" w/ H.265 and NDI Upgrades

    The Atomos Shogun Connect 7" w/ H.265 and NDI Upgrades is a lightweight all-purpose monitor that can wirelessly record, monitor, and transmit 4K video, with added H.265 and NDI upgrades. Key features include:

    • A new, brighter HDR screen and range of built-in interfaces

    • 7" 1920 × 1200 Touchscreen Display

    • (2) 12G-SDI, (2) HDMI, (1) USB Type-C

    • H.265 and NDI Upgrades

    Read More

    Q & A

  • Does this come with the NDI HX2 license?

    • This unit comes with NDI|HX2 HD installed, however NDI 4K is not available. If needed, please contact us to have the license upgraded before placing and order.

  • Does this monitor have the ability to replace zero latency transmitters for wireless focus and such?

    • No, the Atomos Shogun CONNECT 7" Cloud-Enabled Monitor/Recorder is not a wireless video transmitter/receiver.

  • Can I use the HDMI and SDI inputs at the same time?

    • No. Only one of the video signals can be used at a time.

    • Specifications

    Brand

    Atomos
    Display

    Panel Type

    • IPS-Type LCD
    Display Size
    • 7.0" / 17.8 cm
    Resolution
    • 1920 × 1200
    Aspect Ratio
    • 16:9
    Touchscreen
    • Yes
    Image Controls
    • Anamorphic De-Squeeze, False Color, Focus Peaking, OSD Flip, RGB Parade, Vectorscope, Waveform, Zebra
    Environmental

    IP Rating

    • None
    Operating Temperature
    • 72°F
    and
    Format Support

    Video Format
    HDMI/SDI (8/10-Bit 4:2:2/4:2:0 YCC)

    • DCI 4K: 60
    • UHD 4K: 60
    • DCI 2K: 60
    • 1080p: 120
    • 1080i: 60/50
    • 720p: 60

    HDMI (12-Bit 4:2:2/4:2:0 YCC)
    • 8K RAW: 30
    • 6K RAW: 60
    • 4K RAW: 120
    • 3.5K RAW: 60

    SDI (12-Bit 4:2:2/4:2:0 YCC)
    • 6K RAW: 30
    • 4K RAW: 120
    • 2K RAW: 240
    Audio Format
    • 24-Bit 48 kHz PCM Audio
    Timecode Support
    • Yes
    General

    Material of Construction

    • Aluminum, Polycarbonate
    Dimensions (L x W x H)
    • 7.8 × 5.2 × 1.6″
    Weight
    • 1.6 lb.
    Inputs/Outputs

    Antenna I/O

    • 2x F-Type
    Video I/O
    • 1x HDMI 2.0a Input
    • 1x BNC (12G-SDI) Input
    • 1x HDMI 2.0a Output
    • 1x BNC (12G-SDI) Loop Output
    • 1x BNC (12G-SDI) Monitor Output
    Embedded Audio
    • HDMI: 8-Channel
    • SDI: 12-Channel
    Audio I/O
    • 1x 1/8" / 3.5mm Headphone Output
    • 1x 1/8" / 3.5mm Input
    • 1x 1/8" / 3.5mm Output
    Power I/O
    • 1x Barrel Input
    Other I/O
    • 1x 2.5mm (LANC) Input
    • 1x USB-C (Serial) Input
    • 1x RJ45 (Gigabit Ethernet) Input
    Media/Memory Card Slot
    • Single Slot: SSDmini/SSD with Master Caddy II/III
    SIM Card Slot
    • None
    File System Support
    • exFAT
    Encryption
    • None
    Item Type

    Monitoring
    Mfr. Model Number

    ATOMSHGC01
