BirdDog 4K HDMI 2.0 NDI Encoder/Decoder

$73.00
/
7 Day

Rental

Interested in purchasing?

Learn More

Includes

  • 4K NDI encoder/decoder
  • AC adapter

Resources

  • User Guide
  • BirdDog 4K HDMI 2.0 NDI Encoder/Decoder

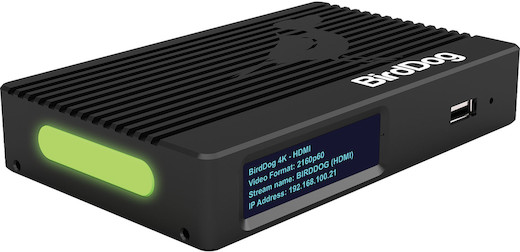

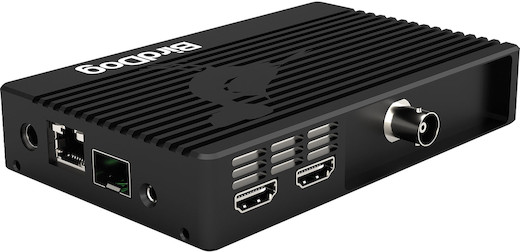

    The BirdDog 4K HDMI 2.0 NDI Encoder/Decoder is a compact, HDMI input, HDMI/SDI output NDI converter. Key features include:

    • Enable NDI for any HDMI video source

    • Supports up to UHD 4K/60p output

    • HDMI and SDI output

    • Full bandwidth i-frame compression

    Read More

    Q & A

  • Does decode mode work with NDI HX cameras?
    • No. Decode mode is only compatible with full NDI cameras. If you have questions about your setup, please contact us.

  • How is this thing powered?
    • This device can be DC powered using the included AC adapter or powered over ethernet by a compatible network switch, like the TP-LINK 8-Port Gigabit Ethernet Poe+ Switch, which is available as a separate rental item.

  • Does this rental include ethernet cables?
    • This rental does not include ethernet cables but they are available here as separate rental items.

  • How do I access the web ui?
    • Changing Flex settings is as easy as connecting it to your local network and pointing your computer’s web browser to: http://birddog-xxxxx.local/ “xxxxx” is the last five characters of the SN printed on the bottom of the device (number and letter characters only, no symbols).

    • Once the dashboard loads, enter “birddog” as the password and you are good to go!

  • Specifications

    Brand

    BirdDog

    Inputs/Outputs

    Video Input

    • HDMI 2.0
    Video Output
    • HDMI 2.0
    • BNC (12G-SDI)
    Audio In
    • 3.5mm TRS (1/8")
    DC In
    • 12 VDC (barrel)
    PoE
    • PoE+ 802.3at
    Network
    • Ethernet RJ45

    Item Type

    Monitoring

    Monitoring Type

    Accessories

    Physical

    Dimensions

    • 5.31 × 3.35 × 0.98″
    Weight
    • 0.57 lb

    Supported Formats

    2160p

    • 23.98/25/29.97/30/50/59.94/60 fp
    1080p
    • 23.98/25/29.97/30/50/59.94/60 fps
    1080i
    • 50/59.94 fps
    720p
    • 50/59.94/60 fps

    Includes

    • 4K NDI encoder/decoder
    • AC adapter

    Specifications

    Brand

    BirdDog

    Inputs/Outputs

    Video Input

    • HDMI 2.0
    Video Output
    • HDMI 2.0
    • BNC (12G-SDI)
    Audio In
    • 3.5mm TRS (1/8")
    DC In
    • 12 VDC (barrel)
    PoE
    • PoE+ 802.3at
    Network
    • Ethernet RJ45

    Item Type

    Monitoring

    Monitoring Type

    Accessories

    Physical

    Dimensions

    • 5.31 × 3.35 × 0.98″
    Weight
    • 0.57 lb

    Supported Formats

    2160p

    • 23.98/25/29.97/30/50/59.94/60 fp
    1080p
    • 23.98/25/29.97/30/50/59.94/60 fps
    1080i
    • 50/59.94 fps
    720p
    • 50/59.94/60 fps
