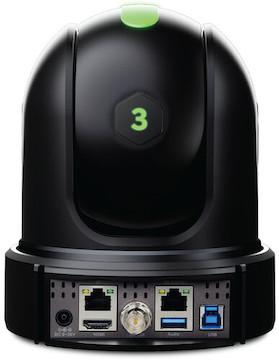

BirdDog P120 NDI PTZ Camera

$130.00
/
7 Day

Rental

Includes

  • BirdDog P120 NDI PTZ Camera
  • Power adapter

Resources

  • Manual
  • BirdDog P120 NDI PTZ Camera

    The BirdDog P120 NDI PTZ Camera is a full NDI 1080p60 PTZ camera that’s designed for capturing fast action. It’s equally great in stadiums, large outdoor spaces, and meeting rooms. Key features include:

    • Designed for use in stadiums and other large spaces

    • Simultaneous live SDI, HDMI, and full NDI outputs

    • Up to 1080p60 video capture; fast 20x optical zoom

    • Built-in Full NDI and NDI | HX support; PoE+

    Read More

    Q & A

  • Does this rental include a USB audio adapter?
    • This rental doesn’t include the BirdDog USB audio adapter by default.

    • If you need a USB audio adapter with your rental, please request it in the Special Instructions box during checkout and we’ll add one to your order at no additional cost.

  • How can I change the resolution and frame rate?
    • You can adjust the resolution and frame rate through the WebUI and the IR remote. The dial has been phased out in recent firmware updates and can no longer be used to make adjustments.

  • How can I control the camera's movement?
  • Specifications

    Brand

    BirdDog

    Camcorder Type

    PTZ

    Camera

    Shutter Speed

    • 1/1 to 1/10,000 sec
    Max Digital Zoom
    • 16x
    Built-In ND Filter
    • None
    Flip / Mirror Support
    • Image Flip, Mirror (Vertical)

    Camera Type

    Camcorder

    Control

    Presets

    • 128
    Move Speed
    • Pan: 0.5 to 100°/sec
    • Tilt: 0.5 to 72°/sec
    Movement Range
    • Pan: 350° (-175 to 175°)
    • Tilt: 120° (-30 to 90°)
    Tally Light
    • Yes
    Supported Control Protocols
    • IP
    • NDI
    • Pelco-D
    • RS-232
    • RS-422
    • VISCA

    Environmental

    Operating Temperature

    • 14 to 122°F
    Operating Humidity
    • 80%

    Image Sensor

    Sensor Type

    • 1-Chip 1/2.86” CMOS Sensor
    Sensor Resolution
    • Effective: 2.2 Megapixel
    Minimum Illumination
    • 0.5 Lux

    Interfaces

    Video Output Connectors

    • 1x RJ45 (NDI) Female 1x BNC (3G-SDI) Female
    • 1x HDMI Type A (HDMI 1.4) Female
    • 1x USB 2.0 Type-B (USB Video) Female
    Audio I/O
    • 1x 1/8" / 3.5mm Stereo Input
    • 1x 1/8" / 3.5mm Stereo Output
    Control Interface
    • 1x RJ45 (IP Control)
    Other I/O
    • 1x USB (Unspecified Type)

    See All

    Includes

    • BirdDog P120 NDI PTZ Camera
    • Power adapter

    Specifications

    Brand

    BirdDog

    Camcorder Type

    PTZ

    Camera

    Shutter Speed

    • 1/1 to 1/10,000 sec
    Max Digital Zoom
    • 16x
    Built-In ND Filter
    • None
    Flip / Mirror Support
    • Image Flip, Mirror (Vertical)

    Camera Type

    Camcorder

    Control

    Presets

    • 128
    Move Speed
    • Pan: 0.5 to 100°/sec
    • Tilt: 0.5 to 72°/sec
    Movement Range
    • Pan: 350° (-175 to 175°)
    • Tilt: 120° (-30 to 90°)
    Tally Light
    • Yes
    Supported Control Protocols
    • IP
    • NDI
    • Pelco-D
    • RS-232
    • RS-422
    • VISCA

    Environmental

    Operating Temperature

    • 14 to 122°F
    Operating Humidity
    • 80%

    Image Sensor

    Sensor Type

    • 1-Chip 1/2.86” CMOS Sensor
    Sensor Resolution
    • Effective: 2.2 Megapixel
    Minimum Illumination
    • 0.5 Lux

    Interfaces

    Video Output Connectors

    • 1x RJ45 (NDI) Female 1x BNC (3G-SDI) Female
    • 1x HDMI Type A (HDMI 1.4) Female
    • 1x USB 2.0 Type-B (USB Video) Female
    Audio I/O
    • 1x 1/8" / 3.5mm Stereo Input
    • 1x 1/8" / 3.5mm Stereo Output
    Control Interface
    • 1x RJ45 (IP Control)
    Other I/O
    • 1x USB (Unspecified Type)
