Blackmagic ATEM Production Studio 4K Switcher

$143.00
/
7 Day

Rental

Interested in purchasing?

Learn More

Includes

  • Blackmagic Design ATEM Production Studio 4K
  • Power cable
  • Ethernet Cable (for configuring the switcher prior to use)

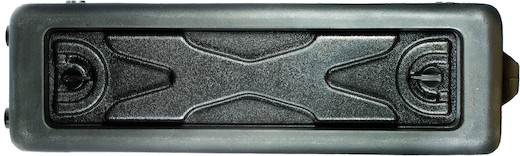

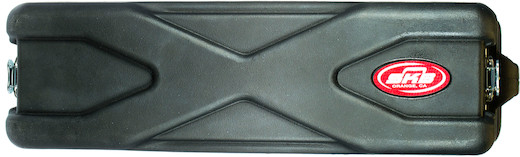

  • SKB 2U Roto Shallow Rack case
115302952002
579183312095981572497404882046906969

Blackmagic ATEM Production Studio 4K Switcher

The Blackmagic ATEM Production Studio 4K Live Switcher is a live-event multi-camera production switcher with NTSC/PAL/HD/UHD support. Key features include:

  • NTSC, PAL, HD, and 4K UHD support

  • Four SDI inputs, four HDMI inputs, and up to six outputs

  • Built-in effects, such as keying, transitions, and overlays

  • 4K downconversion

Read More

Q & A

  • Does this rental include video cables?
    • This rental doesn’t include video cables. You must rent them separately.

  • Does this rental include a control surface?
    • This rental doesn’t include a control surface. You must control this switcher with a computer (not included) running the Blackmagic ATEM Switcher application, which you can download from their website.

  • Specifications

    Accessory Type

    Production Tool

    Brand

    Blackmagic

    Inputs/Outputs

    Audio Inputs

    • 2x XLR
    Audio Outputs
    • 2x XLR Program
    HDMI Inputs
    • 4x HDMI type A
    • 10-bit SD/HD/UHD 4K
    SDI Inputs
    • 4x SDI
    • 10-bit SD/HD/UHD 4K
    • 270Mb
    • 1.5G, 3G, 6G
    Outputs
    • HDMI: 1x Program, 1x Multi-View
    • SDI: 1x Program, 1x Multi-View
    Additional Inputs/Outputs
    • Ethernet (10/100/1000 BaseT)

    Item Type

    Monitoring, Recorder, and Accessory

    Monitoring Type

    Accessories

    Recommended For

    Pro Video

    Video Effects

    Keying

    • 1x Upstream Keyer (with Chroma/Luma Key)
    • 2x Downstream Keyers
    • 1x Chroma Keyer
    • 3x Linear/Luma Keyers
    Media Pool
    • 2x media-players
    • Still Image Capacity: 20 with fill and key
    • Still Image Formats: PNG, TGA, BMP, GIF, JPEG, and TIFF

    Video Processing

    Sampling/Precision

    • 4:2:2
    • 10-bit
    Color Space
    • REC 601
    • REC 709
    Formats
    • 2160p: 23.98/24/25/29.97
    • 1080p: 23.98/24/25/29.97/50/59.94
    • 1080i: 50/59.94
    • 720: 50/59.94
    • SD: 50/59.94
    Processing Delay
    • 1 Line
    Down Conversion
    • UHD 4K to HD
    • Program x 1 (HDMI and SDI)
    Computer Input Support
    • HDMI input only
    • 1280 × 720/1920 × 1080: 59.97Hz/50Hz
    • 3840 × 2160: 23.98Hz/24Hz/25Hz/29.97Hz

    Includes

    • Blackmagic Design ATEM Production Studio 4K
    • Power cable
    • Ethernet Cable (for configuring the switcher prior to use)
    • SKB 2U Roto Shallow Rack case

    Specifications

    Accessory Type

    Production Tool

    Brand

    Blackmagic

    Inputs/Outputs

    Audio Inputs

    • 2x XLR
    Audio Outputs
    • 2x XLR Program
    HDMI Inputs
    • 4x HDMI type A
    • 10-bit SD/HD/UHD 4K
    SDI Inputs
    • 4x SDI
    • 10-bit SD/HD/UHD 4K
    • 270Mb
    • 1.5G, 3G, 6G
    Outputs
    • HDMI: 1x Program, 1x Multi-View
    • SDI: 1x Program, 1x Multi-View
    Additional Inputs/Outputs
    • Ethernet (10/100/1000 BaseT)

    Item Type

    Monitoring, Recorder, and Accessory

    Monitoring Type

    Accessories

    Recommended For

    Pro Video

    Video Effects

    Keying

    • 1x Upstream Keyer (with Chroma/Luma Key)
    • 2x Downstream Keyers
    • 1x Chroma Keyer
    • 3x Linear/Luma Keyers
    Media Pool
    • 2x media-players
    • Still Image Capacity: 20 with fill and key
    • Still Image Formats: PNG, TGA, BMP, GIF, JPEG, and TIFF

    Video Processing

    Sampling/Precision

    • 4:2:2
    • 10-bit
    Color Space
    • REC 601
    • REC 709
    Formats
    • 2160p: 23.98/24/25/29.97
    • 1080p: 23.98/24/25/29.97/50/59.94
    • 1080i: 50/59.94
    • 720: 50/59.94
    • SD: 50/59.94
    Processing Delay
    • 1 Line
    Down Conversion
    • UHD 4K to HD
    • Program x 1 (HDMI and SDI)
    Computer Input Support
    • HDMI input only
    • 1280 × 720/1920 × 1080: 59.97Hz/50Hz
    • 3840 × 2160: 23.98Hz/24Hz/25Hz/29.97Hz
