The HyperDeck Shuttle 4K Pro (2TB) is a tabletop recorder and clip player that runs multiple connections for pairing with a computer or switcher. It is an upgraded version of the HyperDeck Shuttle HD. Key fea
Broadcast deck controls with search dial
7-inch touchscreen; 2TB internal storage
Built-in teleprompter
Records up to DCI 4K30p and UHD 4K60p

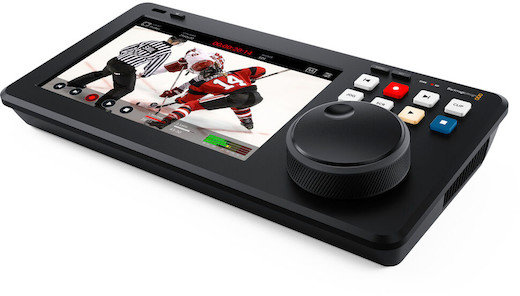

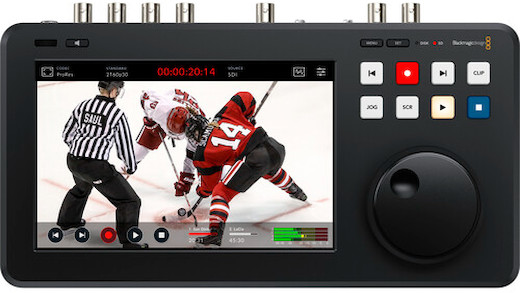

Professional and Portable. Offering a control panel that is similar to a traditional broadcast deck, while still portable enough to carry in a laptop bag, the HyperDeck Shuttle 4K Pro is a great tool for live productions no matter where they are. It takes up about as much tabletop space as a common keyboard and can easily be used one-handed thanks to the 7" touchscreen and large control dial. The gentle angle and ergonomic button positions allow for comfortable use over long hours. Live monitoring on the LCD includes a heads-up display overlay with important information such as timecode, media status, and audio meters.
Multiple Recording Options. Edit while recording when sending footage directly to network storage. M.2 PCIe flash storage gives multiple users access to recordings over a local network. This particular HyperDeck includes a 2TB M.2 card for cache recording up to 16 Gbps. For a version that is the deck only without the extra storage, see the HyperDeck Shuttle 4K Pro. You also have the option of recording directly to an SD card. Alternatively, there is USB-C for connecting external drives. The HyperDeck Shuttle Pro supports recording on multiple disks. Pair this with the Blackmagic Design MultiDock 10G for a reliable and efficient workflow.

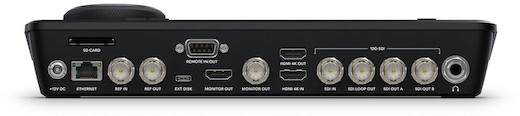

Powerful Connections. The HyperDeck Shuttle 4K Pro may be small but it is mighty with a wealth of ports. Connect to cameras, switchers, monitors, and more. This deck includes the latest 12G-SDI video connections and fast 10G Ethernet. Webcam support over USB ensures compatibility with streaming software at 1080p. The HyperDeck’s RS-422 protocol support allows for direct connection to broadcast systems over a traditional DB-9 port. For more info on RS-422 remote control and supported commands, check out this resource page from Blackmagic. For more info on Ethernet remote control and supported commands, see this guide.
Other Notable Features. Convert the HyperDeck into a teleprompter! It will read standard RTF text file scripts without custom software. Move between scripts just like you would video clips. Pressing both the jog and scroll buttons will trigger live scrolling of your scripts. Built-in waveform monitoring ensures compliance with broadcast standards and scopes can be overlayed on live video or displayed as picture-in-picture. Advanced digital slate and metadata features make it easy and quick to add custom metadata to any shot. This comprehensive interface makes the HyperDeck Shuttle 4K Pro perfect for just about any live production environment.
