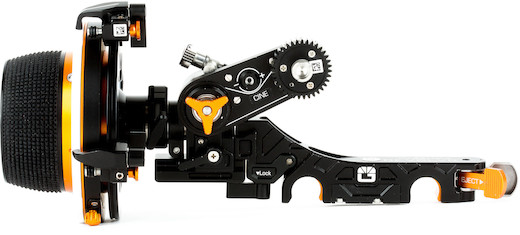

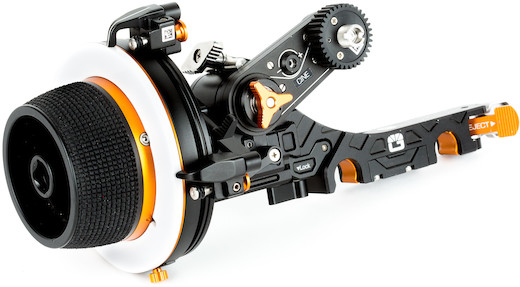

The Bright Tangerine Revolvr Atom Cine Kit is a compact follow-focus unit for mounting on 15mm LWS support rods. Key features include:
15mm LWS rod-mounted follow focus
Great for hand-held and close-quarters work

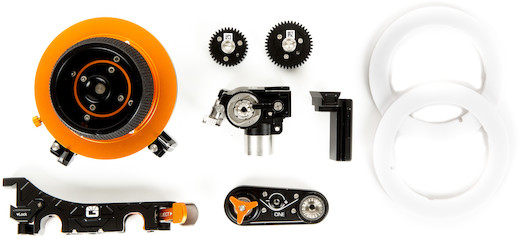

Includes a swing arm, two drive gears, and two marking discs
Mini ergonomic conical hand wheel

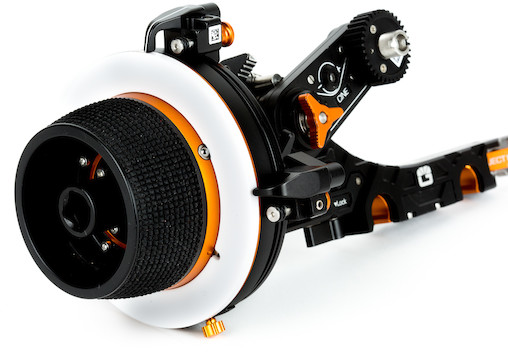

Compact Follow-Focus Unit. The Bright Tangerine Revolvr Atom Cine Kit’s compact build and single-sided design make it ideal for hand-held and close-quarters work. Its single-sided focus bridge is designed to be mounted on 15mm LWS spaced rods. Its hand wheel and bridge both accept standard accessories, and this kit includes a swing arm, two mod wheels, and two removable marking discs.

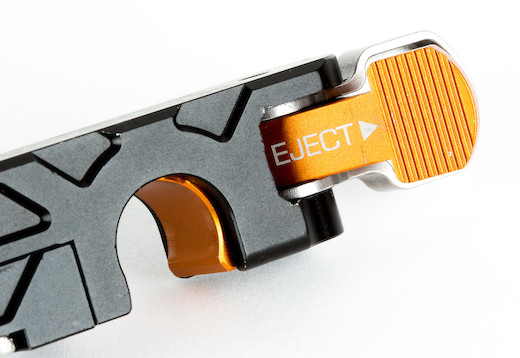

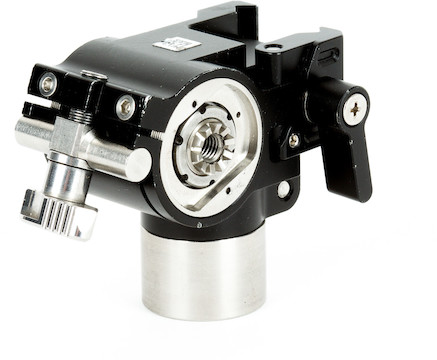

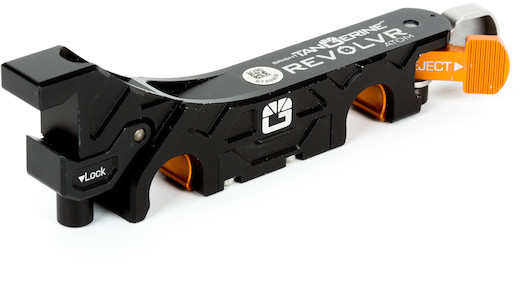

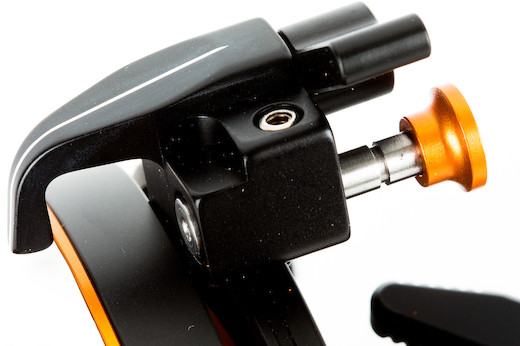

Revolvr Atom 15mm Lightweight Core Bridge. The core features an integrated, high-quality gearbox that prevents any perceivable backlash. Its snap-on clamps mount it onto lightweight 15mm support rods. It’s compatible with industry standard focus accessories such as the Revolvr and Revolvr Atom Handwheels, Revolvr 3.0-inch Handwheel Extension, 4D Speed Crank, and Bright Tangerine 270° Focus Whip.

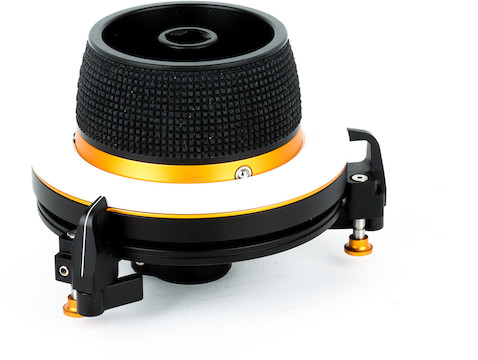

Revolvr Atom Focus Handwheel. This handwheel is a mini version of Bright Tangerine’s standard handwheel, but continues the ergonomic, conical design. Its raised, ribbed surface gives you a secure grip, while the removable marking discs include detents that prevent them from rotating on the handwheel.

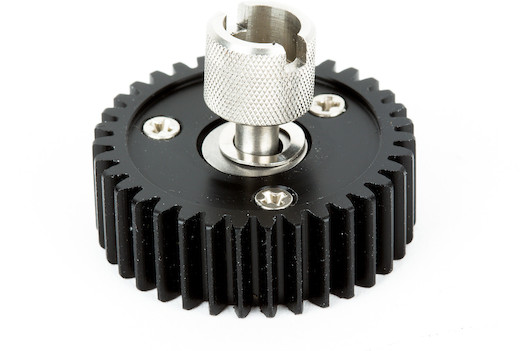

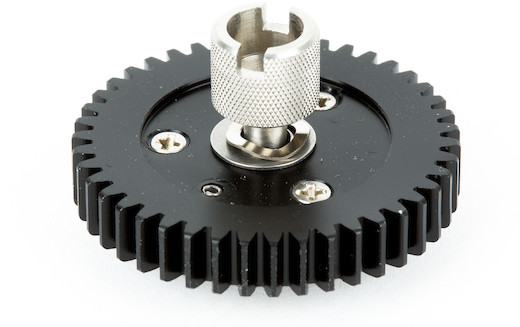

Revolvr Gears. The Atom Cine Kit includes a 0.8-pitch, 35-tooth,10mm face gear and a 0.8-pitch, 43-tooth, 6mm face gear, both of which interface with lenses that have cine-style geared focus, zoom, or iris rings. Their width gives you flexibility in follow-focus placement.

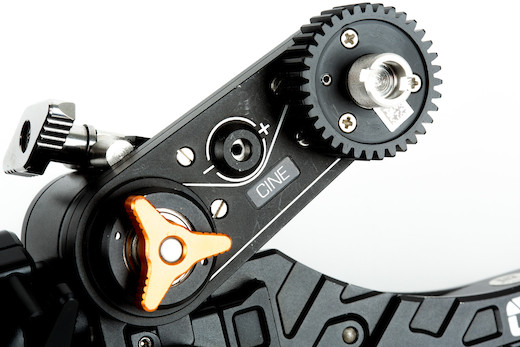

Revolvr Cine Swing Arm. You can mount the Revolvr Swing Arm Cine on either side of the Core Bridge’s drive transmission to match the focus gear’s position. Its custom drive belt and built-in tension adjustment roller helps prevent backlash, and it features a 1:1.842 gear ratio.
