Canon CR-N700 4K PTZ Camera w/ Auto-Tracking App Upgrade

$696.00
/
8 Day

Rental

Interested in purchasing?

Includes

  • Canon CR-N700 4K PTZ Camera w/ Auto-Tracking App Upgrade
  • Canon WL-N01 PTZ Remote Control
  • Canon CR-N Series lens cap
  • AC adapter
  • Non-polarized cable
  • Case

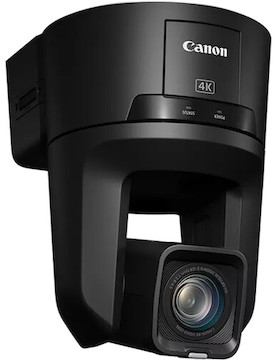

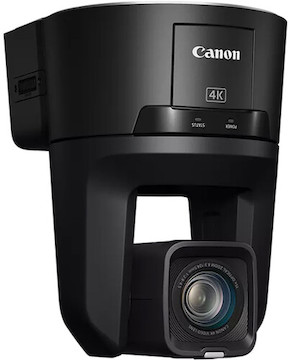

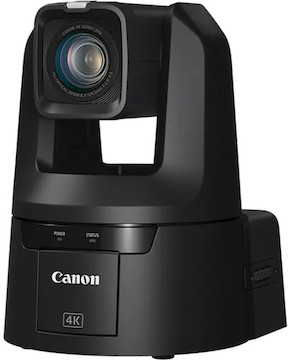

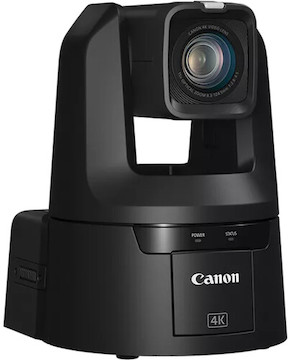

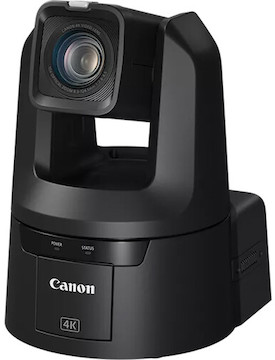

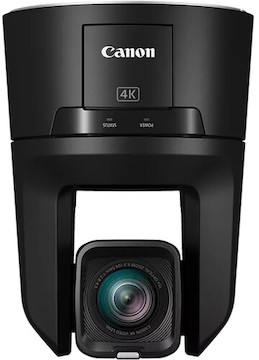

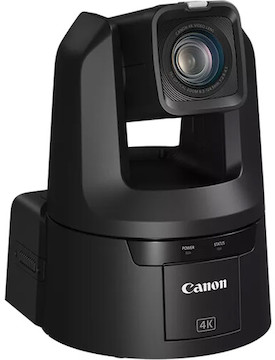

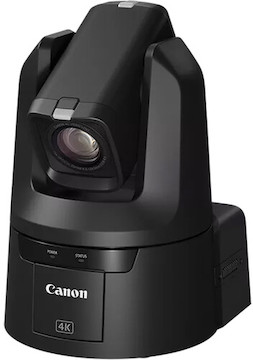

Canon CR-N700 4K PTZ Camera w/ Auto-Tracking App Upgrade

The Canon CR-N700 4K PTZ Camera w/ Auto-Tracking App Upgrade is a pro-grade PTZ camera made for high-end broadcast, television-studio, and live-event applications. This version comes with Canon’s Auto-Tracking software pre-installed. Key features include:

  • Includes Canon’s RA-AT001 Auto-Tracking App

  • 1" CMOS sensor with Dual-Pixel CMOS AF

  • HDMI, 3G-SDI, & IP video output; up to UHD 4K60p video

  • Built-in NDI | HX support, 15x/20x/30x zoom, PoE++

Read More

Q & A

  • How do I access the camera upon initial startup?
    • Upon initial startup, you must follow these steps:

    • 1. Access the camera via the webUI. The IP address is 192.168.100.1 and the Subnet is 255.255.255.0

    • 2. Assign an account name and password.

    • 3. Reboot the camera to log back in. You’ll be prompted to enter the initial network settings.

      You can avoid advanced configuration by saving the prompted network page and using the Canon Camera Search Tool for macOS / Windows.

  • How do I monitor camera view?
    • You can monitor camera view via webUI, SDI / HDMI, and compatible third-party software.

    • This camera uses NDI HX2 protocol, so we recommend making sure all third-party software is up to date.

  • I lost the IP address or login information. What can I do?
    • If you lost the IP address or login information, follow these steps:

    • 1. Press and hold the Reset button on the back of the camera.

    • 2. Power on the camera.

    • 3. Wait for the front LED to blink.

    • 4. Release the Reset button.

    • 5. Wait ~4 minutes for the camera to complete its boot-up sequence.

  • Specifications

    Brand

    Canon

    Camcorder Type

    PTZ

    Camera

    Sensor Resolution

    • Actual: 13.4 Megapixel
    • Effective: 8.29 Megapixel
    Shutter Speed
    • 1/3 to 1/2000 Second
    Max Digital Zoom
    • 30x (in 1080p)
    Built-In ND Filter
    • Mechanical Filter Wheel with 2 Stop (1/4), 4 Stop (1/16), 6 Stop (1/64) ND Filters

    Camera Type

    Camcorder

    Control

    Presets

    • 100 (including Home position)
    Movement Speed
    • Pan: 0.1 to 100°/sec
    • Tilt: 0.1 to 100°/sec
    Movement Range
    • Pan: 34° (-170 to 170°)
    • Tilt: 120° (-30 to 90°)
    Supported Control Protocols
    • IP
    • NDI
    • VISCA

    Environmental

    Operating Temperature

    • 32 to 104°F
    Storage Temperature
    • 32 to 104°F
    Operating Humidity
    • 10 to 90% (Non-Condensing)
    Storage Humidity
    • 10 to 90% (Non-Condensing)

    Interface

    Communication Control

    • LAN, Wi-Fi, Serial, IR
    Network Terminal
    • LAN x1, RJ45, 1000Base-T
    12G/3G-SDI OUT Terminal
    • BNC jack x1 12GSDI & x1 3G-SDI, 0.8 Vp-p/75 Ohm
    • SMPTE ST 259, SMPTE ST 292, SMPTE ST 424/425, SMPTE ST2081, SMPTE ST 2082, SMPTE ST 272, SMPTE ST 299 compliant
    • Embedded audio, Timecode (VITC/LTC)
    Gen-Lock Terminal
    • BNC jack x1, 1.0 Vp-p/75 Ohm
    Timecode Terminal
    • BNC jack x1, 1.3 Vp-p/50 Ohm or less
    RS-422 Terminal
    • RJ45 connector x1
    Audio Input 1 / Input 2 Terminals
    • INPUT (3-pin jack) (pin1: shield, pin2: hot, pin3: cold), 2 sets, balanced
    • Sensitivity (MIC): -60 dBu (Manual volume center, full scale -18 dB)/600 Ohm/Att.: 20 dB
    • Sensitivity (LINE): +4 dBu (Manual volume center, full scale -18 dB)/1 k Ohm or more
    • Supply Voltage: 48 V DC (Bias resistance: 6.8 k Ohm)
    Mic Terminal
    • 3.5mm stereo mini-jack (unbalanced, plug-in power supported)
    • Sensitivity (MIC): -72 dBV (Manual volume center, full scale -18 dB)/1 k Ohm or more/Att.: 20 dB
    • Sensitivity (LINE): -10 dBV (Manual volume center, full scale -18 dB)/1 k Ohm or more
    • Supply Voltage: 2.4 V DC (Bias resistance: 2.2 k Ohm)
    Media Slot
    • SD Card x1, microSD card slot x1 – future expansion, recording currently unavailable (February 2023)

    Item Type

    Camera and PTZ Cameras

    See All

    Includes

    • Canon CR-N700 4K PTZ Camera w/ Auto-Tracking App Upgrade
    • Canon WL-N01 PTZ Remote Control
    • Canon CR-N Series lens cap
    • AC adapter
    • Non-polarized cable
    • Case

    Specifications

    Brand

    Canon

    Camcorder Type

    PTZ

    Camera

    Sensor Resolution

    • Actual: 13.4 Megapixel
    • Effective: 8.29 Megapixel
    Shutter Speed
    • 1/3 to 1/2000 Second
    Max Digital Zoom
    • 30x (in 1080p)
    Built-In ND Filter
    • Mechanical Filter Wheel with 2 Stop (1/4), 4 Stop (1/16), 6 Stop (1/64) ND Filters

    Camera Type

    Camcorder

    Control

    Presets

    • 100 (including Home position)
    Movement Speed
    • Pan: 0.1 to 100°/sec
    • Tilt: 0.1 to 100°/sec
    Movement Range
    • Pan: 34° (-170 to 170°)
    • Tilt: 120° (-30 to 90°)
    Supported Control Protocols
    • IP
    • NDI
    • VISCA

    Environmental

    Operating Temperature

    • 32 to 104°F
    Storage Temperature
    • 32 to 104°F
    Operating Humidity
    • 10 to 90% (Non-Condensing)
    Storage Humidity
    • 10 to 90% (Non-Condensing)

    Interface

    Communication Control

    • LAN, Wi-Fi, Serial, IR
    Network Terminal
    • LAN x1, RJ45, 1000Base-T
    12G/3G-SDI OUT Terminal
    • BNC jack x1 12GSDI & x1 3G-SDI, 0.8 Vp-p/75 Ohm
    • SMPTE ST 259, SMPTE ST 292, SMPTE ST 424/425, SMPTE ST2081, SMPTE ST 2082, SMPTE ST 272, SMPTE ST 299 compliant
    • Embedded audio, Timecode (VITC/LTC)
    Gen-Lock Terminal
    • BNC jack x1, 1.0 Vp-p/75 Ohm
    Timecode Terminal
    • BNC jack x1, 1.3 Vp-p/50 Ohm or less
    RS-422 Terminal
    • RJ45 connector x1
    Audio Input 1 / Input 2 Terminals
    • INPUT (3-pin jack) (pin1: shield, pin2: hot, pin3: cold), 2 sets, balanced
    • Sensitivity (MIC): -60 dBu (Manual volume center, full scale -18 dB)/600 Ohm/Att.: 20 dB
    • Sensitivity (LINE): +4 dBu (Manual volume center, full scale -18 dB)/1 k Ohm or more
    • Supply Voltage: 48 V DC (Bias resistance: 6.8 k Ohm)
    Mic Terminal
    • 3.5mm stereo mini-jack (unbalanced, plug-in power supported)
    • Sensitivity (MIC): -72 dBV (Manual volume center, full scale -18 dB)/1 k Ohm or more/Att.: 20 dB
    • Sensitivity (LINE): -10 dBV (Manual volume center, full scale -18 dB)/1 k Ohm or more
    • Supply Voltage: 2.4 V DC (Bias resistance: 2.2 k Ohm)
    Media Slot
    • SD Card x1, microSD card slot x1 – future expansion, recording currently unavailable (February 2023)

    Item Type

    Camera and PTZ Cameras

    See All
