Cartoni Lifto 25 Motorized Elevation Column

$272.00
/
7 Day

Rental

Interested in purchasing?

Includes

  • Cartoni Lifto 25 Motorized Elevation Column

Resources

  • Manual
  • Cartoni Lifto 25 Motorized Elevation Column

    New Product – Coming Soon.

    Place your reservation now! We fill orders on a first-come, first-served basis. Please note that included items and rental cost could change as we finalize this listing.

    If the listed rental price increases between your preorder and ship dates, don’t worry—you’ll be locked in at your original pre-order price. And if the price decreases, you’ll still pay the lower price. We’ll always contact you to confirm pricing before we ship your order.

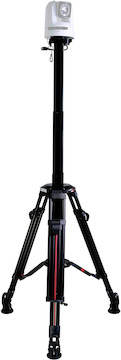

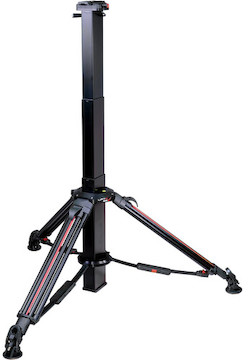

    The Cartoni Lifto 25 is a motorized tripod-style lift system for PTZ cameras. Key features include:

    • Smooth vertical movement at 38mm-per-second speed
    • 55-pound payload, quick-release plate
    • Nearly 8’ max height
    • Controllable by wire remote

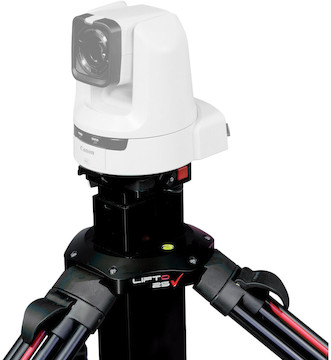

    Add on-air-quality vertical movement to your pan, tilt, and zoom movements with this elevating tripod designed specifically for PTZ cameras. Connect your camera via either 1/4"-20 or 3/8"-16 screws on a standard quick-release plate and, optionally, secure it with the safety leash ring. This system is powered either with AC wall power (cable included) or with up to two broadcast batteries using D-tap-to-2-pin-molex cables (not included). Please note that wall power and battery power cannot be used at the same time.

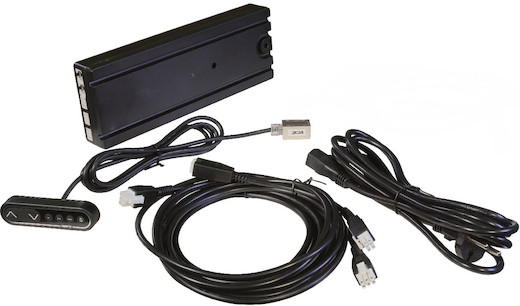

    The included wired control unit allows you to raise your camera up and down with smooth movements that have soft stops and starts. When factoring in the height of the tripod as a whole, you can get your PTZ camera up to nearly 8’ in the air! It is also incredibly quiet. The Cartoni Lifto 25 is ideal for capturing unique scenes when broadcasting/streaming.

    Q & A

  • My PTZ camera doesn't have mount ports. How do I get it on this lift?
    • If you cannot connect your camera directly to the quick-release plate of the Lifto 25 then you will need to attach an adapter plate with tapped 1/4"-20 or 3/8"-16 holes. This is not included.

  • Does this do anything other than go up and down?
    • Nope! This is a camera elevator that can only make up or down movements via remote. You can save up to 3 favorite positions using the included control device unit/wired remote.

  • Specifications

    Brand

    Cartoni

    General

    Mounting

    • 1/4"-20, 3/8"-16 screws on quick release plate
    Payload
    • 55.1 lb.
    Range
    • Max Height: 7.8’
    • Min Height: 22.5"
    • Motorized Center Column: 26"
    • Footprint: 4.28’
    Mfr. Model Number
    • KPTZ0201
    Dimensions (H x D)
    • 2.7′ × 9.8″ (folded)
    Weight
    • 26 lb.

    Inputs/Outputs

    Other I/O

    • 4x motorized elevation unit outputs
    • 2x RJ45/control device inputs
    Power I/O
    • 100-240V AC
    • 14V DC via 2x 2-pin Molex inputs

    Item Type

    Tripod Kits

    Includes

    • Cartoni Lifto 25 Motorized Elevation Column

    Specifications

    Brand

    Cartoni

    General

    Mounting

    • 1/4"-20, 3/8"-16 screws on quick release plate
    Payload
    • 55.1 lb.
    Range
    • Max Height: 7.8’
    • Min Height: 22.5"
    • Motorized Center Column: 26"
    • Footprint: 4.28’
    Mfr. Model Number
    • KPTZ0201
    Dimensions (H x D)
    • 2.7′ × 9.8″ (folded)
    Weight
    • 26 lb.

    Inputs/Outputs

    Other I/O

    • 4x motorized elevation unit outputs
    • 2x RJ45/control device inputs
    Power I/O
    • 100-240V AC
    • 14V DC via 2x 2-pin Molex inputs

    Item Type

    Tripod Kits
