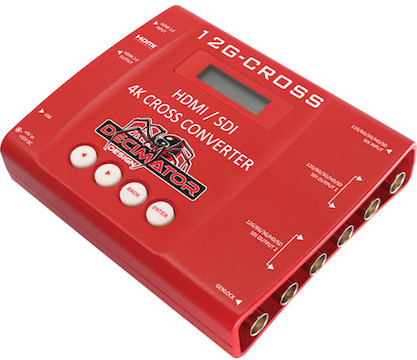

DECIMATOR 12G-CROSS 4K HDMI/SDI Cross Converter

$73.00
/
7 Day

Rental

Interested in purchasing?

Includes

  • DECIMATOR 12G-Cross HDMI/SDI 4K Cross Converter
  • DECIMATOR GPE018W-120125-Z AC Adapter
  • Tetrafab Accessory EVA Medium Case (Black)
  • USB Cable

Resources

  • Manual
  • Full Specs
  • DECIMATOR 12G-CROSS 4K HDMI/SDI Cross Converter

    The DECIMATOR 12G-CROSS 4K HDMI/SDI Cross Converter is a compact SDI-HDMI cross-converter with resolution scaling and frame rate conversion. Key features include:

    • Converts SDI to HDMI and vice versa

    • Supports 12G-SDI and HDMI video signals up to DCI 4K/60

    • 12G-SDI distribution amplifier with 4 outputs

    • Less than one frame of latency

    Read More

    Q & A

  • What cables should I expect with my rental?
    • Due to a connector update, DECIMATOR created both USB-Mini and USB-C versions of this converter. You will receive the correct cable with the converter you end up with!

    • As always, you can contact us with any questions or concerns.

  • Do any cameras have trouble connecting to the DECIMATOR 12G?
    • We’ve discovered that the DECIMATOR 12G can’t detect a signal from the Canon EOS C70 Cinema Camera.

  • Does the DECIMATOR 12G feature any mounting points?
    • No. This device does not include a way to mount it to your rig.

  • Specifications

    Brand

    DECIMATOR Design

    Inputs/Outputs

    Inputs

    • Genlock (BNC)
    • (1) 12G-SDI (BNC)
    • (1) HDMI (2.0, Type-A)
    Input Formats
    • DCI/UHD 4K: 23.98/24/25/29.97/30/50/59.94/60 fps
    • 1080p/2K: 23.98/24/25/29.97/30/50/59.94/60 fps
    • 1080i: 50/59.94/60 fps
    • 720p: 25/29.97/30/50/59.94/60 fps
    • 576p: 50 fps
    • 480p: 59.94 fps
    • PAL: 50 fps
    • NTSC: 59.94 fps
    Outputs
    • (2) 12G-SDI (BNC)
    • (2) 12G-SDI Loop Out (BNC)
    • (1) HDMI (2.0, Type-A)
    Output Formats
    • DCI/UHD 4K: 23.98/24/25/29.97/30/50/59.94/60 fps
    • 1080p/2K: 23.98/24/25/29.97/30/50/59.94/60 fps
    • 1080i: 50/59.94/60 fps
    • 720p: 25/29.97/30/50/59.94/60 fps
    • 576p: 50 fps
    • 480p: 59.94 fps
    • PAL: 50 fps
    • NTSC: 59.94 fps

    Item Type

    Monitoring & Recording

    Mfr. Model Number

    DD-12G-CROSS

    Monitoring & Recording Type

    Signal Converter

    Physical

    Dimensions

    • 5.12 × 4.17 × 1.22″
    Mounting
    • None

    Includes

    • DECIMATOR 12G-Cross HDMI/SDI 4K Cross Converter
    • DECIMATOR GPE018W-120125-Z AC Adapter
    • Tetrafab Accessory EVA Medium Case (Black)
    • USB Cable

    Specifications

    Brand

    DECIMATOR Design

    Inputs/Outputs

    Inputs

    • Genlock (BNC)
    • (1) 12G-SDI (BNC)
    • (1) HDMI (2.0, Type-A)
    Input Formats
    • DCI/UHD 4K: 23.98/24/25/29.97/30/50/59.94/60 fps
    • 1080p/2K: 23.98/24/25/29.97/30/50/59.94/60 fps
    • 1080i: 50/59.94/60 fps
    • 720p: 25/29.97/30/50/59.94/60 fps
    • 576p: 50 fps
    • 480p: 59.94 fps
    • PAL: 50 fps
    • NTSC: 59.94 fps
    Outputs
    • (2) 12G-SDI (BNC)
    • (2) 12G-SDI Loop Out (BNC)
    • (1) HDMI (2.0, Type-A)
    Output Formats
    • DCI/UHD 4K: 23.98/24/25/29.97/30/50/59.94/60 fps
    • 1080p/2K: 23.98/24/25/29.97/30/50/59.94/60 fps
    • 1080i: 50/59.94/60 fps
    • 720p: 25/29.97/30/50/59.94/60 fps
    • 576p: 50 fps
    • 480p: 59.94 fps
    • PAL: 50 fps
    • NTSC: 59.94 fps

    Item Type

    Monitoring & Recording

    Mfr. Model Number

    DD-12G-CROSS

    Monitoring & Recording Type

    Signal Converter

    Physical

    Dimensions

    • 5.12 × 4.17 × 1.22″
    Mounting
    • None

    Resources

  • Manual
  • Full Specs
