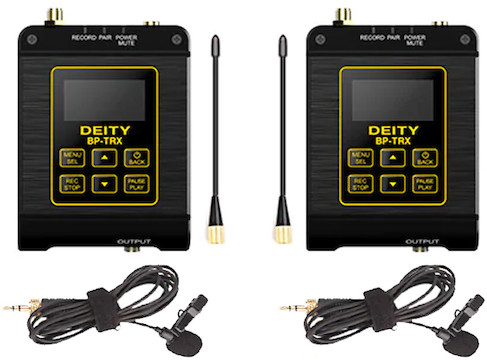

Deity Connect BP-TRX Timecode / Wireless Lav Mic Kit

$41.00
/
7 Day

Rental

Pricing Chart
Shipping Rates

Interested in purchasing?

Includes

  • (2) BP-TRX transceiver
  • (2) 3.5mm TRS lavalier
  • Locking TRS cable
  • (2) Timecode sync cable
  • USB Type-A to Type-C cable
  • USB Type C to A (female) adapter
  • (2) Antenna
  • (2) Belt clip
  • (2) Mic hardware

Resources

  • Manual

    • Deity Connect BP-TRX Timecode / Wireless Lav Mic Kit

    The Deity Connect BP-TRX Timecode / Wireless Lav Mic Kit includes everything you need for a 2-unit BP-TRX kit with timecode support. Key features include:

    • Includes two BP-TRX units

    • Simultaneously transmit and record audio

    • Includes timecode data and IEM support

    • Lavalier Mic with locking 3.5mm connector

    Read More

    Q & A

  • What if I need more than 2 units?

    • A BP-TRX can transmit to up to 4 other BP-TRX units or to a DUO-RX receiver, so all you’ll have to do is rent two of these kits and you’ll have everything you need.

    • If you’re using multiple BP-TRX units, make sure to use a different user ID for each.

  • How do I connect the transmitter to the receiver?

    • Pair the two by choosing the transmission mode for the transmitter and the receiving mode for the receiver, entering the “Pair” menu option on both devices, and selecting “Yes.” The two will connect within seconds.

  • Will I need anything else?

    • If you plan on using the backup record function on one or more of the transmitter units, you’ll need a microSD card for each that is no larger than 128GB. We recommend the Sandisk UHS-1 microSDXC 128GB Extreme Pro U3 A2.

    • This rental does not include a USB Type C wall charger for charging the internal batteries. You can use a computer, your own, or rent one here.

  • Why won't the screen or buttons work?

    • The BP-TRX has a screen lock. It can be turned off by pressing and holding the Up and Down buttons simultaneously for 3 seconds.

  • Why does the Deity keep dropping out even at close range?

    • Make sure the antennae are screwed on properly and facing away from you. Keep the transceiver away from any routers or cell phones, as they can cause interference.

    • If you’re using multiple BP-TRX units, make sure to use a different user ID for each.

    • Specifications

    Audio Type

    Lavalier Mic
    Brand

    Deity
    Item Type

    Audio
    Mfr. Model Number

    DDCTIMEKITUS
    Microphone

    Microphone Type

    • Lavalier
    Sound Field
    • Mono
    Capsule
    • Electret Condenser
    Polar Pattern
    • Omnidirectional
    Outputs
    • 1x 1/8" / 3.5mm TRS Male Unbalanced
    System

    Wireless Technology

    • Digital 2.4 GHz
    RF Channel Scanning
    • Auto-Scan
    Max Operating Range
    • 328.1’ / 100m
    Max Transmitters Per Band
    • 4
    Built-In Recorder
    • Yes
    Timecode Support
    • Yes
    Sample Rate / Resolution
    • 48 kHz / 24-Bit
    Latency
    • 19 ms
    Encryption
    • Proprietary
    Modulation
    • Proprietary
    Transmitter

    Transmitter Type

    • Bodypack with Microphone / Camera-Mount
    RF Output Power
    • 10 / 25 / 50 / 100 mW
    Audio I/O
    • 1x 1/8" / 3.5mm TRS Female Unbalanced Input (Lockable)
    Included Cable Connector
    • None
    Plug-In Power
    • 2.5 V
    Pad
    • None
    Auto-Level Control
    • No
    Gain Range
    • -12 to +36 dB
    Signal Processing
    • High-Pass Filter: 20 Hz
    • High-Pass Filter: 200 Hz
    Frequency Response
    • 20 Hz to 20 kHz
    Sync Method
    • Proprietary
    Antenna
    • 1x 1/4 Wave External, Detachable (Beltpack)
    • 1x 1/4 Wave Internal
    Power Requirements
    • Battery
    Battery Type
    • 1x Built-In Rechargeable
    Internal Battery Capacity
    • 2800 mAh
    Battery Charging Time
    • 130 Minutes
    Approx. Battery Life
    • 21 Hours (Record Mode)
    • 25 Hours (Timecode Mode)
    • 12 Hours (Transmit/Receive Modes)
    USB/Lightning I/O
    • 1x USB-C (Audio, Charging)
    Display & Indicators
    • 1x OLED (Audio Level, Battery Status, Multifunction, Power)
    Housing
    • ABS, Aluminum
    Operating Temperature
    • 14 to 113°F
    Dimensions (L x W x H)
    • 2.5 × 3.3 × 0.7″
    Weight
    • 0.4 lb.

    Includes

    • (2) BP-TRX transceiver
    • (2) 3.5mm TRS lavalier
    • Locking TRS cable
    • (2) Timecode sync cable
    • USB Type-A to Type-C cable
    • USB Type C to A (female) adapter
    • (2) Antenna
    • (2) Belt clip
    • (2) Mic hardware
