Epiphan Pearl Nano Streamer & Recorder

$112.00
/
7 Day

Rental

Interested in purchasing?

Includes

  • Pearl Nano
  • AC adapter
  • Cat6A ethernet cable (7’)
  • Carry case

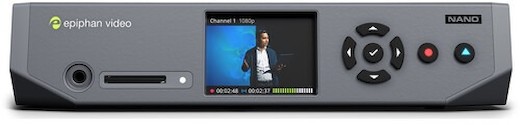

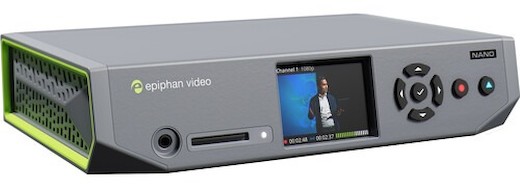

Epiphan Pearl Nano Streamer & Recorder

The Epiphan Pearl Nano is a small but mighty HDMI / SDI-compatible, single channel hardware encoder capable of streaming and recording H.264 video up to 1080p60. Key features include:

  • Accepts signals up to 1080p60 via HDMI or SDI

  • Supports SRT, HLS, MPEG-DASH, RTMP, and RTMPS

  • Adjust basic settings w/ device, advanced settings w/ webUI

  • Records to SD or external SSD over USB

Read More

Q & A

  • What should I do if I forget my assigned password?
    • Unfortunately, we have no access to assigned user information during rental periods. If you lose a password during your rental, you will either need to control the device through the on-board buttons and screen or perform a factory reset and reassign a new password.

  • Why is the admin panel prompting me for three different passwords?
    • We wipe all user data from the device between rentals so there will be no assigned password by default.

    • Since the device is designed to have scalable access, you will be prompted to assign a password to the admin, operator, and viewer of a project before logging into the admin panel.

  • How do I access the web remote / admin panel?
    • By default, the Pearl Nano is set to DHCP but can configured for a static ip address using the front controls.

    • The default static ip address is 192.168.10.1 and can be used as the web remote URL with correct network settings.

  • Can this be used for live switching?
    • No, this device is only capable of encoding a single video source at a time.

  • Specifications

    Brand

    Epiphan

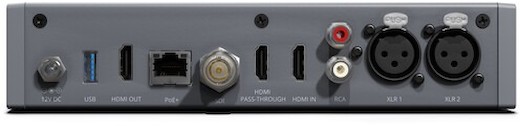

    Inputs/Outputs

    Video Inputs

    • 12G-SDI
    • HDMI 2.0 (Type-A)
    Audio Inputs
    • (2) 3-pin XLR line level
    • RCA
    Video Outputs
      (2) HDMI 2.0
    <Audio Output
    • 3.5mm stereo headphone jack
    • Digital/embedded audio
    Additional I/O
    • RJ-45
    • USB Type-A

    Item Type

    Monitoring, Recorder, and Switcher

    Monitoring Type

    Streaming

    Physical

    Dimensions

    • 8.13″ x 5.91″ x 1.69″
    • 206 mm x 150 mm x 43 mm
    Weight
    • 2 lbs.
    • .907 kg

    Power

    Input Rating

    • 90 to 240 VAC, 1.5 ARMS, 47 to 63 Hz
    Output Rating
    • 12 VDC, 2.5 A, 30 W

    Recording

    Formats

    • AVI
    • MOV
    • MP4
    • MPEG-TS
    Uploaded Image Formats
    • JPEG
    • PNG
    File System
    • SD: EXT4
    • USB Storage: FAT16, FAT32, XFS, EXT2, EXT3, EXT4, NTFS

    Video Processing

    Resolution Range

    • Recorded: 480p to 1080p
    • Streamed: H.264: 480p to 1080p
    • HDMI out: 480p to 1080p
    Codec
    • H.264/AVC
    Output Color Space
    • 4:2:0
    • 8-bit
    Bitrate
    • 1 – 50 Mbps (selectable)
    • Constant
    Key Frames
    • 1/2 s, and 1 s up to 5 s in 1 second intervals

    Includes

    • Pearl Nano
    • AC adapter
    • Cat6A ethernet cable (7’)
    • Carry case

    Specifications

    Brand

    Epiphan

    Inputs/Outputs

    Video Inputs

    • 12G-SDI
    • HDMI 2.0 (Type-A)
    Audio Inputs
    • (2) 3-pin XLR line level
    • RCA
    Video Outputs
      (2) HDMI 2.0
    <Audio Output
    • 3.5mm stereo headphone jack
    • Digital/embedded audio
    Additional I/O
    • RJ-45
    • USB Type-A

    Item Type

    Monitoring, Recorder, and Switcher

    Monitoring Type

    Streaming

    Physical

    Dimensions

    • 8.13″ x 5.91″ x 1.69″
    • 206 mm x 150 mm x 43 mm
    Weight
    • 2 lbs.
    • .907 kg

    Power

    Input Rating

    • 90 to 240 VAC, 1.5 ARMS, 47 to 63 Hz
    Output Rating
    • 12 VDC, 2.5 A, 30 W

    Recording

    Formats

    • AVI
    • MOV
    • MP4
    • MPEG-TS
    Uploaded Image Formats
    • JPEG
    • PNG
    File System
    • SD: EXT4
    • USB Storage: FAT16, FAT32, XFS, EXT2, EXT3, EXT4, NTFS

    Video Processing

    Resolution Range

    • Recorded: 480p to 1080p
    • Streamed: H.264: 480p to 1080p
    • HDMI out: 480p to 1080p
    Codec
    • H.264/AVC
    Output Color Space
    • 4:2:0
    • 8-bit
    Bitrate
    • 1 – 50 Mbps (selectable)
    • Constant
    Key Frames
    • 1/2 s, and 1 s up to 5 s in 1 second intervals
