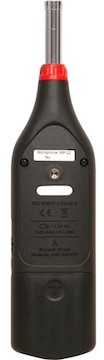

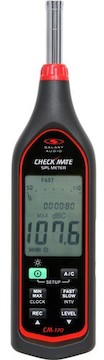

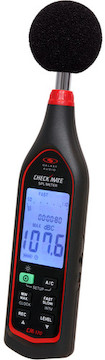

Galaxy Audio CM-170 Check Mate Series Type II SPL Meter

$23.00

7 Day

Rental

Arrival Date

Return Date

Pricing Chart

Shipping Rates

Interested in purchasing?

Includes

CM-170 Check Mate SPL Meter
USB 2.0 A Male to Micro B 3ft

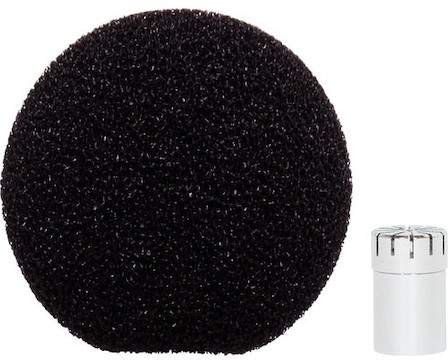

Windscreen
Clamshell Case

Resources

CM-170 Software (WIndows)

Quick Start Guide

Manual

Galaxy Audio CM-170 Check Mate Series Type II SPL Meter

The Galaxy Audio CM-170 is a simple, handheld Sound Pressure Level meter for measuring audio volume in live sound and other event environments. Key features include:

Frequency and Time weighting
30-130dB range with ± 1.4dB accuracy
IEC 61672-1 Class 2, ANSI S1.4 Type 2 rated
Windows-only software required for some features

Q & A

Is the software for the CM-170 compatible with Apple/Mac OS?

CM-170 software requires Windows OS. However, it will work with desktop virtualization software like Parallels.

Specifications

Audio Type	Meter
Auxiliary Output	AC signal output
Battery Life	Approximately 24 hours
Brand	Galaxy Audio
Capacity	Data Logging: 64,000 records
Dimensions	10.4 × 2.5 × 1.1″
Display	Liquid Crystal Display
Dynamic Range	60 dB
Frequency Range	20 Hz to 8 kHz
Item Type	Audio
Level Range	Lo: 30 to 90 dB Med: 50 to 110 dB Hi: 70 to 130 dB Auto: 30 to 130 dB
Maximum Power Consumption	Aprox. 0.2 W
Microphone	1/2" electret condenser
Operating Temperature	32 to 104°F
Power Requirements	4 x AAA, NEDA 24A, IEC LR03 batteries
Storage Temperature	14 to 140°F
Supported Standards	IEC 61672-1 Class 2, ANSI S1.4 Type 2

See All

Includes

CM-170 Check Mate SPL Meter
USB 2.0 A Male to Micro B 3ft
Windscreen
Clamshell Case

Specifications

Audio Type	Meter
Auxiliary Output	AC signal output
Battery Life	Approximately 24 hours
Brand	Galaxy Audio
Capacity	Data Logging: 64,000 records
Dimensions	10.4 × 2.5 × 1.1″
Display	Liquid Crystal Display
Dynamic Range	60 dB
Frequency Range	20 Hz to 8 kHz
Item Type	Audio
Level Range	Lo: 30 to 90 dB Med: 50 to 110 dB Hi: 70 to 130 dB Auto: 30 to 130 dB
Maximum Power Consumption	Aprox. 0.2 W
Microphone	1/2" electret condenser
Operating Temperature	32 to 104°F
Power Requirements	4 x AAA, NEDA 24A, IEC LR03 batteries
Storage Temperature	14 to 140°F
Supported Standards	IEC 61672-1 Class 2, ANSI S1.4 Type 2
