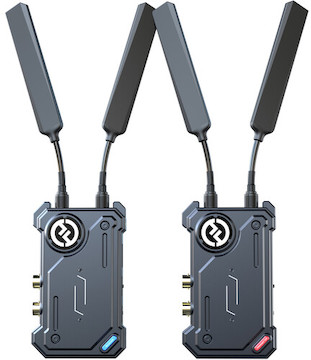

Hollyland Cosmo C1 SDI/HDMI Wireless Video System

$72.00
/
7 Day

Rental

Interested in purchasing?

Includes

  • Cosmo C1 Transmitter
  • Cosmo C1 Receiver
  • 4 dBi antenna (4x)
  • 5 dBi antenna (2x)
  • AC adapter
  • Hot shoe adapter
  • Expansion bracket

Resources

  • Manual
  • Hollyland Cosmo C1 SDI/HDMI Wireless Video System

    The Hollyland Cosmo C1 SDI/HDMI Wireless Video System gives you everything you need to wirelessly stream high quality video from up to 1000 feet away. Key features include:

    • 1000’ Line-of-Sight 1080p60 Transmission

    • 5.1 to 5.9 GHz Frequency Range

    • AES-128 Encryption, 40 ms Latency

    • HEVO technology for stable transmission

    Read More

    Q & A

  • How many Cosmo sets can I use simultaneously?
    • Hollyland recommends using no more than four pairs of Cosmo C1s in one space. They recommend keeping receivers 0.5m from one another at an optimal height of 1.7m.

  • Can the C1 transmitter cross covert an HDMI signal to SDI for a looped output?
    • No. While the transmitter can take either an HDMI or SDI input signal, it can only directly loop out if the input signal is SDI.

  • How is this thing powered?
    • The Cosmo C1 has a range of power options- via the included AC adapter, a USB-C cable, or an L-Series battery like the Hawk-Woods DV-F990.

  • Can a receiver use both HDMI and SDI simultaneously?
    • Yes. Both HDMI and SDI can be used at the same time.

  • How many receivers can be used with one transmitter?
    • It’s a point to point system, meaning one transmitter to one receiver.

  • Specifications

    Brand

    Hollyland

    Inputs/Outputs

    Antenna I/O

    • Transmitter/Receiver: 2x RP-SMA Male

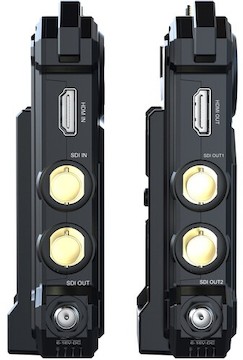

    Video I/O
    • Transmitter: 1x BNC (3G-SDI) Input
    • Transmitter: 1x HDMI Input
    • Transmitter: 1x BNC (3G-SDI) Loop Output
    • Receiver: 2x BNC (3G-SDI) Output
    • Receiver: 1x HDMI Output
    HDCP Support
    • Not Specified by Manufacturer
    Embedded Audio
    • HDMI/SDI: 2-Channel
    Audio I/O
    • No
    Power I/O
    • Transmitter/Receiver: 1x USB-C (2 A / 5 VDC) Input
    Other I/O
    • Transmitter/Receiver: 1x USB-C 3.0 / 3.1/3.2 Gen 1 Input
    Encryption
    • 128-Bit AES

    Item Type

    Monitoring and Wireless Video

    Monitoring Type

    Wireless

    Mounting

    1x Cold Shoe

    Physical

    Dimensions:

    • Transmitter/Receiver: 4.5 × 2.8 × 1.3″ / 115 × 70 × 32 mm, Excluding Battery Plate
    Weight:
    • Transmitter: 7.5 oz
    • Receiver: 7.4 oz

    Power

    DC Input Power

    • 6 to 16 VDC
    Battery Type
    • Transmitter/Receiver: 1x L-Series
    Power Consumption
    • Transmitter/Receiver: 9 W

    Timecode Support

    Yes

    See All

    Includes

    • Cosmo C1 Transmitter
    • Cosmo C1 Receiver
    • 4 dBi antenna (4x)
    • 5 dBi antenna (2x)
    • AC adapter
    • Hot shoe adapter
    • Expansion bracket

    Specifications

    Brand

    Hollyland

    Inputs/Outputs

    Antenna I/O

    • Transmitter/Receiver: 2x RP-SMA Male
    Video I/O
    • Transmitter: 1x BNC (3G-SDI) Input
    • Transmitter: 1x HDMI Input
    • Transmitter: 1x BNC (3G-SDI) Loop Output
    • Receiver: 2x BNC (3G-SDI) Output
    • Receiver: 1x HDMI Output
    HDCP Support
    • Not Specified by Manufacturer
    Embedded Audio
    • HDMI/SDI: 2-Channel
    Audio I/O
    • No
    Power I/O
    • Transmitter/Receiver: 1x USB-C (2 A / 5 VDC) Input
    Other I/O
    • Transmitter/Receiver: 1x USB-C 3.0 / 3.1/3.2 Gen 1 Input
    Encryption
    • 128-Bit AES

    Item Type

    Monitoring and Wireless Video

    Monitoring Type

    Wireless

    Mounting

    1x Cold Shoe

    Physical

    Dimensions:

    • Transmitter/Receiver: 4.5 × 2.8 × 1.3″ / 115 × 70 × 32 mm, Excluding Battery Plate
    Weight:
    • Transmitter: 7.5 oz
    • Receiver: 7.4 oz

    Power

    DC Input Power

    • 6 to 16 VDC
    Battery Type
    • Transmitter/Receiver: 1x L-Series
    Power Consumption
    • Transmitter/Receiver: 9 W

    Timecode Support

    Yes

    See All
