Magewell Pro Convert SDI 4K Plus

$71.00

7 Day

Rental

Arrival Date

Return Date

Pricing Chart

Shipping Rates

Interested in purchasing?

Includes

Magewell Pro Convert SDI 4K Plus
Magewell 5V / 3A USB-A Female AC Adapter
Magewell Pro Convert Mounting Bracket
Magewell Pro Convert 1/4-20 × 11/32 Thumbscrew
USB 2.0 A Male to Standard-B 5-6’ Cable
Tetrafab Accessory EVA Medium Case (Black)
Accessory EVA Medium Two Compartment Case Insert

Resources

Manual

Magewell Pro Convert SDI 4K Plus

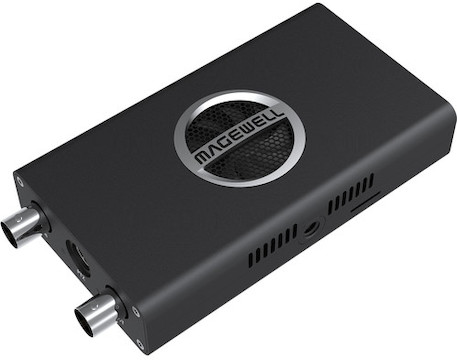

The Magewell Pro Convert SDI 4K Plus supports up to 4K30 SDI input and is able to convert one HDMI signal with 8 channels of embedded audio to an NDI stream Key features include:

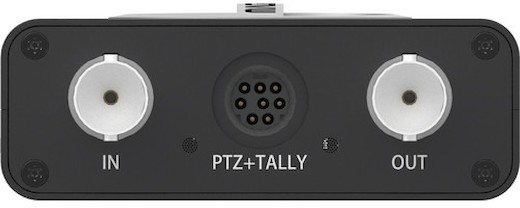

(1) SDI input and (1) SDI loop-through output
Mini DIN-8 connection for PTZ/Tally
NDI encode up to DCI 4K60 4:2:2

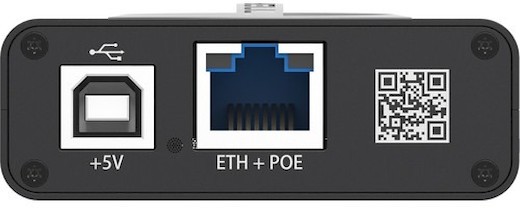

RJ45 + PoE NDI output

Q & A

Does this rental include SDI cables?

Nah, you’ll have to grab those separately. You can find quite a few options over in the Recommended section of your screen.

Does this unit encode/decode NDI on a chip?

Yes, this unit does offering processing within the system.

Specifications

Brand	Magewell
Dimensions	4.65 × 2.64 × 0.91″
Embedded Audio	LAN (RJ45)/SDI: 16-Channel
Environmental	Operating Temperature 32 to 113°F Storage Temperature -4 to 158°F Operating Humidity 5 to 90% ()
Hardware	Media Card Reader 1x SD (Unspecified Type) OS Compatibility Windows 7 to 10 macOS
Input Video Format	SDI (10/12-Bit 4:4:4/4:2:2 RGB, YCC) DCI 4K at 30 fps 1080p 50/59.94/60 fps 1080i 50/59.94/60 fps
Inputs/Outputs	Video Inputs 1x BNC (6G-SDI) Female Video Outputs 1x BNC (6G-SDI) Female (Loop Output) Other I/O 1x RJ45 LAN, NDI, PoE Input/Output 1x Mini-DIN 8-Pin PTZ, Tally 1x USB-B ECM, RNDIS Input (Shared Power USB-B) Expansion Slots No
Item Type	Monitoring & Recording
Monitoring & Recording Type	Signal Converter
Output Video Format	SDI (10/12-Bit) DCI 4K at 60 fps
Power	Power I/O 1x USB-B (5 VDC at 2.1 A) Input PoE Support PoE 802.3af Power Consumption Device: 5 VDC at 1.5 A (7 W)
Supported Standards	Video Standard Compliance SMPTE 259M/292M/425M/ST-2081 ITU -R BT.601/BT.709/BT.2020 HDCP Support No EDID Support Manual Control HDR Compatibility Not Specified by Manufacturer

See All

Includes

Magewell Pro Convert SDI 4K Plus
Magewell 5V / 3A USB-A Female AC Adapter
Magewell Pro Convert Mounting Bracket
Magewell Pro Convert 1/4-20 × 11/32 Thumbscrew
USB 2.0 A Male to Standard-B 5-6’ Cable
Tetrafab Accessory EVA Medium Case (Black)
Accessory EVA Medium Two Compartment Case Insert

Specifications

Brand	Magewell
Dimensions	4.65 × 2.64 × 0.91″
Embedded Audio	LAN (RJ45)/SDI: 16-Channel
Environmental	Operating Temperature 32 to 113°F Storage Temperature -4 to 158°F Operating Humidity 5 to 90% ()
Hardware	Media Card Reader 1x SD (Unspecified Type) OS Compatibility Windows 7 to 10 macOS
Input Video Format	SDI (10/12-Bit 4:4:4/4:2:2 RGB, YCC) DCI 4K at 30 fps 1080p 50/59.94/60 fps 1080i 50/59.94/60 fps
Inputs/Outputs	Video Inputs 1x BNC (6G-SDI) Female Video Outputs 1x BNC (6G-SDI) Female (Loop Output) Other I/O 1x RJ45 LAN, NDI, PoE Input/Output 1x Mini-DIN 8-Pin PTZ, Tally 1x USB-B ECM, RNDIS Input (Shared Power USB-B) Expansion Slots No
Item Type	Monitoring & Recording
Monitoring & Recording Type	Signal Converter
Output Video Format	SDI (10/12-Bit) DCI 4K at 60 fps
Power	Power I/O 1x USB-B (5 VDC at 2.1 A) Input PoE Support PoE 802.3af Power Consumption Device: 5 VDC at 1.5 A (7 W)
Supported Standards	Video Standard Compliance SMPTE 259M/292M/425M/ST-2081 ITU -R BT.601/BT.709/BT.2020 HDCP Support No EDID Support Manual Control HDR Compatibility Not Specified by Manufacturer

See All
