NewTek Spark Plus I/O 4K

$73.00
/
7 Day

Rental

Interested in purchasing?

Learn More

Includes

  • Spark Plus IO 4K
  • Type-A 9V/2A 1-Port QC 3.0 charger
  • USB Type-A to C cable
  • USB Type-A to C adapter
  • 1/4-20 shoe mount

Resources

  • Manual
  • NDI Tools
  • NewTek Spark Plus I/O 4K

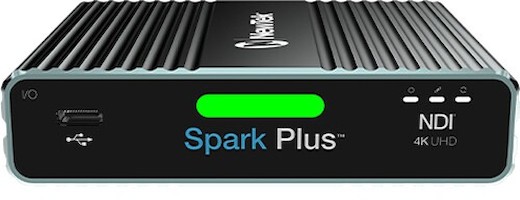

    The NewTek Spark Plus I/O 4K is an ultra compact, bi-directional UHD 4K HDMI to NDI converter that is easily configured for encode or decode mode through a user-friendly web-based interface. Key features include:

    • HDMI to NDI® bi-directional converter

    • Supports up to UHD 4K/60p

    • Program and preview tally indicator lights

    • 1/4-20" shoe adapter and USB power supply included

    Read More

    Q & A

  • Can this device decode an NDI HX signal?
    • No. The NewTek Spark Plus can only decode full NDI signals. If you have questions about compatibility within your workflow, contact us and a tech will be happy to help you determine the best gear for your shoot.

  • Does this device have a fallback IP address?
    • Yes! If you have trouble locating your device or forget an assigned IP address during your rental period, you can reset the Spark Plus by pressing the button on the bottom with a paperclip and using the fallback address 192.168.100.168.

  • How do I access the webUI?
    • The easiest way to access the webUI is through NewTek’s NDI Studio or Video Monitor app or simply pointing your computer’s web browser to the device’s IP address.

    • Once the web remote is loaded, you will be prompted to enter credentials (admin/admin) and accept the EULA.

  • Does this rental include ethernet cables?
    • This rental does not include ethernet cables but they are available here as separate rental items.

  • Specifications

    Brand

    NewTek

    Formats
    • 2160p: 60, 59.94, 30, 29.97, 25
    • 1080p: 60, 59.94, 50, 30, 29.97, 25
    • 720p: 60, 59.94, 50, 29.97
    • 576p: 50
    • 480p: 60, 59.94
    Inputs/Outputs

    Video

    • HDMI IN/OUT
    • RJ-45 (NDI and PoE)
    Audio
    • 3.5mm Mono Mic In
    • 3.5mm Line Out
    • HDMI Embedded I/O
    DC
    • USB-C

    Item Type

    Monitoring

    Monitoring Type

    Accessories

    Physical

    Dimension

    • 3.94 × 3.15 × .94″
    • 100 × 80 × 24mm
    Weight
    • .53 lbs.
    • .24 kg
    Mounting Points
    • Single 1/4-20" inset (base)

    Includes

    • Spark Plus IO 4K
    • Type-A 9V/2A 1-Port QC 3.0 charger
    • USB Type-A to C cable
    • USB Type-A to C adapter
    • 1/4-20 shoe mount

    Specifications

    Brand

    NewTek

    Formats
    • 2160p: 60, 59.94, 30, 29.97, 25
    • 1080p: 60, 59.94, 50, 30, 29.97, 25
    • 720p: 60, 59.94, 50, 29.97
    • 576p: 50
    • 480p: 60, 59.94
    Inputs/Outputs

    Video

    • HDMI IN/OUT
    • RJ-45 (NDI and PoE)
    Audio
    • 3.5mm Mono Mic In
    • 3.5mm Line Out
    • HDMI Embedded I/O
    DC
    • USB-C

    Item Type

    Monitoring

    Monitoring Type

    Accessories

    Physical

    Dimension

    • 3.94 × 3.15 × .94″
    • 100 × 80 × 24mm
    Weight
    • .53 lbs.
    • .24 kg
    Mounting Points
    • Single 1/4-20" inset (base)

    Resources

  • Manual
  • NDI Tools
  • Reviews

    See Reviews
