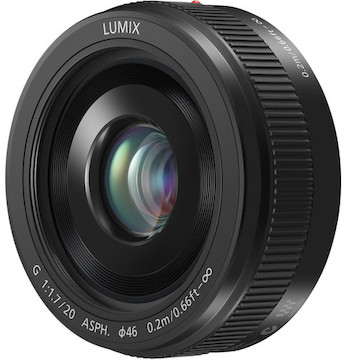

Panasonic 20mm f/1.7 II ASPH
Includes
- 20mm f/1.7 II lens
- Front & rear caps
- B+W 46mm protective filter
- Lens bag
*Lens hood not included!
Resources
Panasonic 20mm f/1.7 II ASPH
The Panasonic 20mm f/1.7 II ASPH is a compact normal range lens and update to the original Panasonic 20mm f/1.7. Key features include:
Great for street, landscape, and general-purpose photography
Excellent for low-light shooting
Fast, accurate autofocus
Seven-blade curved aperture diaphragm
Q & A
Continuous autofocus doesn’t work with still-image capture.
Panasonic camera bodies will automatically correct for distortion when this lens is mounted. Olympus camera bodies won’t.
Specifications
| Angle of View | 57º |
| Aperture | f1.7-16 |
| Aperture Blades | 7 curved |
| Aspherical Elements | 2 |
| Autofocus | Autofocus |
| Brand | Panasonic |
| Diameter | 2.48" |
| Filter Size | 46.0mm |
| Filter Style | |
| Focal Length | 20.0-20.0 |
| Focusing System | Internal |
| Groups/Elements | 5/7 |
| Hood Included | No |
| Image Stabilization | No |
| Item Type | Lens |
| Length | 1.0" |
| Lens Type | Normal Range and Wide Angle |
| Low Dispersion Elements | 0 |
| Max Aperture | 1.7 |
| Maximum Magnification | .13x |
| Minimum Aperture | 22.0 |
| Minimum Focusing Distance | 0.66feet |
| Mount | Micro 4/3rds |
| Weather Resistant | No |
| Weight | 0.19 lb. |
| Zoom Method | None |
Includes
- 20mm f/1.7 II lens
- Front & rear caps
- B+W 46mm protective filter
- Lens bag
*Lens hood not included!
Specifications
| Angle of View | 57º |
| Aperture | f1.7-16 |
| Aperture Blades | 7 curved |
| Aspherical Elements | 2 |
| Autofocus | Autofocus |
| Brand | Panasonic |
| Diameter | 2.48" |
| Filter Size | 46.0mm |
| Filter Style | |
| Focal Length | 20.0-20.0 |
| Focusing System | Internal |
| Groups/Elements | 5/7 |
| Hood Included | No |
| Image Stabilization | No |
| Item Type | Lens |
| Length | 1.0" |
| Lens Type | Normal Range and Wide Angle |
| Low Dispersion Elements | 0 |
| Max Aperture | 1.7 |
| Maximum Magnification | .13x |
| Minimum Aperture | 22.0 |
| Minimum Focusing Distance | 0.66feet |
| Mount | Micro 4/3rds |
| Weather Resistant | No |
| Weight | 0.19 lb. |
| Zoom Method | None |
Resources
Includes
- 20mm f/1.7 II lens
- Front & rear caps
- B+W 46mm protective filter
- Lens bag
*Lens hood not included!
Resources

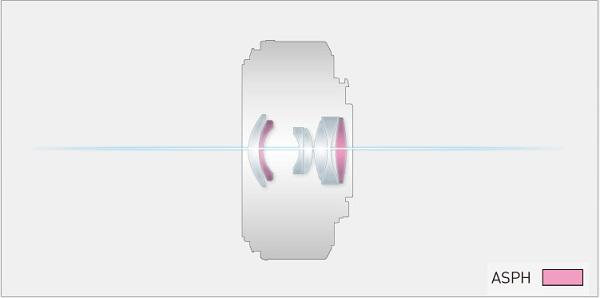

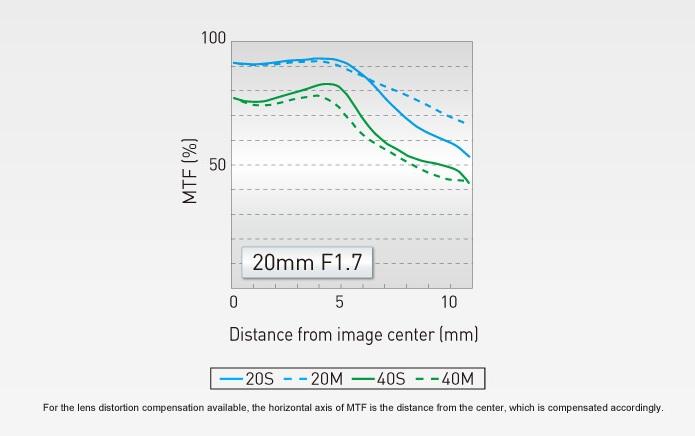

Diagrams
