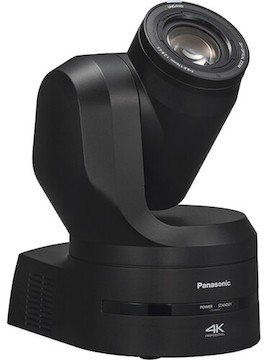

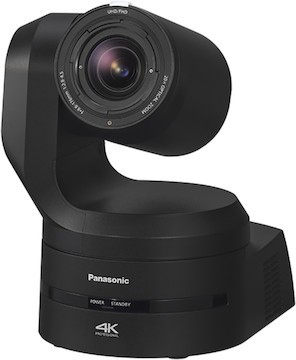

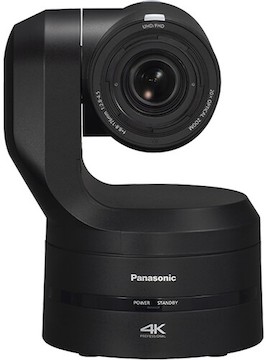

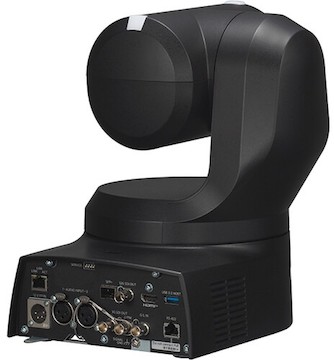

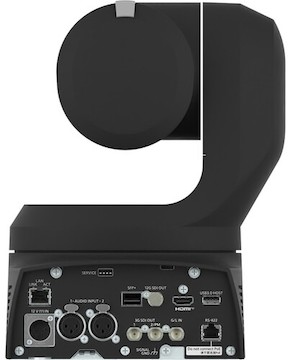

Panasonic AW-UE160 UHD 4K 20x PTZ Camera

$794.00
/
7 Day

Rental

Interested in purchasing?

Includes

  • Panasonic AW-UE160 UHD 4K 20x
  • 3 Prong Universal Power Cord 6ft
  • XLR-4pin AC Adapter
  • H30A-F14 Panasonic AW-UE160 Case Insert
  • H30A-F14 Panasonic AW-UE160 Case Insert (Top)
  • Pelican im2275 Case (H30)

Resources

  • Manual
  • Panasonic AW-UE160 UHD 4K 20x PTZ Camera

    The Panasonic AW-UE160 UHD 4K 20x PTZ Camera is designed to capture the clearest of images in the most challenging environments. Key features include:

    • Phase-detection autofocus

    • 20x optical zoom

    • Two XLR audio inputs

    • 75.1° horizontal viewing angle

    Read More

    Q & A

  • How do I access the camera upon initial startup?
    • Upon initial startup, you must follow these steps:

    • 1. Access the camera via the webUI. The IP address is 192.168.0.10 and the Subnet is 255.255.255.0

    • 2. Assign an account name and password.

    • 3. Reboot the camera to log back in. You’ll be prompted to enter the initial network settings.

  • How can I perform a factory reset?

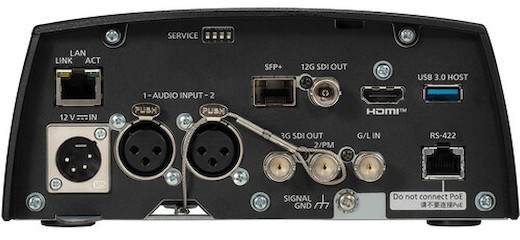

    • Turn off the camera and flip up the first service switch on the back of the camera and power cycle. Once power cycled, unplug the camera and flip the switch back off. Once camera is powered back on it will be at its original factory settings.

  • Does this camera support microSD recording?
    • No, this camera doesn’t support microSD recording.

  • How do I monitor camera view?
    • You can monitor camera view via webUI, SDI / HDMI, and compatible third-party software.

    • This camera uses NDI HX2 or High Bandwidth NDI protocol, so we recommend making sure all third-party software is up to date.

  • What is the difference between NDI and NDI|HX?
    • NDI is a high quality/high bandwidth streaming output while NDI|HX is high efficiency/low bandwidth streaming output. Use depends on your network setup.

  • How do I activate NDI or NDI|HX?
    • Access the webUI and go to setup at the top

    • Enter username and password if prompted

    • Select the Video over IP tab

    • Select Streaming Mode

    • Select High Bandwidth NDI or NDI|HX2 under drop down menu and set.

  • Specifications

    Brand

    Panasonic

    Camcorder Type

    PTZ

    Camera Type

    Camcorder

    Control

    Move Speed

    • Pan: 0.08 to 1800°/sec
    • Tilt: 0.08 to 1800°/sec
    Movement Range
    • Pan: 350° (-175 to 175°)
    • Tilt: 240° (-30 to 210°)
    Tally Light
    • Yes
    Supported Control Protocols
    • IP
    • RS-422
    Max Cable Length
    • 328.1’ (Cat 5e, Cat 6)

    Environmental

    Operating Temperature

    • 32 to 104°F
    Storage Temperature
    • -4 to 122°F
    Operating Humidity
    • 20 to 90%

    Exposure Control Shutter Speed
    • 1/2000 to 1/48 Second
    Gain
    • 0 to 36 dB
    Precise Scan Rate Control
    • Yes
    Flip / Mirror Support
    • Image Flip
    White Balance
    • 2000 to 15,000K
    General

    OS Compatibility

    • Android
    • Chrome OS
    • macOS 10.13 to 15
      *As of December, 2022: Check with manufacturer for the most up-to-date compatibility
    Dimensions
    • (W x H x D) 10.9 × 9.4 × 8.4″
    Weight
    • 10.1 lb

    Imaging

    Sensor Type

    • 1"-Type MOS Sensor
    Horizontal Resolution (TV Lines)
    • 1600 TV Lines
    Sensor Resolution
    • Effective: 9.62 Megapixel
    Built-In ND Filter
    • Mechanical Filter Wheel with 2-Stop (1/4), 4-Stop (1/16), 6-Stop (1/64) ND Filters
    Low Pass Filter
    • Optical
    Focus Control
    • Autofocus
    • Manual Focus

    See All
