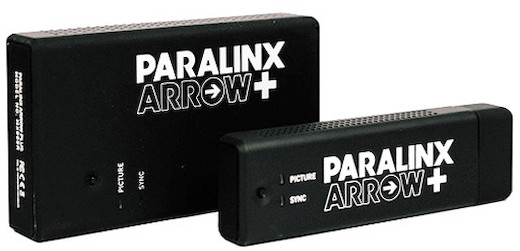

Paralinx Arrow Plus 1:1 HD Wireless Kit

237042866185

Includes

  • 1 Paralinx Arrow Plus transmitter w/ installed Shield
  • 1 Paralinx Arrow Plus receiver
  • 1 Remote
  • 1 Remote IR cable
  • 1 Right-angle mini-USB to USB power cable for transmitter
  • 1 Barrel-USB power cable for receiver
  • 2 Portable USB battery packs (powers Arrow+ for 5hrs)
  • 2 microUSB chargers
  • 15mm rod clamp
  • HDMI cables are not included

Resources

  • Manual
  • Paralinx Arrow Plus 1:1 HD Wireless Kit

    The Paralinx Arrow Plus system is a fantastic redesign and upgrade of the original Paralinx Arrow plug-and-play wireless monitoring solution. It enables transmission of live video feed from one source to multiple receivers. Key features include:

    • Multiple receiver streaming. The Arrow Plus offers the ability to transmit one signal to multiple receivers. Extras receivers are available here.
    • Wireless Monitoring. Offers uncompressed 4:2:2 1080p 10-bit video to monitor or recorder with less than 2ms latency. Line-of-sight transmission is up to 328′ without break-up or image degradation, and 200′+ without line-of-sight. 256-bit encryption of transmitted signals ensure a secure feed. Supported frame rates: 23.98p, 24p, 25p, 29.97p, 30p, 50i, 50p, 59.94i, 60i, & 60p​.
    • HDMI Input / Output. Full-size HDMI connections makes use of commonly available cables (not included). The receiver has an HDMI (1.3 compliant) output that supports up to 7.1 audio channels.
    • Powering Options. The transmitter and receiver are powered via two Portable USB battery packs that provide around 5 hours of use.

    Warning:

    • The Paralinx products are meant for simple monitoring only! You should never use them to go into a recorder or switcher; any recorders/switchers should be ahead of the Paralinx in your signal chain.
    • Paralinx products are not compatible with SmallHD 502 & 702 monitors.

    Specifications

    Item Type

    Monitoring

    Monitoring Type

    Monitor and Wireless

    Includes

    • 1 Paralinx Arrow Plus transmitter w/ installed Shield
    • 1 Paralinx Arrow Plus receiver
    • 1 Remote
    • 1 Remote IR cable
    • 1 Right-angle mini-USB to USB power cable for transmitter
    • 1 Barrel-USB power cable for receiver
    • 2 Portable USB battery packs (powers Arrow+ for 5hrs)
    • 2 microUSB chargers
    • 15mm rod clamp
    • HDMI cables are not included

    Specifications

    Item Type

    Monitoring

    Monitoring Type

    Monitor and Wireless

    Resources

  • Manual
  • Paralinx Arrow Plus 1:1 HD Wireless Kit

    $1000.00
    /
    7 Day

    Rental
