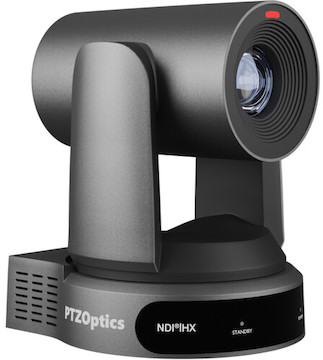

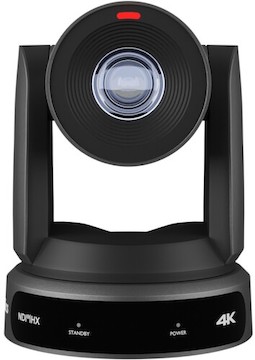

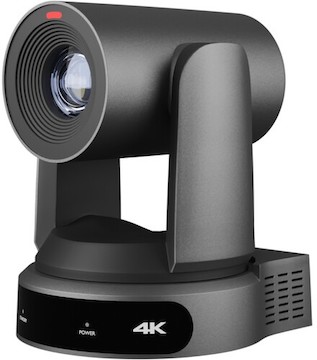

PTZOptics Move 4K 30X-SDI/HDMI/USB/IP Camera

$146.00

7 Day

Rental

Available 05/09/24

Renting this item will adjust your rental dates.

Arrival Date

Return Date

Pricing Chart

Shipping Rates

Includes

Move 4K Camera
Infrared Remote
AC Adapter
Hood
Case
Case Insert (bolster)
Case Insert

Resources

Manual

PTZOptics Move 4K 30X-SDI/HDMI/USB/IP Camera

The PTZOptics Move 4K 30X-SDI/HDMI/USB/IP Camera is a high-resolution streaming and tracking camera designed for large groups like your classroom, house of worship, or conference room. Key features include:

1/1.8" CMOS 8.42MP 4K sensor
30x optical zoom, 16x digital zoom
High performance in low light
DC & PoE+ support

Q & A

Does this rental include any cables?

No, just the AC adapter. To add a USB 2.0 A Male to A cable or a DB9 to Mini or DIN8 RS232 7ft Cable, please contact us.

Specifications

Brand	PTZOptics
Camcorder Type	PTZ
Camera Type	Camcorder
Control	Presets 255 Move Speed Pan: 1.7 to 100°/sec Tilt: 1.7 to 69.9°/sec Movement Range Tilt: 120° (-30 to 90°) Tally Light Yes Supported Control Protocols IP IR NDI Pelco-D Pelco-P RS-232 RS-485 VISCA
Environmental	Operating Temperature 14 to 104°F Storage Temperature -40 to 140°F
Exposure Control	Shutter Type Electronic Global Shutter Shutter Speed 1/30 to 1/10000 Seconds Signal-to-Noise Ratio 55 dB Minimum Illumination 0.5 Lux Flip / Mirror Support Image Flip, Mirror (Vertical)
External Video Recording Modes	SDI/BNC HD (1920 × 1080p) at 25/29.97/50/59.94/60.00 fps HD (1920 × 1080i) at 50/59.94/60.00 fps HD (1280 × 720) at 59.94/60.00 fps HDMI / RJ45 / USB UHD 4K (3840 × 2160) at 25/29.97/50/59.94/60.00 fps HD (1920 × 1080p) at 25/29.97/50/59.94/60.00 fps HD (1920 × 1080i) at 50/59.94/60.00 fps HD (1280 × 720) at 59.94/60.00 fps
General	Material of Construction Aluminum Plastic Dimensions (W x H x D) 6.6 × 6.5 × 5.6″ Weight 3.24 lb
Imaging	Image Sensor 1/1.8"-Type CMOS Sensor Resolution Effective: 8.42 Megapixel (3840 × 2160) IR Cut Filter No Built-In ND Filter None Focus Control Autofocus Manual Focus

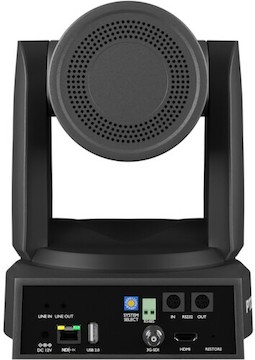

Interface	Video I/O 1 x HDMI 2.0 Output 1 x BNC (3G-SDI) Output 1 x RJ45 (NDI) Output 1 x USB-A 2.0 Output Audio I/O 1 × 1/8" / 3.5 mm TRS Stereo Line Input 1 × 1/8" / 3.5 mm TRS Stereo Line Output Other I/O 1 x D-Sub 8-Pin (RS-232) Control Input 1 x D-Sub 8-Pin (RS-232) Control Output 1 x Block 2-Pin (RS-485) Control Input/Output Built-In Speaker No
Item Type	Camera
Lens	Focal Length 4.4 to 132.6mm Optical Zoom Ratio 30x Max Digital Zoom 16x Field of View Horizontal: 60.7° Maximum Aperture f/1.8 to 2.8
Power	PoE Support PoE+ 802.3at Power I/O 1 x DC (12VDC) Input Power Consumption Device: 12 VDC at 2 A (12 W)
Video Capture	Broadcast Output NTSC/PAL IP Streaming H.264, H.265, MJPEG, NDI\|HX, RTMP, RTSP, SRT 640 × 360 to 3840 × 2160 to 320 × 240 to 720 × 480 to IP Multi-Stream Support Simultaneous: H.264, H.265, MJPEG, RTMP, RTSP: 2160p, 1080p, 720p, 480p, 360p

See All

Includes

Move 4K Camera
Infrared Remote
AC Adapter
Hood
Case
Case Insert (bolster)
Case Insert

Specifications

Brand	PTZOptics
Camcorder Type	PTZ
Camera Type	Camcorder
Control	Presets 255 Move Speed Pan: 1.7 to 100°/sec Tilt: 1.7 to 69.9°/sec Movement Range Tilt: 120° (-30 to 90°) Tally Light Yes Supported Control Protocols IP IR NDI Pelco-D Pelco-P RS-232 RS-485 VISCA
Environmental	Operating Temperature 14 to 104°F Storage Temperature -40 to 140°F
Exposure Control	Shutter Type Electronic Global Shutter Shutter Speed 1/30 to 1/10000 Seconds Signal-to-Noise Ratio 55 dB Minimum Illumination 0.5 Lux Flip / Mirror Support Image Flip, Mirror (Vertical)
External Video Recording Modes	SDI/BNC HD (1920 × 1080p) at 25/29.97/50/59.94/60.00 fps HD (1920 × 1080i) at 50/59.94/60.00 fps HD (1280 × 720) at 59.94/60.00 fps HDMI / RJ45 / USB UHD 4K (3840 × 2160) at 25/29.97/50/59.94/60.00 fps HD (1920 × 1080p) at 25/29.97/50/59.94/60.00 fps HD (1920 × 1080i) at 50/59.94/60.00 fps HD (1280 × 720) at 59.94/60.00 fps
General	Material of Construction Aluminum Plastic Dimensions (W x H x D) 6.6 × 6.5 × 5.6″ Weight 3.24 lb
Imaging	Image Sensor 1/1.8"-Type CMOS Sensor Resolution Effective: 8.42 Megapixel (3840 × 2160) IR Cut Filter No Built-In ND Filter None Focus Control Autofocus Manual Focus
Interface	Video I/O 1 x HDMI 2.0 Output 1 x BNC (3G-SDI) Output 1 x RJ45 (NDI) Output 1 x USB-A 2.0 Output Audio I/O 1 × 1/8" / 3.5 mm TRS Stereo Line Input 1 × 1/8" / 3.5 mm TRS Stereo Line Output Other I/O 1 x D-Sub 8-Pin (RS-232) Control Input 1 x D-Sub 8-Pin (RS-232) Control Output 1 x Block 2-Pin (RS-485) Control Input/Output Built-In Speaker No
Item Type	Camera
Lens	Focal Length 4.4 to 132.6mm Optical Zoom Ratio 30x Max Digital Zoom 16x Field of View Horizontal: 60.7° Maximum Aperture f/1.8 to 2.8
Power	PoE Support PoE+ 802.3at Power I/O 1 x DC (12VDC) Input Power Consumption Device: 12 VDC at 2 A (12 W)
Video Capture	Broadcast Output NTSC/PAL IP Streaming H.264, H.265, MJPEG, NDI\|HX, RTMP, RTSP, SRT 640 × 360 to 3840 × 2160 to 320 × 240 to 720 × 480 to IP Multi-Stream Support Simultaneous: H.264, H.265, MJPEG, RTMP, RTSP: 2160p, 1080p, 720p, 480p, 360p
