Shure ULXD4 Single-Channel Digital Wireless Receiver (H50)

$89.00

7 Day

Rental

Arrival Date

Return Date

Pricing Chart

Shipping Rates

Interested in purchasing?

Includes

Shure ULXD4 Receiver (H50)
Shure PS43US Locking Barrel AC Adapter
(2) Shure UA8-518-598 Antenna 14"
Porta Brace PB-B812 Stuff Sack

Resources

User Guide

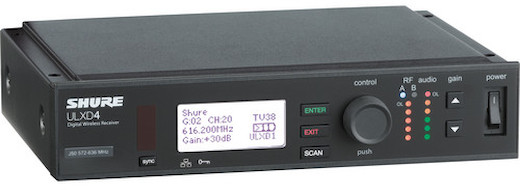

Shure ULXD4 Single-Channel Digital Wireless Receiver (H50)

The Shure ULXD4 Single-Channel Digital Wireless Receiver (H50) pairs up with the ULXD2 Transmitter to deliver high quality, clear audio across 60 transmission channels. Key features include:

(1) Ethernet port
64 MHz tuning range
Secure AES-256 encryption
Delivers 24-bit/48 kHz digital audio

Q & A

Does this rental include the rack-mount kit?

This rental doesn’t include the rack-mount kit. If you need it, please request it in the Special Instructions box during checkout and we’ll include it with your order at no additional charge.

Does this rental include an ethernet cable?

This rental doesn’t include an ethernet cable. If you need one, you can find some options here.

Can you only run one microphone through this item?

Yes, only one wireless ULX-D Wireless System transmitter may be paired with this receiver.

Specifications

Audio Type	Receiver
Brand	Shure
Dimensions	6.7 × 1.7 × 7.8″
Display	1x Backlit LCD (Battery Status, Channel, Group, Menu Navigation) 2x Multi-Segment LED (AF Level, Output Level, Peak)
General	Number of RF Channel Frequencies 2560 Diversity Antenna Diversity RF Frequency Band H50: 534 to 598 MHz RF Bandwidth 64 MHz Frequency Step Size 25 kHz RF Channel Scanning Auto-Scan Max Operating Range 328.1’ Max Transmitters per Band 60 Timecode Support No Mobile App Compatible Yes: Android & iOS App Name: ShurePlus Channels Functionality: Remote Control OS Compatibility Windows 10 or Later macOS 10.14 or Later Latency < 2.9 ms Modulation Proprietary
Housing	Steel
Item Type	Audio
Operating Temperature	0 to 122°F
Power	Power Requirements AC/DC Power Adapter AC/DC Power Adapter 15 VDC at 600 mA (Included) Input Power 100 to 240 VAC, 50 / 60 Hz at 250 mA DC Input Power 15 VDC at 600mA

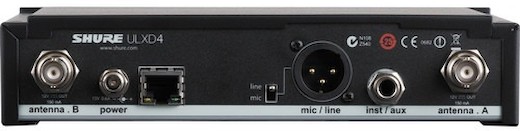

Receiver	Receiver Type Tabletop Mounting Options Rackmount, Tabletop (with Included Hardware) Rackmount Size 1 RU (1/2 Rack) Antenna 2x 1/2 Wave External, BNC (Rear-Mount) Antenna Bias Voltage 12 to 13 VDC, 150 mA (per Antenna) Number of Audio Channels 1 Built-In Microphone No Audio I/O 1x XLR 3-Pin Male Balanced Output 1x 1/4" TRS Female Balanced Output Gain Range -18 to +42 dB (1 dB Steps) Pad 30 dB Audio Output Level XLR Output: +18 dBV (Line Level) XLR Output: -12 dBV (Mic Level) 1/4" Output: +12 dBV (Consumer Level, Instrument Level) Phantom Power Protection On 1/4", XLR Outputs Frequency Response 30 Hz to 20 kHz ±1 dB (Dependent on Mic) Network I/O 1x RJ45 (10/100 Mb/s) Network Protocols DHCP, Manual IP USB Class-Compliant No USB Connectivity Standalone Audio Interface Capable No Impedance XLR Output: 100 Ohms (Balanced) Approximate RF Sensitivity -98 dBm Adjacent Channel Isolation >70 dB Spurious Rejection: >80 dB
Storage Temperature	-20 to 165°F
Supported I/O	TRS and XLR
Weight	2 lb
Wireless Capability	Yes
Wireless Range	0.0-328.0

See All

Includes

Shure ULXD4 Receiver (H50)
Shure PS43US Locking Barrel AC Adapter
(2) Shure UA8-518-598 Antenna 14"
Porta Brace PB-B812 Stuff Sack

Specifications

Audio Type	Receiver
Brand	Shure
Dimensions	6.7 × 1.7 × 7.8″
Display	1x Backlit LCD (Battery Status, Channel, Group, Menu Navigation) 2x Multi-Segment LED (AF Level, Output Level, Peak)
General	Number of RF Channel Frequencies 2560 Diversity Antenna Diversity RF Frequency Band H50: 534 to 598 MHz RF Bandwidth 64 MHz Frequency Step Size 25 kHz RF Channel Scanning Auto-Scan Max Operating Range 328.1’ Max Transmitters per Band 60 Timecode Support No Mobile App Compatible Yes: Android & iOS App Name: ShurePlus Channels Functionality: Remote Control OS Compatibility Windows 10 or Later macOS 10.14 or Later Latency < 2.9 ms Modulation Proprietary
Housing	Steel
Item Type	Audio
Operating Temperature	0 to 122°F
Power	Power Requirements AC/DC Power Adapter AC/DC Power Adapter 15 VDC at 600 mA (Included) Input Power 100 to 240 VAC, 50 / 60 Hz at 250 mA DC Input Power 15 VDC at 600mA
Receiver	Receiver Type Tabletop Mounting Options Rackmount, Tabletop (with Included Hardware) Rackmount Size 1 RU (1/2 Rack) Antenna 2x 1/2 Wave External, BNC (Rear-Mount) Antenna Bias Voltage 12 to 13 VDC, 150 mA (per Antenna) Number of Audio Channels 1 Built-In Microphone No Audio I/O 1x XLR 3-Pin Male Balanced Output 1x 1/4" TRS Female Balanced Output Gain Range -18 to +42 dB (1 dB Steps) Pad 30 dB Audio Output Level XLR Output: +18 dBV (Line Level) XLR Output: -12 dBV (Mic Level) 1/4" Output: +12 dBV (Consumer Level, Instrument Level) Phantom Power Protection On 1/4", XLR Outputs Frequency Response 30 Hz to 20 kHz ±1 dB (Dependent on Mic) Network I/O 1x RJ45 (10/100 Mb/s) Network Protocols DHCP, Manual IP USB Class-Compliant No USB Connectivity Standalone Audio Interface Capable No Impedance XLR Output: 100 Ohms (Balanced) Approximate RF Sensitivity -98 dBm Adjacent Channel Isolation >70 dB Spurious Rejection: >80 dB
Storage Temperature	-20 to 165°F
Supported I/O	TRS and XLR
Weight	2 lb
Wireless Capability	Yes
Wireless Range	0.0-328.0

See All

Resources

User Guide

Reviews

See Reviews

Rental Period	Lenscap+	Rental Price	Total Price	Price Per Day (Approx.)
3 days	$17.00	$62.00	$79.00	$26.33
4 days	$18.00	$67.00	$85.00	$21.25
7 days	$24.00	$89.00	$113.00	$16.14
10 days	$32.00	$120.00	$152.00	$15.20
14 days	$42.00	$156.00	$198.00	$14.14
21 days	$56.00	$209.00	$265.00	$12.62
30 days	$71.00	$263.00	$334.00	$11.13
45 days	$92.00	$343.00	$435.00	$9.67
60 days	$108.00	$401.00	$509.00	$8.48
90 days	$139.00	$516.00	$655.00	$7.28

Rental Period	Lenscap	Rental Price	Total Price	Price Per Day (Approx.)
3 days	$11.00	$62.00	$73.00	$24.33
4 days	$12.00	$67.00	$79.00	$19.75
7 days	$16.00	$89.00	$105.00	$15.00
10 days	$22.00	$120.00	$142.00	$14.20
14 days	$28.00	$156.00	$184.00	$13.14
21 days	$38.00	$209.00	$247.00	$11.76
30 days	$47.00	$263.00	$310.00	$10.33
45 days	$62.00	$343.00	$405.00	$9.00
60 days	$72.00	$401.00	$473.00	$7.88
90 days	$93.00	$516.00	$609.00	$6.77

Rental Period	Rental Price	Price Per Day (Approx.)
3 days	$62.00	$20.67
4 days	$67.00	$16.75
7 days	$89.00	$12.71
10 days	$120.00	$12.00
14 days	$156.00	$11.14
21 days	$209.00	$9.95
30 days	$263.00	$8.77
45 days	$343.00	$7.62
60 days	$401.00	$6.68
90 days	$516.00	$5.73
