SmallHD 5-inch 503 UltraBright On-Camera Monitor

$228.00

7 Day

Rental

Arrival Date

Return Date

Pricing Chart

Shipping Rates

Interested in purchasing?

Learn More

Includes

SmallHD 5-inch 503 Monitor
Mounting cage (installed)
(2) Sony NP-F970 batteries
Sony AC-VQ1051D charger
Polarized cable
D-Tap cable
Monitor arm
Redrock microMount
Hot shoe mount
Case

Resources

User's Manual

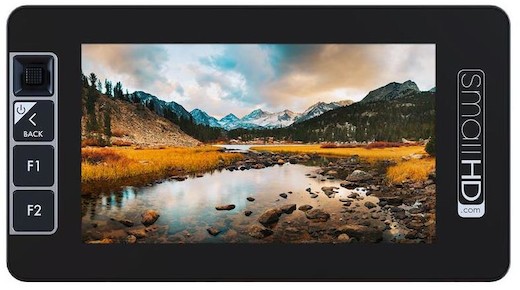

SmallHD 5-inch 503 UltraBright On-Camera Monitor

The SmallHD 5-inch 503 UltraBright On-Camera Monitor is a small and exceptionally bright monitor perfect for on-camera and gimbal use. Key features include:

2,200-nit brightness rating
High-definition 5-inch, 1920 × 1080 LCD monitor
HD scopes, exposure tools, frame guides, intuitive GUI
HDMI/SDI cross-conversion

Exceptionally Bright HD Monitor. The SmallHD 5-inch 503 UltraBright On-Camera Monitor’s 2,200-nit brightness means that you can use it in full sunlight. Its 10-bit, Full HD, 1920 × 1080 LCD monitor provides an extremely sharp image with a 441 PPI pixel density. Despite being an LCD, the 503 is able to produce 70% NTSC Color Gamut, rivaling the color capabilities of OLED technology.

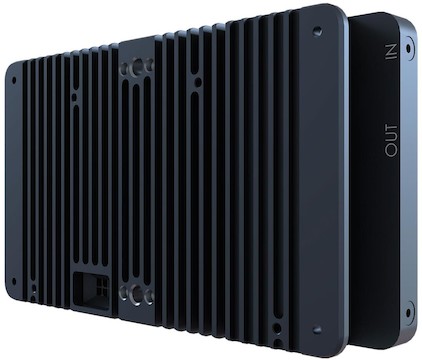

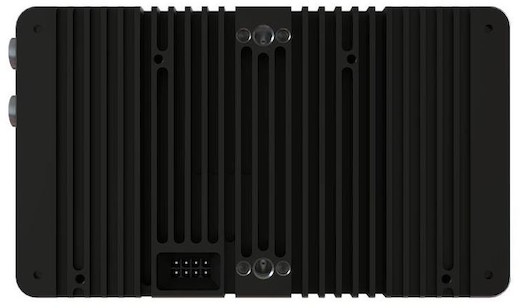

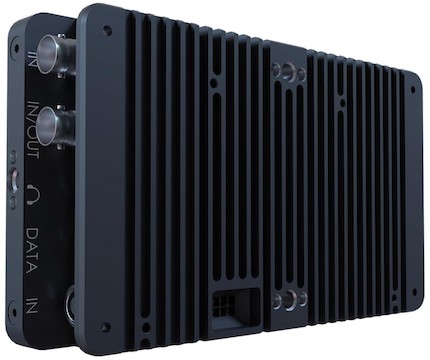

Compact and Lightweight. This 5-inch monitor is just over 1 inch thick and tips the scale at about just under 1 lb. pre-battery, making it perfect for small, lightweight rigs, and gimbal use. It features three 1/4-20 inch mounting points on the monitor itself (top, bottom, and back). Additionally, we include SmallHD’s Mounting Cage that adds multiple side mounting locations, 11-inch monitor arm, hot-shoe mount, and Redrock microMount to suit your needs.

Page Builder OS. Page Builder OS is the 503 LED’s intuitive GUI, which gives you quick access to all of the monitor’s advanced functions. It spares you the headache of menu diving by letting you selectively apply monitoring tools—such as waveform, vectorscope, multiview, LUTs, and focusing aids—on different “pages,” which you can easily cycle through with the joystick. Its Output Preview page lets you output LUTs and other image adjustments to downstream devices.

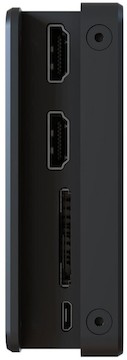

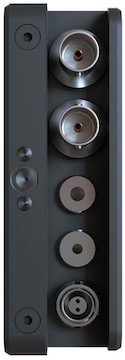

HDMI/SDI. This monitor has SDI and HDMI inputs and outputs that feature built-in cross conversion. Its Dual-View function, which allows either two SDI or an SDI and an HDMI input to be displayed side-by-side, is a serious advantage for A/B camera setups and for viewing LOG and DeLOG footage on-set.

Feature-Rich. This monitor’s built-in suite of tools includes 3D LUTs, focus aids, exposure aids, and HD waveforms and scopes.

Power Options. The SmallHD 503 accepts Sony L-Series batteries via its two battery bays. We include two Sony NP-F970 batteries and Sony AC-VQ1051D charger with the rental. Do note that this monitor does not accept an AC power source. However, we do include a 3-foot LEMO to D-Tap power cable if you’d prefer to use a big-battery solution rather than the bundled Sony L-series batteries.

Q & A

Does this rental include HDMI or SDI cables?

This rental doesn’t include HDMI or SDI cables. If you need HDMI/SDI cables, you can find them here.

Is this monitor compatible with Paralinx and ikan products?

This monitor is not compatible with Paralinx and ikan products.

Does this rental include an AC adapter?

This monitor does not accept an AC power source. However, we do include a 3-foot LEMO to D-Tap power cable if you’d prefer to use a big-battery solution rather than the bundled Sony L-series batteries.

Specifications

Aspect Ratio	16:9
Audio Input	1x 1/8" headphone jack
Brand	SmallHD
Brightness	2200 nits
Color Depth	10-bit
Color Gamut	70% NTSC
Contrast	1000:1
Depth	1.1"
Display Size	5.0"
HDMI	input, output
Height	3.4"
Input Signal	3G-SDI: YCC 4:2:2 at 10-bits: 1080p60, 1080p59.94, 1080p50, 1080i60, 1080i59.94, 1080i50 HD-SDI: YCC 4:2:2 at 10-bits: 1080p30, 1080p29.97, 1080p25, 1080p24, 1080p23.98, 1080psf30, 1080psf29.97, 1080psf25, 1080psf24, 1080psf23.98, 1080i60, 1080i59.94, 1080i50, 720p60, 720p59.94, 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98 SD-SDI: YCC 4:2:2 at 10-bits: 480i29.97, 576i25 HDMI: YCC 4:2:2 at 8 bits, 8/10/12 bit color in RGB & YCC 4:4:4: 1080p60, 1080p59.94, 1080p50, 1080p30, 1080p29.97 1080p25, 1080p24, 1080p23.98,1080i60, 1080i59.94, 1080i50, 1080i30, 1080i29.97, 1080i25, 720p120, 720p119.88, 720p100, 720p60, 720p59.94 , 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98, 480p120, 480p119.88, 480p60, 480p59.94, 576p100, 576p50, 480i240, 480i239.76, 480i120, 480i119.88, 480i60, 480i59.94, 480i30, 480i29.97, 480i24, 480i23.98, 576i200, 576i100, 576i50, 576i25 Audio: HDMI & SDI – Monitor through speakers in front bezel or through headphone jack; metering up to 8 channels
Item Type	Monitoring
Monitoring Type	Monitor
Output Signal	3G-SDI: YCC 4:2:2 at 10-bits: 1080p60, 1080p59.94, 1080p50, 1080i60, 1080i59.94, 1080i50 HD-SDI: YCC 4:2:2 at 10-bits: 1080p30, 1080p29.97, 1080p25, 1080p24, 1080p23.98, 1080psf30, 1080psf29.97, 1080psf25, 1080psf24, 1080psf23.98, 1080i60, 1080i59.94, 1080i50, 720p60, 720p59.94, 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98 SD-SDI: YCC 4:2:2 at 10-bits: 480i29.97, 576i25 HDMI: YCC 4:2:2 at 8 bits, 8/10/12 bit color in RGB & YCC 4:4:4: 1080p60, 1080p59.94, 1080p50, 1080p30, 1080p29.97 1080p25, 1080p24, 1080p23.98,1080i60, 1080i59.94, 1080i50, 1080i30, 1080i29.97, 1080i25, 720p120, 720p119.88, 720p100, 720p60,720p59.94 , 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98, 480p120, 480p119.88, 480p60, 480p59.94, 576p100, 576p50, 480i240, 480i239.76, 480i120, 480i119.88, 480i60, 480i59.94, 480i30, 480i29.97, 480i24, 480i23.98, 576i200, 576i100, 576i50, 576i25 Audio: HDMI & SDI – Incoming Audio Stream is sent downstream via HDMI or SDI connection
Pixel Density	443 PPI
Power Input	locking LEMO 2-pin connector
Recommended For	New Products and New Products
Resolution	1920 × 1080
SDI	3g input, 3g output and
Storage	SD Card for LUTs, Captured Images, Image Overlays, Firmware Upgrades, Profile Saving
USB Port	Micro USB
Viewing Angle	170° Typical
Weight	0.9 lb.
Width	6.2"
