SmallHD 702 Touch w/ Bolt 4K 750 TX Module

$196.00
/
7 Day

Rental

Includes

  • 702 Touch monitor
  • Bolt 4K 750 TX
  • (2) Antenna
  • HDMI adapter
  • D-tap cable

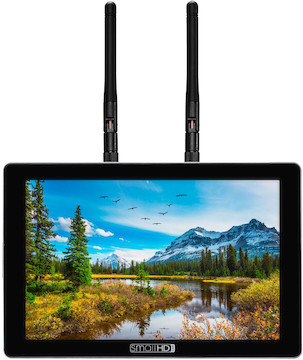

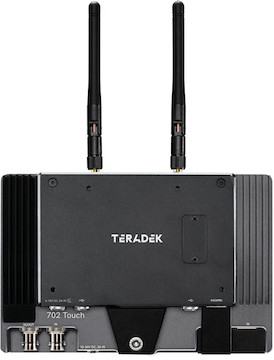

SmallHD 702 Touch w/ Bolt 4K 750 TX Module

The SmallHD 702 Touch w/ Bolt 4K 750 TX Module is a seamlessly integrated mid-range wireless monitor solution in the Bolt 4K / Smart 7 ecosystem. Key features include:

  • Transmit zero-delay 4K wireless video up to 750 feet line-of-sight

  • 7-inch, 1920 × 1200, 1500 cd/m² display

  • SmallHD software toolset w/ universal cross-compatibility between all Bolt 4K devices

  • Power not included

Read More

Q & A

  • There are too many wireless kits! Which one do I choose?
    • We have a variety of wireless kits available designed to fit into just about any workflow. The key differences are the monitor, the Bolt 4K Module, and the battery plate. Each receiver is compatible with each other and either of the transmitter options, but there are some limitations.

    • 702 Touch vs INDIE 7: These are the monitors the kits include, and while both are great options, there are a few notable differences. The 702 Touch is slightly more expensive, features a maximum brightness of 1500 nits, 8-Bit color depth, and a DCI-P3 color space. The INDIE 7 is slightly cheaper, but has a dimmer 1000 nits, 10-Bit color depth, and displays a more narrow range of colors.

    • Bolt 4K 1500’ vs 750’: The wireless ranges found on the Bolt 4K modules is rated for either 1500’ or 750’. Which one you choose will depend on how large of a venue you’ll be shooting in. If you’re in a larger space and aren’t sure exactly how far apart the transmitter and receiver will be, it might be safer to pick the larger ranged options. Keep in mind, even if you use a transmitter rated for 1500 feet, if the receiver is a 750’ model, it’ll won’t receive a signal from distances greater than 750 feet.

    • V-Mount vs Gold Mount: We offer each of these kits with either a V-mount battery plate or a gold mount battery plate. If you’re already using a specific type of battery for other parts of your workflow, it would be convenient to choose a kit with the compatible battery plate.

    • Directors Monitor vs Standard: We offer versions of these kits that include the SmallHD Handles and Neck Strap kit, if you wish to turn your monitor into a Director’s Monitor. If you don’t need these, choose the standard model.

    • Remember, each of these kits will work with each other, just make sure the distance between the transmitter and receiver does not exceed the range of the Bolt 4K module with the lowest rated distance.

  • How is this powered?
    • Power. This monitor can only be powered via the included d-tap cable and a d-tap power source (not included). No battery plate is included with this rental.

  • Does this rental include a support arm?
    • No. This rental does not include any additional mounting or support gear.

  • Does this rental include HDMI or SDI cables?
    • This rental doesn’t include HDMI or SDI cables. If you need them, you can find them here.

  • How many Bolt 4K receivers can be paired to one transmitter?
    • A Bolt 4K transmitter can send video to up to six receivers.

  • Specifications

    Brand

    SmallHD and Teradek

    Display

    Screen Type

    • 7“ IPS LCD
    Resolution
    • 1920 × 1200
    Pixel Density
    • 323 PPI
    Bit Depth
    • 8-bit display/12-bit color processing
    Brightness
    • 1500 nits

    Frequency Range

    Non-DFS Frequencies

    • 5.19 to 5.23 GHz
    • 5.75 to 5.79 GHz
    DFS Frequencies
    • 5.27 to 5.67 GHz

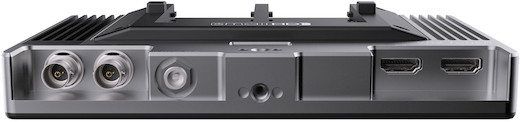

    Inputs/Outputs

    Video Inputs

    • 3G-SDI
    • HDMI Type A
    Video Outputs
    • 3G-SDIt
    • HDMI Type A
    3G-SDI Formats
    • 10-Bit 4:2:2 YCC
    • 1080p: 60/59.94/50/30/29.97/25/24/23.98
    • 1080PsF: 30/29.97/25/24/23.98
    • 1080i: 120/119.88/100/60/59.94/50
    • 720p: 60/59.94/50/30/29.97/25/24/23.98
    HDMI Formats
    • 8/10/12-Bit 4:4:4/4:2:2/4:2:0 RGB, YCC
    • RGB & YCC 4:4:4 @ 8/10/12-bits
    • 1080p: 60/59.94/50/30/29.97/25/24/23.98
    • 1080i: 720p: 120/119.88/100/60/59.94/50/30/29.97/25/24/23.98
    • 576p: 200/100/50
    • 480p: 240/239.76/120/119.88/60/59.94
    Additional Inputs/Outputs
    • ⅛” Headphone
    • Micro USB

    Item Type

    Monitoring

    Monitoring Type

    Wireless and Monitor

    Physical

    Dimensions

    • 7.09 × 4.67 × 1.29″
    Weight
    • 18.9 oz

    System

    Bolt 4K

    See All

    Includes

    • 702 Touch monitor
    • Bolt 4K 750 TX
    • (2) Antenna
    • HDMI adapter
    • D-tap cable

    Specifications

    Brand

    SmallHD and Teradek

    Display

    Screen Type

    • 7“ IPS LCD
    Resolution
    • 1920 × 1200
    Pixel Density
    • 323 PPI
    Bit Depth
    • 8-bit display/12-bit color processing
    Brightness
    • 1500 nits

    Frequency Range

    Non-DFS Frequencies

    • 5.19 to 5.23 GHz
    • 5.75 to 5.79 GHz
    DFS Frequencies
    • 5.27 to 5.67 GHz

    Inputs/Outputs

    Video Inputs

    • 3G-SDI
    • HDMI Type A
    Video Outputs
    • 3G-SDIt
    • HDMI Type A
    3G-SDI Formats
    • 10-Bit 4:2:2 YCC
    • 1080p: 60/59.94/50/30/29.97/25/24/23.98
    • 1080PsF: 30/29.97/25/24/23.98
    • 1080i: 120/119.88/100/60/59.94/50
    • 720p: 60/59.94/50/30/29.97/25/24/23.98
    HDMI Formats
    • 8/10/12-Bit 4:4:4/4:2:2/4:2:0 RGB, YCC
    • RGB & YCC 4:4:4 @ 8/10/12-bits
    • 1080p: 60/59.94/50/30/29.97/25/24/23.98
    • 1080i: 720p: 120/119.88/100/60/59.94/50/30/29.97/25/24/23.98
    • 576p: 200/100/50
    • 480p: 240/239.76/120/119.88/60/59.94
    Additional Inputs/Outputs
    • ⅛” Headphone
    • Micro USB

    Item Type

    Monitoring

    Monitoring Type

    Wireless and Monitor

    Physical

    Dimensions

    • 7.09 × 4.67 × 1.29″
    Weight
    • 18.9 oz

    System

    Bolt 4K

    See All
