SmallHD CINE 5 On-Camera Monitor and Power Kit

$200.00
/
7 Day

Rental

Pricing Chart
Shipping Rates

Interested in purchasing?

Includes

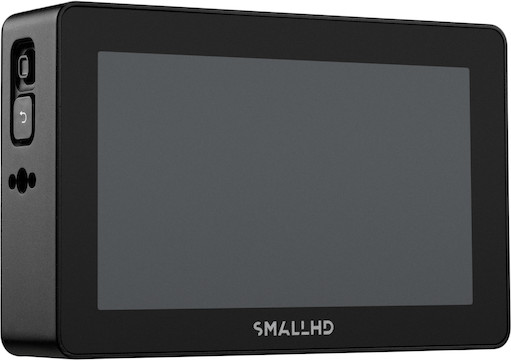

  • SmallHD CINE 5
  • Tilt arm

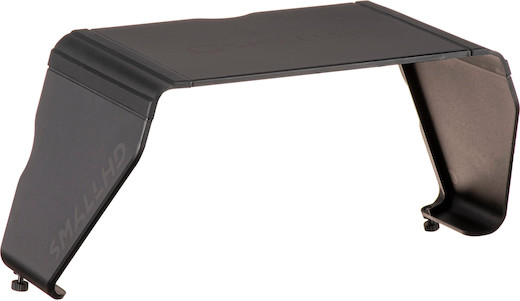

  • Sunhood

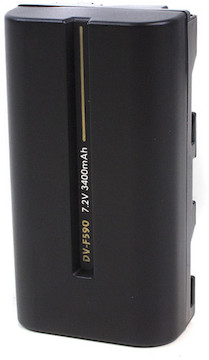

  • (2) Hawk-Woods DV-F590

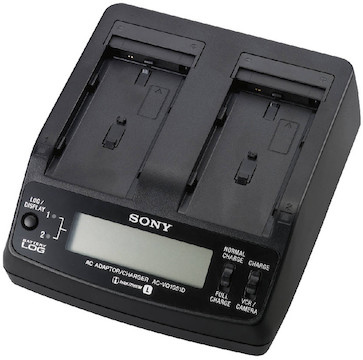

  • Sony AC-VQ1051D
  • Polarized Cable
  • Protective Case

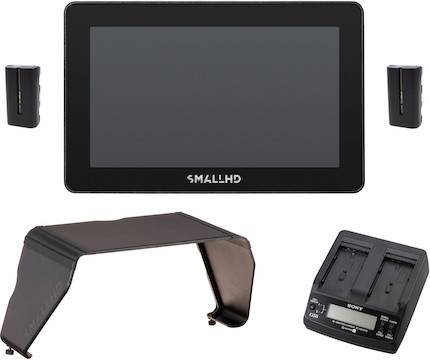

SmallHD CINE 5 On-Camera Monitor and Power Kit

The SmallHD CINE 5 Touchscreen On-Camera Monitor features a bright, LCD touchscreen for monitoring your camera, complete with a full power kit. Key features include:

  • Two batteries

  • Cine 5 monitor

  • Dual charger

  • Monitor sunhood

Read More

Q & A

  • Does this rental include an AC adapter?

    • This rental doesn’t come standard with an AC adapter or big-battery solution, but we offer both as separate rental items. See the Recommended section on your screen for options.

  • Does this rental include HDMI or SDI cables?

    • This rental doesn’t include HDMI or SDI cables. If you need HDMI/SDI cables, you can find them here.

    • Specifications

    Brand

    SmallHD
    Display

    Panel Type

    • LCD
    Display Size
    • 5.0"
    Resolution
    • 1920 × 1080
    Aspect Ratio
    • 16:9
    Touchscreen
    • Yes
    Maximum Brightness
    • 2000 cd/m2
    Bit Depth / Color Support
    • 10-Bit (1.07 Billion Colors)
    Pixels Per Inch (ppi)
    • 40 ppi
    Color Gamut
    • 100% DCI-P3
    Image Controls
    • Anamorphic De-Squeeze
    • False Color
    • Focus Peaking
    • Histogram
    • Pixel-to-Pixel Zoom
    • RGB Parade
    • Vectorscope
    • Waveform
    • Zebra
    Video I/O
    • 1 x HDMI 2.0 Input
    • 1 x HDMI 2.0 Loop Output
    • 1 x BNC (3G-SDI) Input
    • 1 x BNC (3G-SDI) Loop Output
    Embedded Audio
    • HDMI: 8-Channel
    • SDI: 8-Channel
    Audio I/O
    • 1 × 1/8" / 3.5 mm Headphone Output
    Built-In Speaker
    • None
    Power I/O
    • 1 x LEMO 2-Pin (34 VDC) Input
    Other I/O
    • 1 x LEMO 5-Pin 2.0 Output
    Media/Memory Card Slot
    • None
    Item Type

    Monitoring
    Monitoring Type

    Monitor
    Mounting

    4 × 1/4"-20 Female
    Physical

    Material

    • Aluminum
    Weight
    • 14.7 oz
    Video Format

    HDMI (8/10/12/16-Bit 4:4:4/4:2:2 YCC)

    • 1080p: 60/59.94/50/30/29.97/25/24/23.98
    • 1080i: 120/119.88/100/60/59.94/50
    • 720p: 120/119.88/100/60/59.94/50/30/29.97/25/24/23.98
    • 576p: 200/100/50
    • 480p: 240/239.76/120/119.88/100/60/59.94
    • 480i: 240/239.76/120/119.88/100/60/59.94
    • 576i: 200/100/50
    SDI (10-Bit 4:2:2 YCC)
    • 1080p: 60/59.94/50/30/29.97/25/24/23.98
    • 1080PsF: 30/29.97/25/24/23.98
    • 1080i: 120/119.88/100/60/59.94/50
    • 720p: 60/59.94/50/30/29.97/25/24/23.98
    • 576i: 50
    • 480i: 59.94
    Video Signal Conversion

    SDI to HDMI

    • UHD 4K: 30/29.97/25/24/23.98
    • 1080p: 119.88/100/60/59.94/50/30/29.97/25/24/23.98
    • 1080i: 120/119.88/100/60/59.94/50
    • 720p: 240/239.76
    HDMI to SDI
    • 1080p: 60/59.94/50/30/29.97/25/24/23.98
    • 1080i: 120/119.88/100
    • 720p: 60/59.94/50/30/29.97/25/24/23.98
    • 480i: 59.94
    • 576i: 50

    Includes

    • SmallHD CINE 5
    • Tilt arm
    • Sunhood
    • (2) Hawk-Woods DV-F590
    • Sony AC-VQ1051D
    • Polarized Cable
    • Protective Case

    Specifications

    Brand

    SmallHD
    Display

    Panel Type

    • LCD
    Display Size
    • 5.0"
    Resolution
    • 1920 × 1080
    Aspect Ratio
    • 16:9
    Touchscreen
    • Yes
    Maximum Brightness
    • 2000 cd/m2
    Bit Depth / Color Support
    • 10-Bit (1.07 Billion Colors)
    Pixels Per Inch (ppi)
    • 40 ppi
    Color Gamut
    • 100% DCI-P3
    Image Controls
    • Anamorphic De-Squeeze
    • False Color
    • Focus Peaking
    • Histogram
    • Pixel-to-Pixel Zoom
    • RGB Parade
    • Vectorscope
    • Waveform
    • Zebra
    Video I/O
    • 1 x HDMI 2.0 Input
    • 1 x HDMI 2.0 Loop Output
    • 1 x BNC (3G-SDI) Input
    • 1 x BNC (3G-SDI) Loop Output
    Embedded Audio
    • HDMI: 8-Channel
    • SDI: 8-Channel
    Audio I/O
    • 1 × 1/8" / 3.5 mm Headphone Output
    Built-In Speaker
    • None
    Power I/O
    • 1 x LEMO 2-Pin (34 VDC) Input
    Other I/O
    • 1 x LEMO 5-Pin 2.0 Output
    Media/Memory Card Slot
    • None
    Item Type

    Monitoring
    Monitoring Type

    Monitor
    Mounting

    4 × 1/4"-20 Female
    Physical

    Material

    • Aluminum
    Weight
    • 14.7 oz
    Video Format

    HDMI (8/10/12/16-Bit 4:4:4/4:2:2 YCC)

    • 1080p: 60/59.94/50/30/29.97/25/24/23.98
    • 1080i: 120/119.88/100/60/59.94/50
    • 720p: 120/119.88/100/60/59.94/50/30/29.97/25/24/23.98
    • 576p: 200/100/50
    • 480p: 240/239.76/120/119.88/100/60/59.94
    • 480i: 240/239.76/120/119.88/100/60/59.94
    • 576i: 200/100/50
    SDI (10-Bit 4:2:2 YCC)
    • 1080p: 60/59.94/50/30/29.97/25/24/23.98
    • 1080PsF: 30/29.97/25/24/23.98
    • 1080i: 120/119.88/100/60/59.94/50
    • 720p: 60/59.94/50/30/29.97/25/24/23.98
    • 576i: 50
    • 480i: 59.94
    Video Signal Conversion

    SDI to HDMI

    • UHD 4K: 30/29.97/25/24/23.98
    • 1080p: 119.88/100/60/59.94/50/30/29.97/25/24/23.98
    • 1080i: 120/119.88/100/60/59.94/50
    • 720p: 240/239.76
    HDMI to SDI
    • 1080p: 60/59.94/50/30/29.97/25/24/23.98
    • 1080i: 120/119.88/100
    • 720p: 60/59.94/50/30/29.97/25/24/23.98
    • 480i: 59.94
    • 576i: 50
