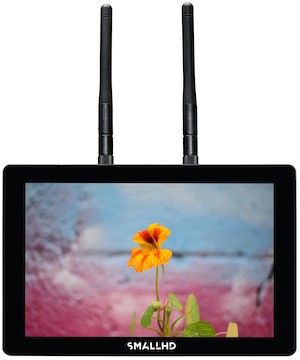

SmallHD INDIE 7 w/ Bolt 4K 750 TX Module

$172.00
/
7 Day

Rental

Includes

  • INDIE 7 monitor
  • Bolt 4K 750 TX module
  • (2) Antenna
  • HDMI adapter
  • D-tap cable

SmallHD INDIE 7 w/ Bolt 4K 750 TX Module

The SmallHD INDIE 7 w/ Bolt 4K 750 TX Module is a seamlessly integrated mid-range wireless monitor solution in the Bolt 4K / Smart 7 ecosystem. Key features include:

  • Transmit zero-delay 4K wireless video up to 750 feet line-of-sight

  • Rugged 7-inch 1920 × 1200, 1000 cd/m² display

  • SmallHD software toolset w/ universal cross-compatibility between all Bolt 4K devices

  • Power not included

Read More

Q & A

  • How is this powered?
    • Power. This monitor can only be powered via the included d-tap cable and a d-tap power source (not included). No battery plate is included with this rental.

  • Does this rental include a support arm?
    • No. This rental does not include any additional mounting or support gear.

  • Does this rental include HDMI or SDI cables?
    • This rental doesn’t include HDMI or SDI cables. If you need them, you can find them here.

  • How many Bolt 4K receivers can be paired to one transmitter?
    • A Bolt 4K transmitter can send video to up to six receivers.

  • Specifications

    Brand

    SmallHD and Teradek

    Display

    Screen Type

    • 7“ IPS LCD
    Resolution
    • 1920 × 1200
    Pixel Density
    • 323 PPI
    Bit Depth
    • 8-bit display/10-bit color processing
    Brightness
    • 1000 nits

    Frequency Range

    Non-DFS Frequencies

    • 5.19 to 5.23 GHz
    • 5.75 to 5.79 GHz
    DFS Frequencies
    • 5.27 to 5.67 GHz

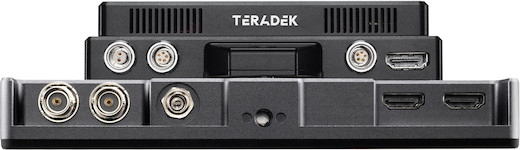

    Inputs/Outputs

    Video Inputs

    • 3G-SDI
    • HDMI Type A
    Video Outputs
    • 3G-SDI
    • HDMI Type A
    3G-SDI Formats
    • 10-Bit 4:2:2 RGB, YCC
    • UHD 4K: 30/29.97/24/23.98
    • 1080p: 60/59.94/50/30/29.97/25/24/23.98
    • 1080PsF: 30/29.97/25/24/23.98
    • 1080i: 120/119.88/100/60/59.94/50
    • 720p: 60/59.94/50/30/29.97/25/24/23.98
    HDMI Formats
    • 8/12-Bit 4:2:2 RGB, YCC
    • UHD 4K: 30/29.97/24/23.98
    • 1080p: 60/59.94/50/30/29.97/25/24/23.98
    • 1080i: 720p: 120/119.88/100/60/59.94/50/30/29.97/25/24/23.98
    • 576p: 200/100/50
    • 480p: 240/239.76/120/119.88/60/59.94
    Additional Inputs/Outputs
    • ⅛” Headphone
    • Micro USB

    Item Type

    Monitoring

    Monitoring Type

    Wireless and Monitor

    Physical

    Dimensions

    • 7.09 × 4.67 × 1.32″
    Weight
    • 26 oz (without battery)

    Video Format

    Bolt 4K 750 TX

    • UHD 4K: 30/29.97/25/24/23.98
    • 1080p: 60/59.94/50/30/29.97/25/24/23.98
    • 1080PsF: 30/29.97/25/24/23.98
    • 1080i: 60/59.94/50
    • 720p: 60/59.94/50
    • 576p: 50
    • 480p: 60/59.94
    • 576i: 50 480i: 59.94

    See All

    Includes

    • INDIE 7 monitor
    • Bolt 4K 750 TX module
    • (2) Antenna
    • HDMI adapter
    • D-tap cable

    Specifications

    Brand

    SmallHD and Teradek

    Display

    Screen Type

    • 7“ IPS LCD
    Resolution
    • 1920 × 1200
    Pixel Density
    • 323 PPI
    Bit Depth
    • 8-bit display/10-bit color processing
    Brightness
    • 1000 nits

    Frequency Range

    Non-DFS Frequencies

    • 5.19 to 5.23 GHz
    • 5.75 to 5.79 GHz
    DFS Frequencies
    • 5.27 to 5.67 GHz

    Inputs/Outputs

    Video Inputs

    • 3G-SDI
    • HDMI Type A
    Video Outputs
    • 3G-SDI
    • HDMI Type A
    3G-SDI Formats
    • 10-Bit 4:2:2 RGB, YCC
    • UHD 4K: 30/29.97/24/23.98
    • 1080p: 60/59.94/50/30/29.97/25/24/23.98
    • 1080PsF: 30/29.97/25/24/23.98
    • 1080i: 120/119.88/100/60/59.94/50
    • 720p: 60/59.94/50/30/29.97/25/24/23.98
    HDMI Formats
    • 8/12-Bit 4:2:2 RGB, YCC
    • UHD 4K: 30/29.97/24/23.98
    • 1080p: 60/59.94/50/30/29.97/25/24/23.98
    • 1080i: 720p: 120/119.88/100/60/59.94/50/30/29.97/25/24/23.98
    • 576p: 200/100/50
    • 480p: 240/239.76/120/119.88/60/59.94
    Additional Inputs/Outputs
    • ⅛” Headphone
    • Micro USB

    Item Type

    Monitoring

    Monitoring Type

    Wireless and Monitor

    Physical

    Dimensions

    • 7.09 × 4.67 × 1.32″
    Weight
    • 26 oz (without battery)

    Video Format

    Bolt 4K 750 TX

    • UHD 4K: 30/29.97/25/24/23.98
    • 1080p: 60/59.94/50/30/29.97/25/24/23.98
    • 1080PsF: 30/29.97/25/24/23.98
    • 1080i: 60/59.94/50
    • 720p: 60/59.94/50
    • 576p: 50
    • 480p: 60/59.94
    • 576i: 50 480i: 59.94

    See All
