SmallHD INDIE 7 w/ Bolt 6 LT 750 RX Module (Gold Mount)

$206.00

7 Day

Rental

Available 05/14/26

Renting this item will adjust your rental dates.

Arrival Date

Return Date

Pricing Chart

Shipping Rates

Interested in purchasing?

Includes

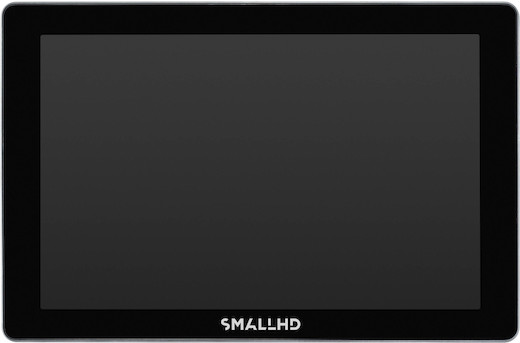

INDIE 7 Monitor

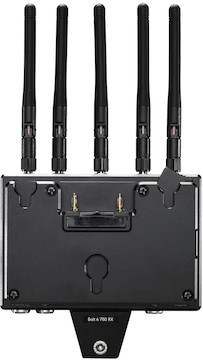

Bolt 6 Module 750 RX
Gold Mount Plate (Female)
2-pin LEMO D-Tap
5/8 Receiver w/ 1/4-20 Thread
Protective bag
HDMI Adapter
(5) Antennas

Resources

Indie 7 User Guide

SmallHD INDIE 7 w/ Bolt 6 LT 750 RX Module (Gold Mount)

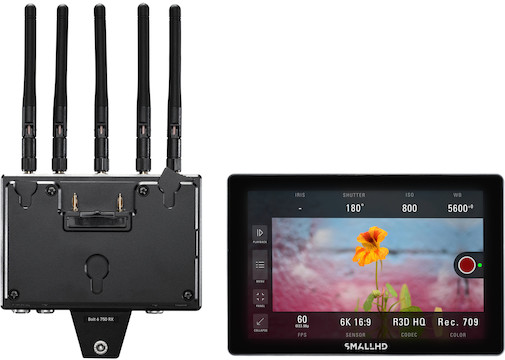

The SmallHD INDIE 7 w/ Bolt 6 LT 1500 TX Module consists of the SmallHD INDIE 7 and a Teradek Bolt 6 LT 750 RX Module (Gold Mount). Key features include:

Rugged 7 inch 1920 × 1200, 1000 cd/m² display

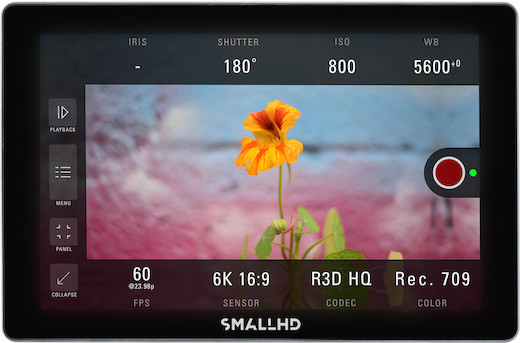

Assign scopes, overlays, and monitoring tools to swipeable pages
Receive from up to 750 feet away
Gold Mount plate included

Q & A

Is there a V-Mount version of this kit?

Totally! We have the SmallHD INDIE 7 w/ Bolt 6 LT 750 RX Module available for rent.

Does this rental include Gold Mount batteries?

Nah, just the power cables that are included with the kit & batteries for the monitor. If you need to add Gold Mount batteries to your rental, check out the recommended section of your screen.

Specifications

Brand	SmallHD
Display	Screen Type 7“ IPS LCD Resolution 1920 × 1200 Pixel Density 323 PPI Bit Depth 8-bit display/10-bit color processing Brightness 1000 nits
Inputs/Outputs	Video Inputs 3G-SDI HDMI Type A Video Outputs 3G-SDI HDMI Type A 3G-SDI Formats 10-Bit 4:2:2 RGB, YCC UHD 4K: 30/29.97/24/23.98 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080PsF: 30/29.97/25/24/23.98 1080i: 120/119.88/100/60/59.94/50 720p: 60/59.94/50/30/29.97/25/24/23.98 HDMI Formats 8/12-Bit 4:2:2 RGB, YCC UHD 4K: 30/29.97/24/23.98 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080i: 720p: 120/119.88/100/60/59.94/50/30/29.97/25/24/23.98 576p: 200/100/50 480p: 240/239.76/120/119.88/60/59.94 Additional Inputs/Outputs ⅛” Headphone Micro USB
Item Type	Monitoring & Recording
Monitoring & Recording Type	Monitor and Receiver
Network	Antennas 5 External 2 dBi antennas (included) Wireless Non-DFS Frequencies 5.190 ~ 5.230 GHz 5.755 ~ 5.795 GHz 5.945 ~ 6.425GHz DFS Frequencies 5.270 ~ 5.670 GHz Rf Channel Selection Auto, Manual Encryption AES-256, RSA-1024 key exchange Rf Power 21 dbm EIRP Range Up to 750 ft, line of sight Unicast Multicast Can connect one Transmitter to up to 6 Receivers Noise Rejection Can coexist with WiFi and 5GHz cordless phones Can operate up to 6 sets in same location Interoperability Can receive wireless video from all ranges of Bolt 4K XT and Bolt 4K LT transmitters (limited by shortest range device)
Physical	Dimensions 7.09 × 4.67 × 1.32″ Weight 18.9 oz (without battery)
Power	Power Input 2-Pin Circular locking Connector 6-18 VDC Battery None, optional Sony/Canon dual battery plate Nominal Power Consumption 6 Watts
Receiver	Supported Resolutions 4Kp23.98/24/25/29.97/30 1080p23.98/24/25/29.97/30/50/59.94/60 1080psf23.98/24/25/29.97/30 1080i50/59.94/60 720p50/59.94/60 480p50 576p59.94/60 480i(NTSC)/576i(PAL) Video Compression Visually Lossless Color Correction None Audio Compression 48kHz 24-bit PCM Audio Output Embedded HDMI Audio Output (2 Channel) Dimensions 122mm x 94mm x 27mm Weight 10.3oz Construction Milled Aluminum(Chassis) and regulation-compliant PCB Mountability SmallHD 7" Monitor Configuration Interfaces SmallHD Monitor UI Mobile App Bolt App Usb Interface Functionality SmallHD Monitor UI 2x 5pin Locking Connector CCU (Host) Bluetooth Via SmallHD Monitor

See All

Includes

INDIE 7 Monitor
Bolt 6 Module 750 RX
Gold Mount Plate (Female)
2-pin LEMO D-Tap
5/8 Receiver w/ 1/4-20 Thread
Protective bag
HDMI Adapter
(5) Antennas

Specifications

Brand	SmallHD
Display	Screen Type 7“ IPS LCD Resolution 1920 × 1200 Pixel Density 323 PPI Bit Depth 8-bit display/10-bit color processing Brightness 1000 nits
Inputs/Outputs	Video Inputs 3G-SDI HDMI Type A Video Outputs 3G-SDI HDMI Type A 3G-SDI Formats 10-Bit 4:2:2 RGB, YCC UHD 4K: 30/29.97/24/23.98 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080PsF: 30/29.97/25/24/23.98 1080i: 120/119.88/100/60/59.94/50 720p: 60/59.94/50/30/29.97/25/24/23.98 HDMI Formats 8/12-Bit 4:2:2 RGB, YCC UHD 4K: 30/29.97/24/23.98 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080i: 720p: 120/119.88/100/60/59.94/50/30/29.97/25/24/23.98 576p: 200/100/50 480p: 240/239.76/120/119.88/60/59.94 Additional Inputs/Outputs ⅛” Headphone Micro USB
Item Type	Monitoring & Recording
Monitoring & Recording Type	Monitor and Receiver
Network	Antennas 5 External 2 dBi antennas (included) Wireless Non-DFS Frequencies 5.190 ~ 5.230 GHz 5.755 ~ 5.795 GHz 5.945 ~ 6.425GHz DFS Frequencies 5.270 ~ 5.670 GHz Rf Channel Selection Auto, Manual Encryption AES-256, RSA-1024 key exchange Rf Power 21 dbm EIRP Range Up to 750 ft, line of sight Unicast Multicast Can connect one Transmitter to up to 6 Receivers Noise Rejection Can coexist with WiFi and 5GHz cordless phones Can operate up to 6 sets in same location Interoperability Can receive wireless video from all ranges of Bolt 4K XT and Bolt 4K LT transmitters (limited by shortest range device)
Physical	Dimensions 7.09 × 4.67 × 1.32″ Weight 18.9 oz (without battery)
Power	Power Input 2-Pin Circular locking Connector 6-18 VDC Battery None, optional Sony/Canon dual battery plate Nominal Power Consumption 6 Watts
Receiver	Supported Resolutions 4Kp23.98/24/25/29.97/30 1080p23.98/24/25/29.97/30/50/59.94/60 1080psf23.98/24/25/29.97/30 1080i50/59.94/60 720p50/59.94/60 480p50 576p59.94/60 480i(NTSC)/576i(PAL) Video Compression Visually Lossless Color Correction None Audio Compression 48kHz 24-bit PCM Audio Output Embedded HDMI Audio Output (2 Channel) Dimensions 122mm x 94mm x 27mm Weight 10.3oz Construction Milled Aluminum(Chassis) and regulation-compliant PCB Mountability SmallHD 7" Monitor Configuration Interfaces SmallHD Monitor UI Mobile App Bolt App Usb Interface Functionality SmallHD Monitor UI 2x 5pin Locking Connector CCU (Host) Bluetooth Via SmallHD Monitor

See All

Resources

Indie 7 User Guide

Reviews

See Reviews

Rental Period	Lenscap+	Rental Price	Total Price	Price Per Day (Approx.)
3 days	$38.00	$148.00	$186.00	$62.00
4 days	$41.00	$158.00	$199.00	$49.75
7 days	$54.00	$206.00	$260.00	$37.14
10 days	$73.00	$274.00	$347.00	$34.70
14 days	$95.00	$352.00	$447.00	$31.93
21 days	$127.00	$468.00	$595.00	$28.33
30 days	$159.00	$584.00	$743.00	$24.77
45 days	$208.00	$759.00	$967.00	$21.49
60 days	$243.00	$885.00	$1128.00	$18.80
90 days	$313.00	$1137.00	$1450.00	$16.11

Rental Period	Lenscap	Rental Price	Total Price	Price Per Day (Approx.)
3 days	$25.00	$148.00	$173.00	$57.67
4 days	$27.00	$158.00	$185.00	$46.25
7 days	$36.00	$206.00	$242.00	$34.57
10 days	$49.00	$274.00	$323.00	$32.30
14 days	$63.00	$352.00	$415.00	$29.64
21 days	$85.00	$468.00	$553.00	$26.33
30 days	$106.00	$584.00	$690.00	$23.00
45 days	$139.00	$759.00	$898.00	$19.96
60 days	$162.00	$885.00	$1047.00	$17.45
90 days	$209.00	$1137.00	$1346.00	$14.96

Rental Period	Rental Price	Price Per Day (Approx.)
3 days	$148.00	$49.33
4 days	$158.00	$39.50
7 days	$206.00	$29.43
10 days	$274.00	$27.40
14 days	$352.00	$25.14
21 days	$468.00	$22.29
30 days	$584.00	$19.47
45 days	$759.00	$16.87
60 days	$885.00	$14.75
90 days	$1137.00	$12.63
