SmallHD INDIE 7 w/ Bolt 6 LT 750 TX Module

$208.00

/

7 Day

Rental

Arrival Date

Return Date

Interested in purchasing?

Includes

INDIE 7 Monitor
Bolt 6 Module 750 TX
2-pin LEMO D-Tap
5/8 Receiver w/ 1/4-20 Thread
Protective bag
HDMI Adapter
(2) Antennas

Resources

Recommended:

SmallHD INDIE 7 w/ Bolt 6 LT 750 TX Module

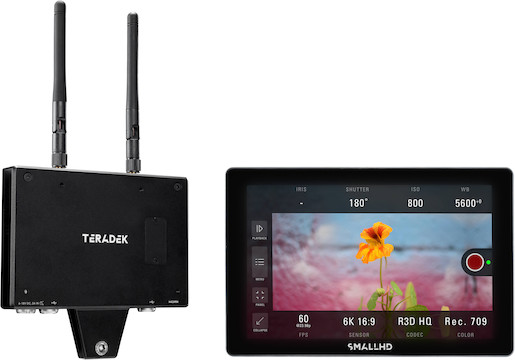

The SmallHD INDIE 7 w/ Bolt 6 LT 750 TX Module consists of the SmallHD INDIE 7 and a Teradek Bolt 6 LT 750 TX Module. Key features include:

Rugged 7-inch 1920 × 1200, 1000 cd/m² display
Assign scopes, overlays, and monitoring tools to swipeable pages
Transmit from up to 750 feet
Transmit UHD 4K30 to up to six compatible receivers

Specifications

Brand	SmallHD
Display	Screen Type 7“ IPS LCD Resolution 1920 × 1200 Pixel Density 323 PPI Bit Depth 8-bit display/10-bit color processing Brightness 1000 nits
Environmental	IP Rating None Operating Temperature 32 to 72°F
Format Support	Video Format HDMI (8/10-Bit 4:4:4/4:2:2 RGB) UHD 4K: 30/29.97/25/24/23.98 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080PsF: 30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50 576p: 50 480p: 60/59.94 576i: 50 480i: 59.94 Audio Format 2-Channel 24-Bit 48 kHz LPCM Audio Wireless Video Compression Uncompressed Timecode Support Yes
Inputs/Outputs	Antenna I/O 2 x RP-SMA Female Video I/O 1 x HDMI 1.4b Input Embedded Audio HDMI: 2-Channel Audio I/O None Power I/O 1 x LEMO 2-Pin (18 VDC) Input Other I/O 2 x LEMO 5-Pin Output Encryption 256-Bit AES
Item Type	Monitoring
Monitor	Video Inputs 3G-SDI HDMI Type A Video Outputs 3G-SDI HDMI Type A 3G-SDI Formats 10-Bit 4:2:2 RGB, YCC UHD 4K: 30/29.97/24/23.98 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080PsF: 30/29.97/25/24/23.98 1080i: 120/119.88/100/60/59.94/50 720p: 60/59.94/50/30/29.97/25/24/23.98 HDMI Formats 8/12-Bit 4:2:2 RGB, YCC UHD 4K: 30/29.97/24/23.98 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080i: 720p: 120/119.88/100/60/59.94/50/30/29.97/25/24/23.98 576p: 200/100/50 480p: 240/239.76/120/119.88/60/59.94 Additional Inputs/Outputs ⅛” Headphone Micro USB Dimensions 7.09 × 4.67 × 1.32″ Weight 18.9 oz (without battery)
Monitoring Type	Monitor
Physical	Material of Construction Aluminum, Plastic Dimensions 4.1 × 2.4 × 1.3″ Weight 7.3 oz
Power	DC Input Power 6 to 18 VDC Power Consumption 7 W
Wireless	Wireless Range 1500’ Channel Bandwidth 40 MHz Frequency Range Non-DFS Frequencies US: 5.94 to 6.42 GHz US: 5.19 to 5.23 GHz US: 5.75 to 5.79 GHz DFS Frequencies US: 5.27 to 5.67 GHz Latency 0 ms RF Power 23 dBm Wi-Fi None Bluetooth Yes

Includes

INDIE 7 Monitor
Bolt 6 Module 750 TX
2-pin LEMO D-Tap
5/8 Receiver w/ 1/4-20 Thread
Protective bag
HDMI Adapter
(2) Antennas

Specifications

Brand	SmallHD
Display	Screen Type 7“ IPS LCD Resolution 1920 × 1200 Pixel Density 323 PPI Bit Depth 8-bit display/10-bit color processing Brightness 1000 nits
Environmental	IP Rating None Operating Temperature 32 to 72°F
Format Support	Video Format HDMI (8/10-Bit 4:4:4/4:2:2 RGB) UHD 4K: 30/29.97/25/24/23.98 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080PsF: 30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50 576p: 50 480p: 60/59.94 576i: 50 480i: 59.94 Audio Format 2-Channel 24-Bit 48 kHz LPCM Audio Wireless Video Compression Uncompressed Timecode Support Yes
Inputs/Outputs	Antenna I/O 2 x RP-SMA Female Video I/O 1 x HDMI 1.4b Input Embedded Audio HDMI: 2-Channel Audio I/O None Power I/O 1 x LEMO 2-Pin (18 VDC) Input Other I/O 2 x LEMO 5-Pin Output Encryption 256-Bit AES
Item Type	Monitoring
Monitor	Video Inputs 3G-SDI HDMI Type A Video Outputs 3G-SDI HDMI Type A 3G-SDI Formats 10-Bit 4:2:2 RGB, YCC UHD 4K: 30/29.97/24/23.98 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080PsF: 30/29.97/25/24/23.98 1080i: 120/119.88/100/60/59.94/50 720p: 60/59.94/50/30/29.97/25/24/23.98 HDMI Formats 8/12-Bit 4:2:2 RGB, YCC UHD 4K: 30/29.97/24/23.98 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080i: 720p: 120/119.88/100/60/59.94/50/30/29.97/25/24/23.98 576p: 200/100/50 480p: 240/239.76/120/119.88/60/59.94 Additional Inputs/Outputs ⅛” Headphone Micro USB Dimensions 7.09 × 4.67 × 1.32″ Weight 18.9 oz (without battery)
Monitoring Type	Monitor
Physical	Material of Construction Aluminum, Plastic Dimensions 4.1 × 2.4 × 1.3″ Weight 7.3 oz
Power	DC Input Power 6 to 18 VDC Power Consumption 7 W
Wireless	Wireless Range 1500’ Channel Bandwidth 40 MHz Frequency Range Non-DFS Frequencies US: 5.94 to 6.42 GHz US: 5.19 to 5.23 GHz US: 5.75 to 5.79 GHz DFS Frequencies US: 5.27 to 5.67 GHz Latency 0 ms RF Power 23 dBm Wi-Fi None Bluetooth Yes
