Sony PXW-Z200 4K XDCAM

$245.00

7 Day

Rental

Arrival Date

Return Date

Pricing Chart

Shipping Rates

Interested in purchasing?

Includes

Sony PXW-Z200 4K XDCAM
Sony Microphone Holder
Sony ACDP-120D01 AC Adapter
Sony Z200 / NX800 LCD Hood
Sony Z200 / NX800 Hood
Sony Z200 / NX800 Mic Base
Sony BC-U1A Charger
Sony BP-U35 Battery
Non-Polarized Cable
Polarized Cable

Resources

Manual

Sony PXW-Z200 4K XDCAM

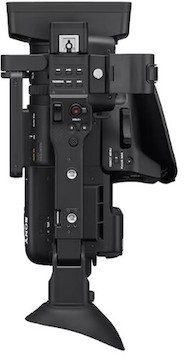

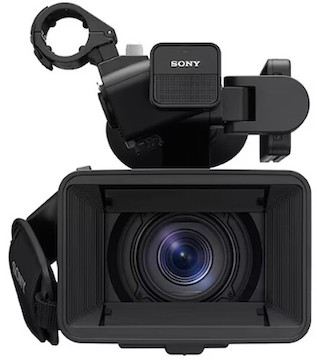

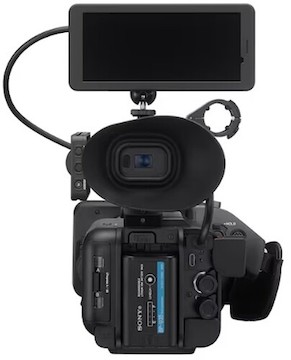

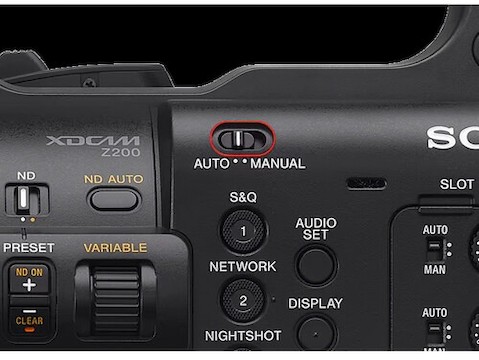

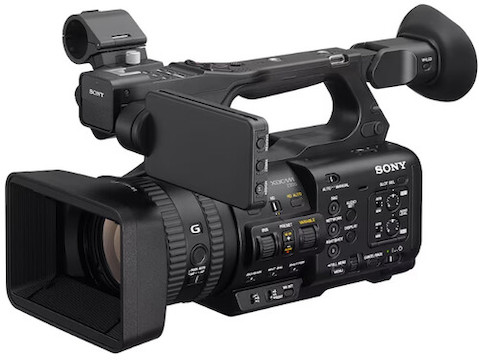

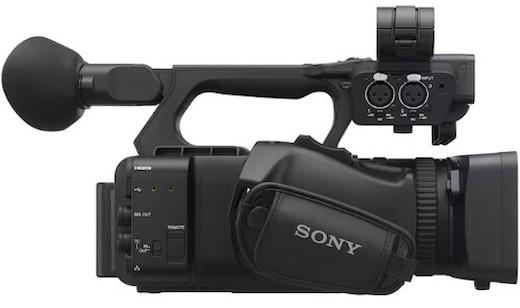

The Sony PXW-Z200 4K XDCAM is a professional, compact camcorder that delivers rapid autofocus, auto-framing, and content sharing. This model is an update to the PXW-Z190. Key features include:

Single 1" Exmor RS CMOS sensor
12G-SDI out, up to UHD 4K60 HDR with HLG
AI-powered autofocus & auto-framing
20x optical, 30x clear image zoom in 4K

Q & A

What are the main differences between the PXW-Z200 & HXR-NX800?

The Sony PXW-Z200 4K 1" CMOS Sensor XDCAM Camcorder supports 12G SDI and HDMI connection, as well as Timecode via BNC connection. The Sony HXR-NX800 4K HDR NXCAM only supports HDMI connection.

Specifications

Brand	Sony
Camera Type	Camcorder
Exposure Control	Shutter Type Electronic Rolling Shutter Shutter Speed 1/8000 to 64 Seconds ISO Sensitivity Range 250 to 16,000 Gain -3 to 36 dB Shutter Angle 5.6 to 360° Minimum Illumination 1.2 Lux White Balance 2000 to 15,000K Presets: ATW, Auto
External Video Recording Modes	SDI/BNC 3840 × 2160 at 23.98/25/29.97/50/59.94/100/120 fps 1920 × 1080p at 23.98/25/29.97/50/59.94/100/120 fps 1920 × 1080i at 50/59.94/100/120 fps 1920 × 1080PsF at 23.98/25/29.97 fps HDMI 3840 × 2160 at 23.98/25/29.97/50/59.94/100/120 fps 1920 × 1080p at 23.98/25/29.97/50/59.94/100/120 fps 1920 × 1080i at 25/29.97/50/59.94/100/120 fps
Focus	Focus Type Auto and Manual Focus Autofocus Points Phase Detection: 475
General	Operating Conditions 32 to 104°F Storage Conditions -4 to 140°F Battery Type Sony BP-U Series Power Consumption 20 W Shoe Mount 1x Intelligent Hot Shoe Dimensions (W x H x D) 6.9 × 7.9 × 14.63″ Weight 4.32 lb (Body Only)
IP Streaming	H.264, H.265, RTMP, RTMPS, SRT 3840 × 2160 at 50p, 59.94p (38.00 Mb/s) 3840 × 2160 at 23.98p, 25p, 29.97p (13.00 to 38.00 Mb/s) 1920 × 1080 at 50p, 59.94p (4.5 to 27.00 Mb/s) 1920 × 1080 at 23.98p, 25p, 29.97p (3.0 to 18.00 Mb/s) 1280 × 720 at 50p, 59.94p (2.3 to 13.5 Mb/s) 1280 × 720 at 23.98p, 25p, 29.97p (1.5 to 9.0 Mb/s)
Imaging	Sensor Resolution Actual: 20.9 Megapixel Effective: 14 Megapixel Image Sensor 13.2 × 8.8 mm (1"-Type) CMOS Image Stabilization Optical in Integrated Lens Digital Built-In ND Filter 2 to 7 Stop Electronic ND Filter Capture Type Video Only
Interface	Media/Memory Card Slot Dual Slot: CFexpress Type A / SD (UHS-II) Video I/O 1x BNC (12G-SDI) Output 1x HDMI (Unspecified Signal) Output Audio I/O 1x 1/8" / 3.5 mm TRS Stereo Input 2x XLR 3-Pin Input 1x 1/8" / 3.5 mm TRRS Headphone/Mic Headphone Output Power I/O 1x USB-C Other I/O 1x BNC (Timecode) Input/Output 1x 2.5 mm Sub-Mini (Remote) Control 1x RJ45 (LAN) Control 1x USB-C (USB 3.2 / 3.1 Gen 1) Wireless 2.4 / 5 GHz Wi-Fi 5 (802.11ac) Mobile App Compatible Yes: Android & iOS Global Positioning (GPS, GLONASS, etc.) No
Internal Video Recording Modes	XAVC HS-L 3840 × 2160 at 23.98/50/59.94/100/120 fps [30 to 280 Mb/s] XAVC S-L 3840 × 2160 at 23.98/25/29.97/50/59.94/100/120 fps [100 to 280 Mb/s] 1920 × 1080p at 23.98/25/29.97/50/59.94/100/120/150/180/200/240 fps XAVC S-I 3840 × 2160 at 23.98/25/29.97/50/59.94 fps [240 to 600 Mb/s] 1920 × 1080p at 23.98/25/29.97/50/59.94/100/120/150/180/200 fps
Item Type	Camera
Lens	Focal Length 7.71 to 154.21mm (35mm Equivalent: 24 to 480mm) Optical Zoom Ratio 20x Max Digital Zoom 1.5x ( in UHD 4K) 2x ( in 1080p) Maximum Aperture f/2.8 to 4.5 Minimum Focus Distance 0.4" Filter Size 72 mm Focus Control Autofocus Manual Focus
Monitor	Display Type Articulating Touchscreen LCD Display Size 3.5"
Mount	Fixed Lens
Video Capture	Fast-/Slow-Motion Support Yes Gamma Curve HDR-HLG, Rec709, S Cinetone, Sony S-Log 3 Broadcast Output NTSC/PAL Built-In Microphone Stereo Audio Recording 4-Channel 24-Bit 48 kHz LPCM Audio
Viewfinder	Type Built-In Electronic Size 0.39" Diopter Adjustment -4 to +3

See All

Includes

Sony PXW-Z200 4K XDCAM
Sony Microphone Holder
Sony ACDP-120D01 AC Adapter
Sony Z200 / NX800 LCD Hood
Sony Z200 / NX800 Hood
Sony Z200 / NX800 Mic Base
Sony BC-U1A Charger
Sony BP-U35 Battery
Non-Polarized Cable
Polarized Cable

Specifications

Brand	Sony
Camera Type	Camcorder
Exposure Control	Shutter Type Electronic Rolling Shutter Shutter Speed 1/8000 to 64 Seconds ISO Sensitivity Range 250 to 16,000 Gain -3 to 36 dB Shutter Angle 5.6 to 360° Minimum Illumination 1.2 Lux White Balance 2000 to 15,000K Presets: ATW, Auto
External Video Recording Modes	SDI/BNC 3840 × 2160 at 23.98/25/29.97/50/59.94/100/120 fps 1920 × 1080p at 23.98/25/29.97/50/59.94/100/120 fps 1920 × 1080i at 50/59.94/100/120 fps 1920 × 1080PsF at 23.98/25/29.97 fps HDMI 3840 × 2160 at 23.98/25/29.97/50/59.94/100/120 fps 1920 × 1080p at 23.98/25/29.97/50/59.94/100/120 fps 1920 × 1080i at 25/29.97/50/59.94/100/120 fps
Focus	Focus Type Auto and Manual Focus Autofocus Points Phase Detection: 475
General	Operating Conditions 32 to 104°F Storage Conditions -4 to 140°F Battery Type Sony BP-U Series Power Consumption 20 W Shoe Mount 1x Intelligent Hot Shoe Dimensions (W x H x D) 6.9 × 7.9 × 14.63″ Weight 4.32 lb (Body Only)
IP Streaming	H.264, H.265, RTMP, RTMPS, SRT 3840 × 2160 at 50p, 59.94p (38.00 Mb/s) 3840 × 2160 at 23.98p, 25p, 29.97p (13.00 to 38.00 Mb/s) 1920 × 1080 at 50p, 59.94p (4.5 to 27.00 Mb/s) 1920 × 1080 at 23.98p, 25p, 29.97p (3.0 to 18.00 Mb/s) 1280 × 720 at 50p, 59.94p (2.3 to 13.5 Mb/s) 1280 × 720 at 23.98p, 25p, 29.97p (1.5 to 9.0 Mb/s)
Imaging	Sensor Resolution Actual: 20.9 Megapixel Effective: 14 Megapixel Image Sensor 13.2 × 8.8 mm (1"-Type) CMOS Image Stabilization Optical in Integrated Lens Digital Built-In ND Filter 2 to 7 Stop Electronic ND Filter Capture Type Video Only
Interface	Media/Memory Card Slot Dual Slot: CFexpress Type A / SD (UHS-II) Video I/O 1x BNC (12G-SDI) Output 1x HDMI (Unspecified Signal) Output Audio I/O 1x 1/8" / 3.5 mm TRS Stereo Input 2x XLR 3-Pin Input 1x 1/8" / 3.5 mm TRRS Headphone/Mic Headphone Output Power I/O 1x USB-C Other I/O 1x BNC (Timecode) Input/Output 1x 2.5 mm Sub-Mini (Remote) Control 1x RJ45 (LAN) Control 1x USB-C (USB 3.2 / 3.1 Gen 1) Wireless 2.4 / 5 GHz Wi-Fi 5 (802.11ac) Mobile App Compatible Yes: Android & iOS Global Positioning (GPS, GLONASS, etc.) No
Internal Video Recording Modes	XAVC HS-L 3840 × 2160 at 23.98/50/59.94/100/120 fps [30 to 280 Mb/s] XAVC S-L 3840 × 2160 at 23.98/25/29.97/50/59.94/100/120 fps [100 to 280 Mb/s] 1920 × 1080p at 23.98/25/29.97/50/59.94/100/120/150/180/200/240 fps XAVC S-I 3840 × 2160 at 23.98/25/29.97/50/59.94 fps [240 to 600 Mb/s] 1920 × 1080p at 23.98/25/29.97/50/59.94/100/120/150/180/200 fps
Item Type	Camera
Lens	Focal Length 7.71 to 154.21mm (35mm Equivalent: 24 to 480mm) Optical Zoom Ratio 20x Max Digital Zoom 1.5x ( in UHD 4K) 2x ( in 1080p) Maximum Aperture f/2.8 to 4.5 Minimum Focus Distance 0.4" Filter Size 72 mm Focus Control Autofocus Manual Focus
Monitor	Display Type Articulating Touchscreen LCD Display Size 3.5"
Mount	Fixed Lens
Video Capture	Fast-/Slow-Motion Support Yes Gamma Curve HDR-HLG, Rec709, S Cinetone, Sony S-Log 3 Broadcast Output NTSC/PAL Built-In Microphone Stereo Audio Recording 4-Channel 24-Bit 48 kHz LPCM Audio
Viewfinder	Type Built-In Electronic Size 0.39" Diopter Adjustment -4 to +3
