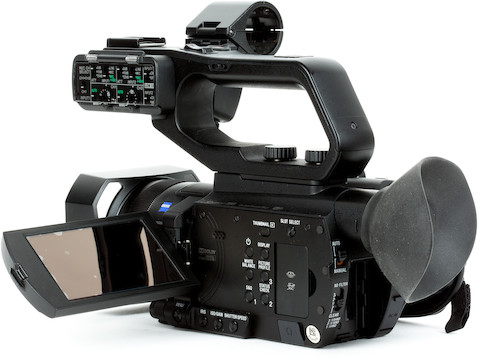

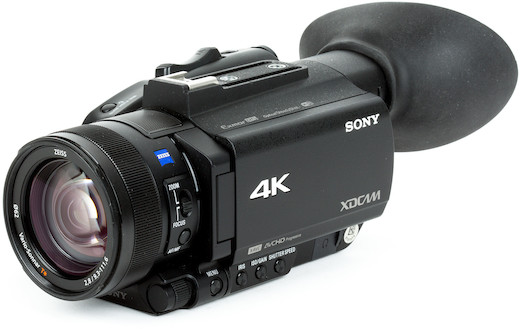

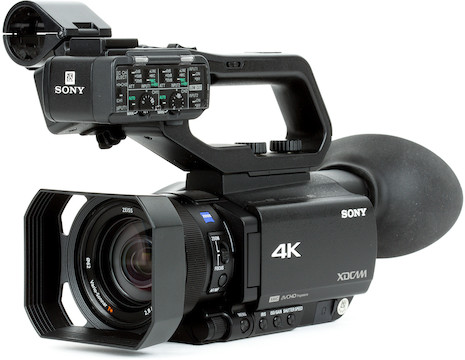

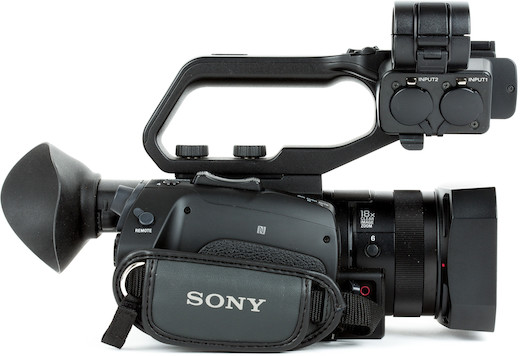

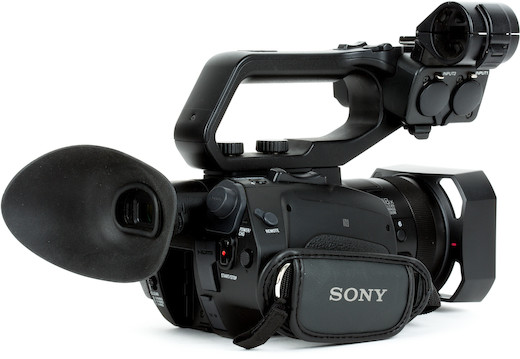

The Sony PXW-Z90V 4K HDR XDCAM is a compact, professional-grade UHD 4K video camera with a fast hybrid autofocus system. It’s a step up from the PXW-X70 4K XDCAM. Key features include:
1" 14.2MP 4K UHD CMOS sensor
29-348mm F/2.8-4.5 12x optical zoom lens
Capture 4:2:0 4K UHD up to 100 Mbps or 4:2:2 HD up to 50 Mbps
In General
This is the camcorder we recommend the most to novices and semi-pros who want the best image with the simplest setup. It has both HDMI and SDI outputs for easy integration into just about any shoot...
This camera can’t record 4K footage to memory cards smaller than 64GB.

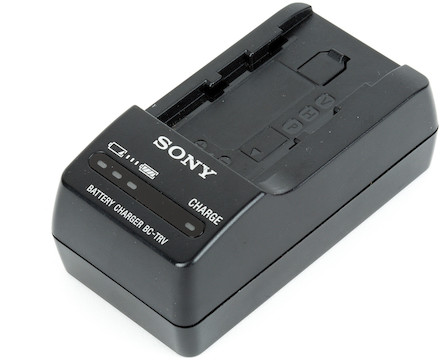

Battery | Compatibility
|
Brand | Sony |
Built-in ND Filter | Clear, 1/4, 1/16, 1/64 |
Camera Type | Camcorder |
DC Input | DC jack |
Dimensions | 5.1″ × 7.1″ × 11.3″ |
Inputs/Outputs | Video Outputs
|
Item Type | Camera |
Lens | Wide-Angle: 29mm (35mm equivalent) |
Mount | Fixed Lens |
Power Requirements | DC In: 8.4 V; Battery: 7.4 V |
Remote | Integrated multi/micro-USB jack; Stereo mini-jack (2.5 mm Φ) |
Sensor | 1.0"-type (13.2 mm x 8.8 mm), back-illuminated Exmor RS CMOS sensor |
Shutter Speed | 60i: 1/8 – 1/10,000; 50i: 1/6 -1/10,000; 24p: 1/6 – 1/10,000 |
USB | (1) Multi/micro-USB |
Video Formats | XAVC QFHD: MPEG-4 AVC/H.264 4:2:0 Long profile; XAVC HD: MPEG-4 AVC/H.264 4:2:2 Long profile; XAVC Proxy: MPEG-4 AVC/H.264 4:2:0 Long profile; MPEG HD422 (CBKZ-SLMP required): MPEG-2 422P at HL 4:2:2 Long profile; MPEG HD420 (CBKZ-SLMP required): MPEG-2 MP at HL 4:2:0 Long profile; MPEG HD Proxy (CBKZ-SLMP required): MPEG-4 AVC/H.264 4:2:0 Long profile; AVCHD: MPEG-4 AVC/H.264 AVCHD 2.0 format-compatible |
Video Output | (1) Multi/micro-USB; (1) Composite, 1.0 Vpp, 75 Ohms |
Viewfinder | Size
|
Weight | 2.2 lbs. |
White Balance | Preset Indoor: 3200K Outdoor: 5600K ±7 steps Color Temperature Set Range: 2300-15,000K; Onepush A, B, Auto-selectable |
Wi-Fi | 2.4, 5 GHz |
Zoom Ratio | Optical: 12x; Clear Image Zoom: 18x (4K) / 24x (HD); Digital Extender: 48x (HD) |
